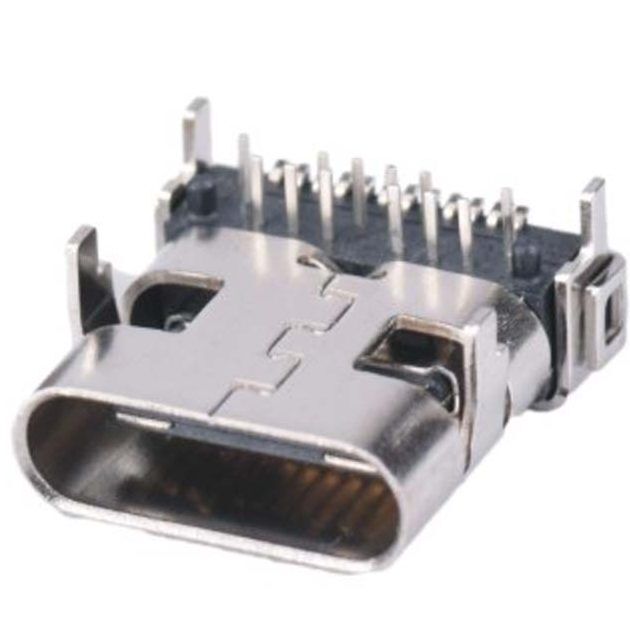

USB C Female Rev 3.1 R/A SMT+dip Type 24P
USB C Female Rev 3.1 R/A SMT+dip Type 24P
  • USB C Female Rev 3.1 R/A SMT+dip Type 24P

  • Part No : UBSR31H1-24SG
  • Specifications
    Current Rating:5.0A AC/DC
    Voltage Ratinge:100V AC/DC
    Contact Resistance:40m ohm. Max
    Insulation Resistance:100Mohm min
    Withstanding Voltage:100V(r.m.s) For one Minute
    Operating Temperature Range:-40°C ~ +85°C
    Insulator:High Temp. Plastic(LCP UL94V-0)
    Conact :Copper Alloy

    Plated:Selective Gold Plated

    Shell:Srainless,Nickel Plated 30~50u”

  • Inquiry now
  • Products Drawing

Detailed description

USB C Female is a universal, versatile, and reversible interface designed for the next generation of USB technology.

Upgrade your electronic devices with our cutting-edge USB-C Female Connector, featuring Revision 3.1 technology for lightning-fast data transfer and power delivery. This Right-Angle (R/A) Surface Mount Technology (SMT) combined with Dual In-line Package (DIP) design ensures seamless integration into your circuit boards, providing both efficiency and reliability.

Key Features:

  • High-Speed Data Transfer: Benefit from USB 3.1 capabilities for swift and efficient data transmission.
  • Power Delivery: Support power-hungry devices with enhanced charging capabilities through the USB-C connector.
  • Space-Saving Design: Right-Angle configuration and DIP technology optimize space utilization on your circuit boards.
  • 24 Pins Configuration: Ensure compatibility with a wide range of devices and applications.


  • Ideal for smartphones, laptops, tablets, and various electronic devices requiring USB-C connectivity.
  • Suitable for manufacturers and DIY enthusiasts seeking a reliable and space-efficient USB-C solution.

Technical Specifications:

  • Connector Type: USB-C Female
  • Revision: 3.1
  • Configuration: Right-Angle (R/A) SMT+DIP Type
  • Pin Count: 24

Upgrade your devices with the latest USB-C technology. Order our USB-C Female Connector 3.1 R/A SMT+DIP Type 24P today for enhanced connectivity and performance.
