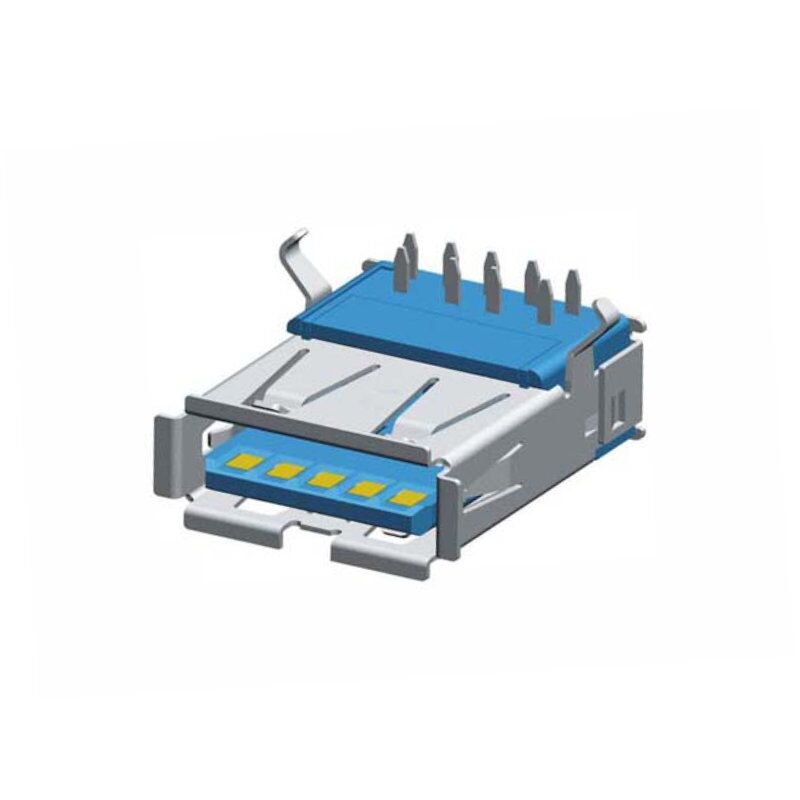

USB A Female Rev 3.0 R/A Dip Type 9P
USB A Female Rev 3.0 R/A Dip Type 9P
  • USB A Female Rev 3.0 R/A Dip Type 9P

  • Part No : UBSAR-09
  • Specifications
    Current Rating:1.5A AC/DC
    Voltage Ratinge:30V AC/DC
    Contact Resistance:30m ohm. Max
    Insulation Resistance:1000Mohm min
    Withstanding Voltage:600V(r.m.s) For one Minute
    Operating Temperature Range:-40°C ~ +85°C
    Insulator:High Temp. Plastic(LCP UL94V-0)
    Conact :Copper Alloy

    Plated:Selective Gold Plated

    Shell:SPCC,Nickel Plated 30~50u”

  • Inquiry now
  • Products Drawing

Detailed description

USB A Female Rev 3.0 Right-Angle DIP Type 9P Connector: Next-Level Connectivity

Introducing our USB A Female Rev 3.0 Right-Angle DIP Type 9P Connector – a state-of-the-art solution designed to elevate your connectivity experience. With advanced features including USB 3.0 technology, a right-angle orientation, and a 9-pin configuration, this connector brings next-level performance to electronic applications. Let’s delve into the standout features that make this connector the epitome of cutting-edge connectivity:

1. USB 3.0 Technology:

  • Embrace the speed of USB 3.0, as this connector supports the latest in USB technology. USB 3.0 ensures lightning-fast data transfer rates, making it ideal for applications that demand high-speed and efficient communication.

2. Right-Angle DIP Design for Space Optimization:

  • Featuring a right-angle DIP design, this connector optimizes space on printed circuit boards (PCBs). It not only contributes to efficient space utilization but also enhances the overall layout of electronic devices, especially those with space constraints.

3. 9-Pin Configuration for Versatile Connectivity:

  • The 9-pin configuration of this USB A Female Connector provides versatile connectivity options. The strategically arranged pins ensure efficient data transfer and robust power delivery, catering to diverse electronic applications.

4. High-Speed Data Transfer Capabilities:

  • With USB 3.0 capabilities, this connector excels in facilitating high-speed and reliable data transmission. It ensures seamless communication between host devices and connected peripherals, enhancing overall performance.

5. Efficient Power Delivery:

  • Beyond data transfer, this connector stands out in power delivery efficiency. Its advanced design enables the efficient supply of power to connected peripherals, eliminating the need for separate power cables in many instances.

6. Right-Angle DIP for Neat Cable Management:

  • The right-angle DIP design not only optimizes space but also facilitates neat and organized cable management. This contributes to an aesthetically pleasing device layout while simplifying the overall design process.

7. Robust Build for Long-Term Reliability:

  • Crafted from high-quality materials, this connector is built to withstand frequent insertions and removals. Its robust construction ensures long-term reliability, making it a durable solution for various electronic applications.

8. Standardized Pin Configuration for Compatibility:

  • Following a standardized pin configuration ensures compatibility across different devices and systems. This standardization streamlines the integration of this USB A Female Connector into a multitude of electronic products.

9. Versatile Applications Across Industries:

  • Suited for a variety of applications across industries, from consumer electronics to industrial equipment, this connector’s advanced features make it an essential component. Manufacturers seeking high-performance USB 3.0 connectivity will find this connector an ideal choice.

10. Future-Ready Connectivity: – With USB 3.0 capabilities, this connector is future-ready, ensuring your devices stay at the forefront of technology. It accommodates the growing demands for faster data transfer and improved connectivity standards.

Upgrade your electronic designs with our USB A Female Rev 3.0 Right-Angle DIP Type 9P Connector, combining advanced technology, space optimization, and reliability. Experience seamless integration and elevated performance in your electronic products. Order now to stay ahead in the dynamic world of connectivity.
