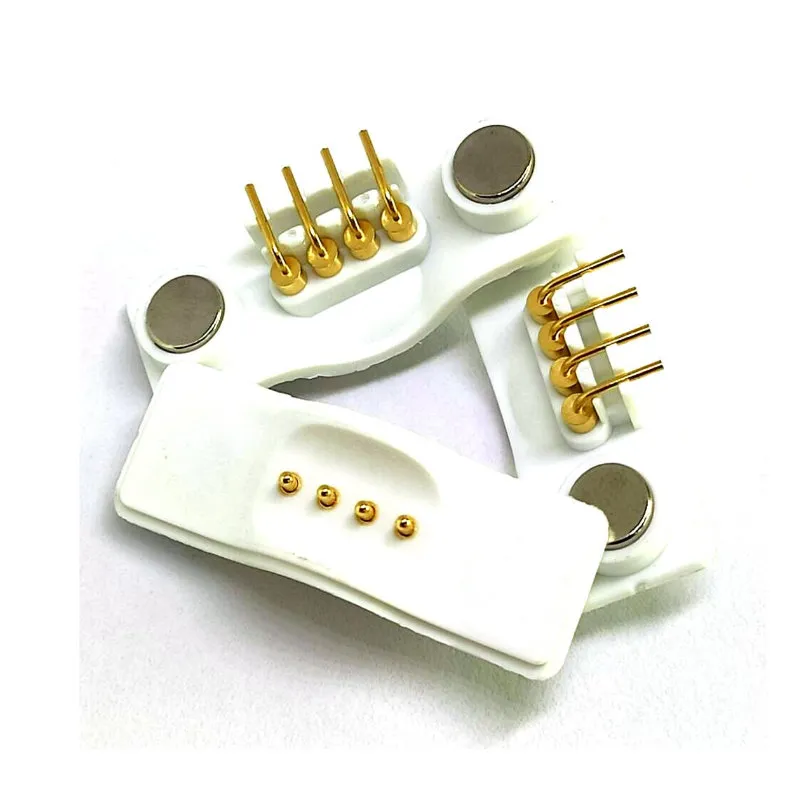

Custom 2.5mm  4 Pin Magnetic Absorption Female Pogo Pin For Handyblock
Custom 2.5mm  4 Pin Magnetic Absorption Female Pogo Pin For Handyblock
  • Custom 2.5mm 4 Pin Magnetic Absorption Female Pogo Pin For Handyblock

  • Part No : PGAR254-04G-MG
  • 1.Material
       Plunger: Brass 3604
       Barrel: Brass 3604
       Spring: SUS304
       Housing:PA46
    2.Plating
       Plunger: 1u” Au over 50~100 micro-inch nickel
       Barrel:  1u” Au over 50~100 micro-inch nickel
     3.Electrical
       Rated current & voltage: DC 12V; 3.0A Max.
       Contact resistance: 50 mohm maximum at normal working height(quiescence)


  • Inquiry now
  • Products Drawing

Detailed description


Spring-loaded battery connectors ensure a reliable electrical connection between the battery and the device’s power circuit, allowing for the smooth and efficient operation of battery-powered devices.

Pogo pin is a kind of spring probe formed by riveting and preloading three basic components of needle shaft, spring and needle tube through precision instrument.

There is a precision spring structure inside. The surface coating of Pogo pin is generally gold-plated. It can improve its corrosion protection function, mechanical properties, electrical properties and so on. The needle tip has pointed needle, grasping needle, round needle, knife needle and so on.

Pogo pin is generally used in mobile phone, communication, automobile, medical treatment, aerospace and other electronic products, which can improve the corrosion resistance, stability and durability of these connectors. Because pogo pin is a very fine probe, it can reduce the weight and appearance volume of the connector in precision connector, and make the connector more fine and beautiful.
