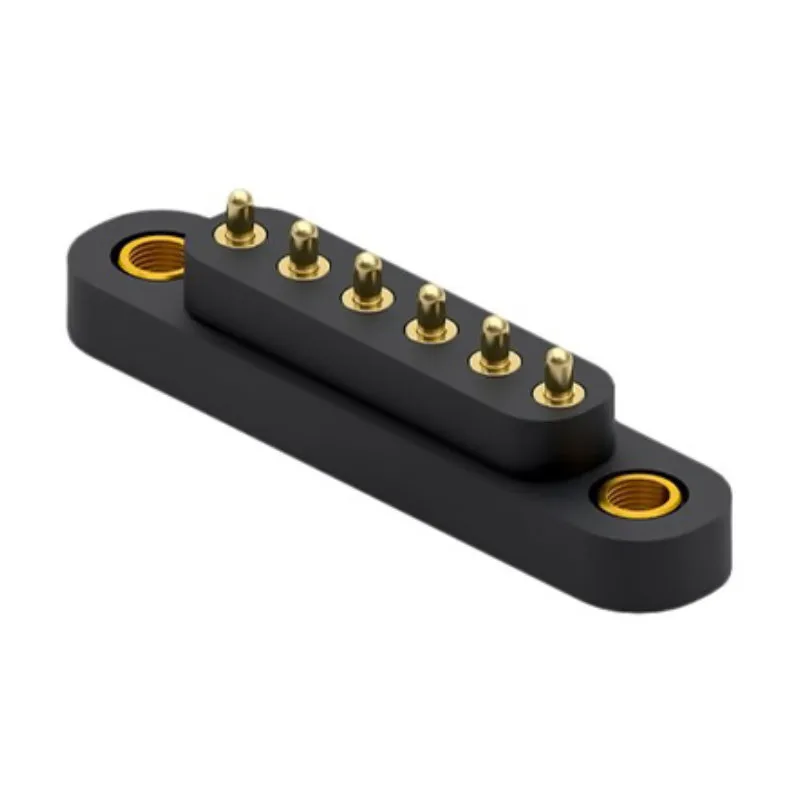

For Mill-Max 858-22-006-30-011101, 4.00mm Pitch Spring-Loaded Header
- Part No : PGPA40-06G-NUT
-
Temperature Range:- 55° C To +125° C
Rated Voltage: 100 VRMS/150 VDC
Insulation Resistance: 10,000 MΩ min.
Dielectric Withstanding Voltage: 1,000 VRMS min.
Materials
Loose Pin/Receptacle #(Material): Brass Alloy
Shell Plating: 20μ” Gold over Nickel
Inner Plating: (Spring) 10μ” Gold
Insulator Material: Nylon 4/6
- Inquiry now
Detailed description
Spring Loaded header are precision-engineered mechanical devices that leverage the elastic properties of springs to provide reliable connection and operational solutions for a variety of applications.
| Connector Type | Spring-Loaded Connector |
| Description |
Spring-Loaded Connector, 4.00mm Pitch, Single Row, 06 Circuits, Rugged Vertical Mount SMT |
| Number of Positions | 06 |
| Samples | Yes |
Spring Loaded（also called POGO PIN）are designed mechanical devices that utilize the energy storage and release of springs to provide reliable connection and operational solutions for various applications.
These products are highly versatile and can be applied across an array of domains including electronic devices, industrial automation, and automotive components. For example, they can be used for touch buttons in electronic devices, component connections in industrial machinery, and seat adjustments in vehicles.
