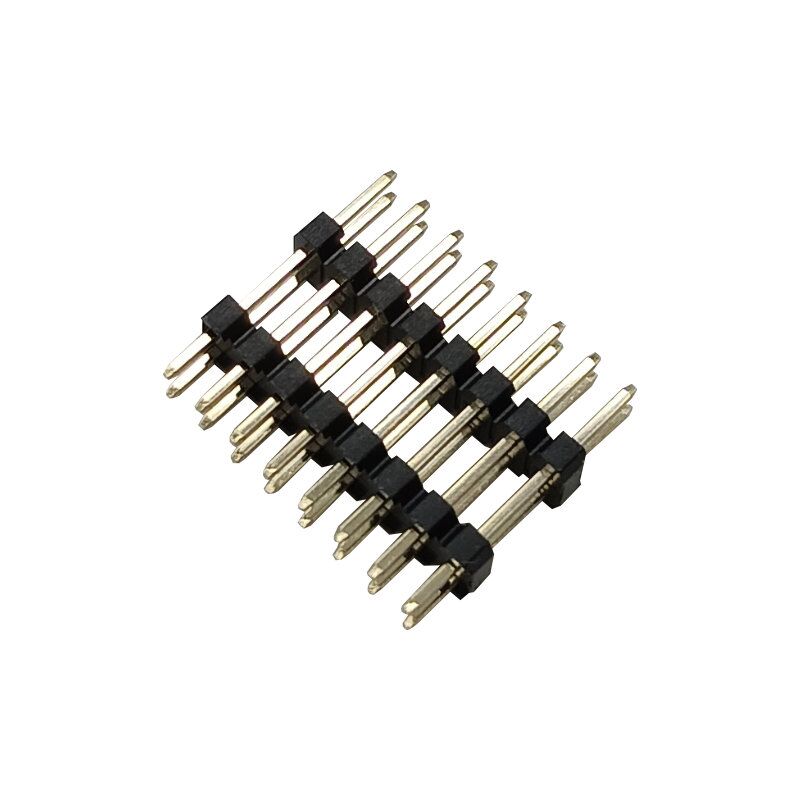

stacking header male 2.0mm pitch SAMTEC TW-08-03-F-D-290-105
stacking header male 2.0mm pitch SAMTEC TW-08-03-F-D-290-105

  • stacking header male 2.0mm pitch SAMTEC TW-08-03-F-D-290-105

  • Part No : PHDI20-16G-1360A

  • Current Rating:3.0A AC DC

    Voltage Rating:250V AC.DC

    Contact resistance:20m ohm. Max

    INSULATION RESISTANCE:1000m ohm Min

    Withstanding Volatge:600V AC for one minute

    Operating Temperature:-40°C-105°C

    Insulator:High Temp. Plastic PBT UL94V-0

    Insulator color:Black

    Contact:Copper Alloy

    Plating:Gold  plated,Tin plated


  • Inquiry now
  • Products Drawing

Detailed description


Melissa Lee

Email:sales05@dghoyato.com
Skype:limiao425

Phone/Whatsapp:86-13337908889

2×8 stacking header male 2.0mm pitch 7.36mm stack 1.5mm insulator for SAMTEC TW-08-03-F-D-290-105

Connector Type
Pin header
Orginal P/N
 PHDI20-16G-1360A
Pitch – Mating
2.0mm
Total Length
 13.6MM
Number of rows
2
Flammability
94V-0
Row Option
Through Hole Pin Header
Insulation
Double

Pin headers lie at the heart of modern electronics. These connectors serve as the bridges that effortlessly foster communication between circuit boards, embodying the spirit of technological advancement. From intricate circuitry to complex systems, pin headers stand as the foundation of limitless potential.Pin headers are essential in electronics manufacturing, connecting various components on circuit boards, ensuring seamless data flow, and enabling effective soldering.For engineers and developers, pin headers facilitate quick prototyping and testing. They offer accessible points for connecting wires and components, expediting experimentation.Pin headers form a vital part of embedded systems, allowing modules, sensors, and expansion boards to be easily connected and exchanged.

stacking header male 2.0mm pitch SAMTEC TW-08-03-F-D-290-105 is a compatible of TW series, which is a surface-mount PCB-header system designed for specific non-standard board stack height applications. Based on the general characteristics of the TW series,stacking header male 2.0mm pitch SAMTEC TW-08-03-F-D-290-105 is inferred that the product has a pin pitch of 2.00mm and a performance of up to 8Gbps. In the model number, “F” indicates that the pins have a flash gold plating and the tails have a matte tin plating, “D” stands for dual row, “290” may represent the dimension related to the stack height (unit: thousandths of an inch), and “105” may refer to other specific specifications or options.

The main function of  SAMTEC TW-08-03-F-D-290-105 is to achieve electrical connection between printed circuit boards (PCBs). The details are as follows:

•Providing high-density connection: Connectors of the TW series can offer high-density connection with up to 36 pins through a compact design. This connector also inherits this feature, enabling the transmission of a large number of signals in a limited space to meet the requirements of miniaturization and high performance of electronic devices.

•Ensuring stable electrical performance: The materials and plating processes (such as flash gold plating and matte tin plating) SAMTEC TW-08-03-F-D-290-105 adopts provide excellent electrical conductivity and oxidation resistance, which can ensure the stability and reliability of signal transmission, reduce signal attenuation and interference, and support a transmission rate of up to 8Gbps.

•Enabling flexible board stacking: This connector belongs to the surface-mount PCB-header system and can be used for the design of specific non-standard board stack heights. The “290” in the model number may represent the dimension related to the stack height, allowing the selection of an appropriate stack height according to different application needs to achieve flexible stacking and connection between circuit boards.

•Guaranteeing mechanical stability: SAMTEC TW-08-03-F-D-290-105 is made of black liquid crystal polymer and phosphor bronze, which have good mechanical properties. This enables SAMTEC TW-08-03-F-D-290-105 to maintain connection reliability in complex operating environments and not easily lead to connection failure due to factors such as vibration and impact.`

Function of stacking header male 2.0mm pitch SAMTEC TW-08-03-F-D-290-105：

`SAMTEC TW-08-03-F-D-290-105 is a board-to-board connector manufactured by Samtec. Its pins feature flash gold plating, while the tails have matte tin plating, and stacking header male 2.0mm pitch SAMTEC TW-08-03-F-D-290-105 adopts a dual-row design. The “290” may represent the dimension related to the stack height (unit: thousandths of an inch), and the “105” may refer to other specific specifications or options.

This connector is mainly used in scenarios that require board stacking connections, such as the connection between various control devices, sensors and controllers in the field of industrial automation, the interconnection of circuit boards with different functions in autonomous robots, the connection between image acquisition boards and processing boards in embedded vision systems, and the stacking connection of various circuit boards in industrial Internet of Things (IIoT) devices. In addition, due to its high performance and reliability, it may also be suitable for communication equipment, aerospace and other fields that have high requirements for signal transmission quality and stability.

Application Fields of stacking header male 2.0mm pitch SAMTEC TW-08-03-F-D-290-105：

As a board-to-board connector with high-density connection, stable electrical performance and flexible board stacking capability, stacking header male 2.0mm pitch SAMTEC TW-08-03-F-D-290-105 is mainly suitable for scenarios requiring board stacking connections. Its specific application fields are as follows:

1.Industrial Automation Field: stacking header male 2.0mm pitch SAMTEC TW-08-03-F-D-290-105 is used inside various control devices and for signal and power transmission between sensors and controllers, ensuring the stable operation of equipment such as automated production lines and intelligent machine tools.

2.Autonomous Robotics Field: stacking header male 2.0mm pitch SAMTEC TW-08-03-F-D-290-105 is adapted for the interconnection of circuit boards of different functional modules inside robots (e.g., motion control boards, sensing module boards), meeting the demand for efficient transmission of robots’ complex motion control and environmental sensing data.

3.Embedded Vision Field: stacking header male 2.0mm pitch SAMTEC TW-08-03-F-D-290-105 connects image acquisition boards (e.g., camera module boards) and image processing boards, ensuring that image data captured by the vision system is transmitted to the processing unit quickly and with low interference. It is suitable for machine vision inspection, intelligent monitoring equipment, etc.

4.Industrial Internet of Things (IIoT) Field: stacking header male 2.0mm pitch SAMTEC TW-08-03-F-D-290-105 is used for the stacking connection of circuit boards in equipment such as IoT gateways and intelligent sensor nodes, supporting data interaction between devices and remote control signal transmission.

5.High-Demand Special Fields: With its high reliability and anti-interference capability, stacking header male 2.0mm pitch SAMTEC TW-08-03-F-D-290-105 may also be applied in communication equipment (e.g., high-speed data switches) and aerospace-related electronic equipment that have strict requirements for signal transmission quality and environmental adaptability.
