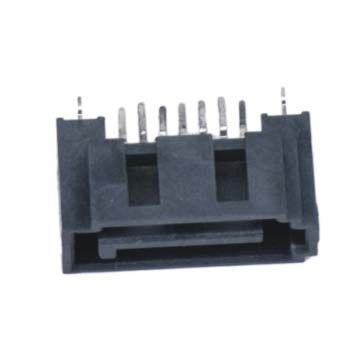

SATA 7P Plug R/A Dip Type With Metal Tab
SATA 7P Plug R/A Dip Type With Metal Tab
  • SATA 7P Plug R/A Dip Type With Metal Tab

  • Part No : SATPR127-XX-MT
  • Specifications
    Current Rating:1.0A AC/DC
    Voltage Ratinge:125V AC/DC
    Contact Resistance:20m ohm. Max
    Insulation Resistance:1000Mohm min
    Withstanding Voltage:500V(r.m.s) For one Minute
    Operating Temperature Range:-20°C ~ +85°C
    Insulator:High Temp. Plastic(LCP UL94V-0)
    Conact :Phosphor Bronze

    Plated:Selective Gold Plated

    Available specification: 7/15/22 Pin

  • Inquiry now
  • Products Drawing

Detailed description

SATA 7P Plug refers to the connector used in Serial ATA (SATA) cables that connect storage devices

Elevate your storage connectivity with our cutting-edge SATA 7P Plug Right-Angle Dual In-Line Package (DIP) Type featuring a robust Metal Tab. Engineered for peak performance, this SATA plug redefines the standards for data transfer, providing a seamless and durable connection for your storage devices.

The Right-Angle and DIP design of our SATA 7P Plug optimize space utilization within your system, allowing for easy integration into various configurations. The inclusion of a Metal Tab ensures added stability and durability, making this plug ideal for demanding applications.

Experience lightning-fast data transfer speeds as our SATA 7P Plug supports the latest SATA standards, providing a high-performance interface for upgrading hard disk drives (HDDs) or integrating solid-state drives (SSDs). The gold-plated contacts and robust Metal Tab ensure superior conductivity, minimizing signal loss and delivering a consistently reliable connection.

The SATA 7P Plug’s compact design and compatibility with various SATA devices make it the perfect choice for both DIY enthusiasts and professional system builders. Whether you’re building a new computer or enhancing existing storage configurations, this SATA plug is the key to unlocking high-speed data transfer and seamless connectivity.

Upgrade your system with confidence – explore the future of storage connectivity with our SATA 7P Plug Right-Angle DIP Type. Shop now and take your electronic projects to new heights with a plug that combines precision, durability, and high-performance data transfer.
