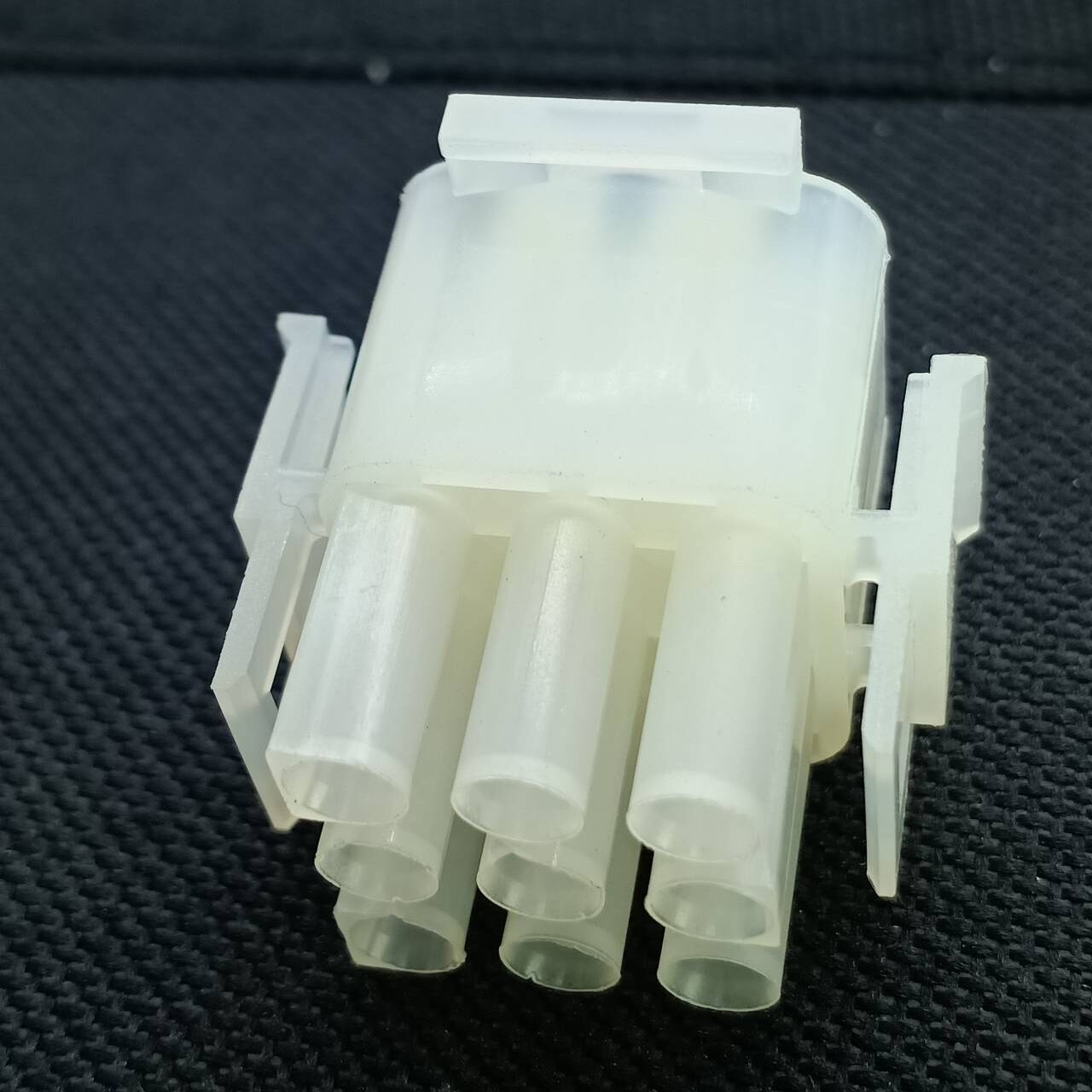

AMP MATE N LOK1-480706-0 TE Plug Housing Connector 9 Pos
- Part No : HS635-09
-
Current Rating: 13.0 Amps
Voltage Rating: 600V AC/DC
Contact Resistance: 20m Ohm Max
Insulator Resistance: 1000M Ohm Min
Withstanding Voltage: 5000V AC/minute
Operating Temperature Range: -55℃~+105℃
Material:
Plastic: Nylon 66 (UL94V-2)
Contacts: Brass
Plating: TIN Plated
Wire range: #16~#22
- Inquiry now
- Products Drawing
Detailed description
AMP MATE N LOK1-480706-0 TE Plug Housing Connector 9 Pos
6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P for connecting printed circuit boards (PCBs). Its main uses are as follows:
1.6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P Household appliances: such as refrigerators, washing machines, air conditioners, etc., used to connect circuit boards with external wiring harnesses or modules.
2.6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P HVAC system: Reliable electrical connections are achieved in components such as air conditioning controllers, sensors, and fan modules.
3.6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P Power supply equipment: used for connecting power modules and PCBs to ensure stable power transmission.
4.6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P Industrial control: In industrial automation equipment and control systems, connecting sensors, actuators, and main control boards.
5.6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P Medical equipment: The circuit board connections of some medical instruments require high reliability and safety.
6.6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P Lighting system: Circuit connections for indoor/outdoor lighting equipment to adapt to different environmental conditions.
This series of connectors is known for its reliability, flexibility, and adaptability, and is widely used in scenarios that require stable electrical connections. The specific selection needs to be determined based on the actual circuit parameters and application environment
3.What are the different series of 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P? What are the compatible 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P？
Hoyato 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P can povide a pefect ompatibility solution and compare it with 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P Pin to Pin part numbers in the table
| Product Description | TE/AMP part.no | Hoyato part No. |
| 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P Socket Housing 2P | 1-480698-0/350777-1 | HS635-02/HS635-02-V0 |
| 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P Socket Housing 3P | 1-480700-0/350766-1 | HS635-03/HS635-03-V0 |
| 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P Socket Housing 4P | 1-480702-0/ 350779-1 | HS635-04/HS635-04-V0 |
| 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P Socket Housing 5P | 1-480763-0/350809-1 | HS635-05/HS635-05-V0 |
| 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P Socket Housing 6P | 640585-1/350766-1/1-480704-0/350715-1 | HS635-06A/HS635-06A-V0/HS635-06/HS635-06-V0 |
| 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P Socket Housing 8P | 640586-1/640582-1 | HS635-08/HS635-08-V0 |
| 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P Socket Housing 3*3P | 1-480706-0/350720-1 | HS635-09/HS635-09-V0 |
| 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P Socket Housing 3*4P | 1-480708-0/350735-1 | HS635-12/HS635-12-V0 |
| 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P Socket Housing 3*5P | 1-480710-0/350736-1 | HS635-15/HS635-15-V0 |
| 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P Socket pin Terminal awg 18~awg22 | 350537-1/350537-7 | HS635T-1822/HS635SG-1822 |
| 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P Socket pin Terminal awg 16~awg 20 | 350874-3/350923-6 | HS635T-1620/HS635SG-1620 |
With Mates with Part(s)
| Product Description | TE/AMP part.no | Hoyato part No. |
| 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P Single row 2P | 350428-1/350786-1 | WFPV635-02/WFPV635-02-V0 |
| 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P Single row 3P | 350429-1/350789-1 | WFPV635-03/WFPV635-03-V0 |
| 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P Single row 4P | 350430-1/ 350792-1 | WFPV635-04/WFPV635-04-V0 |
| 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P Single row 5P | 640466-1/640900-1 | WFPV635-05/WFPV635-05-V0 |
| 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P 2*3P | 641832-1/641831-1/350431-1/350711-1 | WFPV635-06A/WFPV635-06A-V0/WFPV635-06/WFPV635-06-V0 |
| 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P Single row 8P | 641825-1/641828-1 | WFPV635-08/WFPV635-08-V0 |
| 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P 3*3P | 350432-1/350712-1 | WFPV635-09/WFPV635-09-V0 |
| 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P 3*4P | 350433-1/350713-1 | WFPV635-12/WFPV635-12-V0 |
| 6.35mm AMP Connector 350431 TE MATE-N-LOK PCB Header 6P 3*5P | 350434-1/350714-1 | WFPV635-15/WFPV635-15-V0 |
