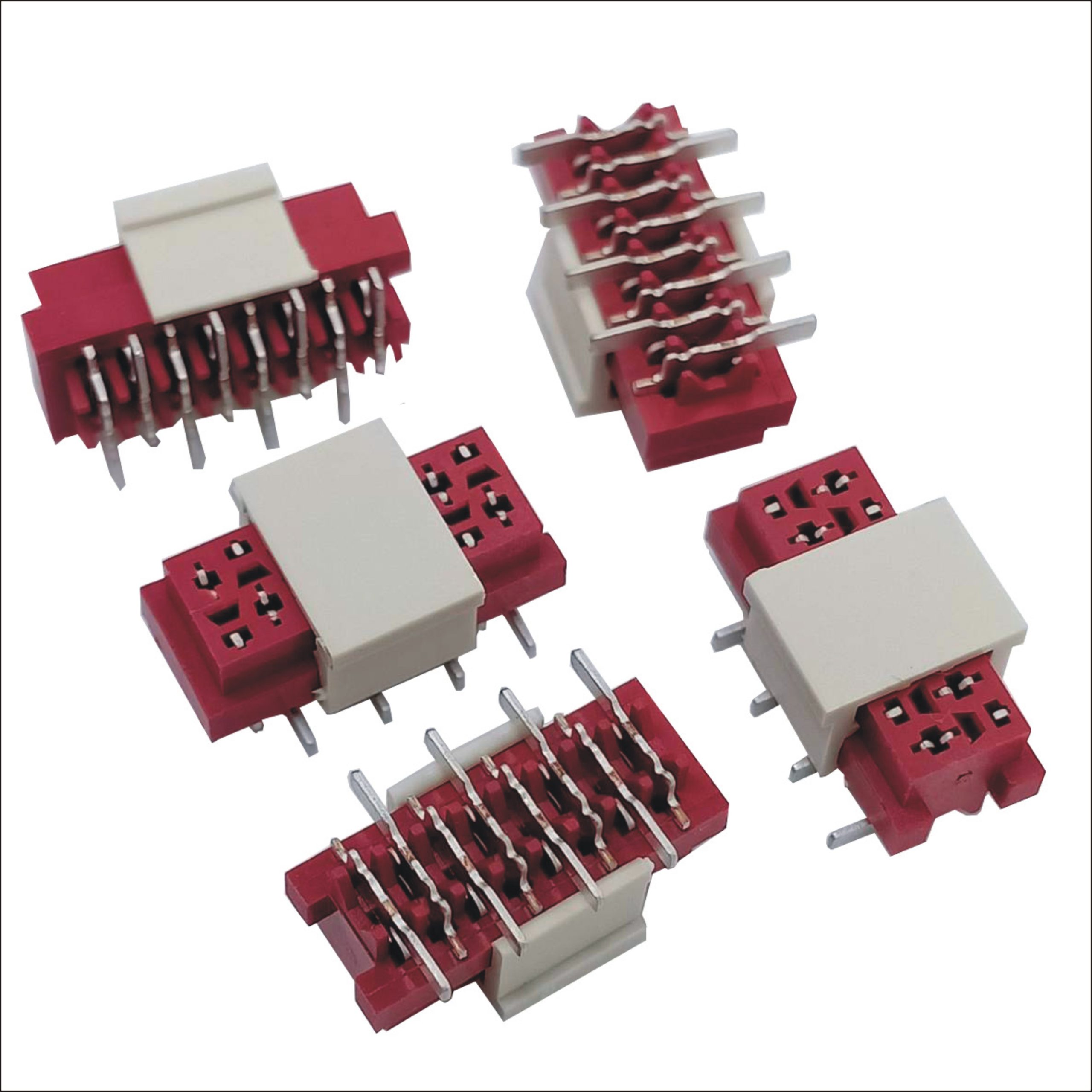

Micro-Match 7-188275-8 8 Position 2.54mm pitch 2 Row Receptacle Micro Match Industrial 188275
- Part No : WFSM254-08-CR
-
Current Rating: 1.0A AC DC
Voltage Rating: 30V AC.DC
Contact Resistance: 20m ohm. Max
Insulation Resistance: 1000m ohm Min
Withstanding Voltage: 500V AC for one minute
Operating Temperature: -40°C-105°C
Insulator: High Temp.Plastic(Nylon46 UL94V-0)
Insulator Color: Red
- Inquiry now
- Products Drawing
Detailed description
Micro-Match 7-188275-8: Precision 8-Position 2.54mm Pitch Receptacle for Industrial Connectivity.
Key Features of Micro-Match 7-188275-8:
Compact Design: Experience a space-saving receptacle ideal for industrial applications with limited space constraints.
Secure Connection: Achieve a stable and reliable connection, minimizing the risk of disconnections and downtime in industrial settings.
High Performance: With an 8-position layout and 2.54mm pitch, this receptacle handles demanding industrial electronic requirements with efficiency.
Melissa Lee
Email:sales05@dghoyato.com
Skype:limiao425
Phone/Whatsapp:86-13337908889
| Connector Type | Header | |||
| Original P/N | TE Connectivity AMP Connectors Micro Match | |||
| Pitch – Mating | 0.100″ (2.54mm) | |||
| Number of Positions | 04-26 | |||
| Number of rows | 2 | |||
| Orientation | Surface Mount | |||
| Contact Material | Phosphor Bronze | |||
| Plating | Tin Plated | |||
