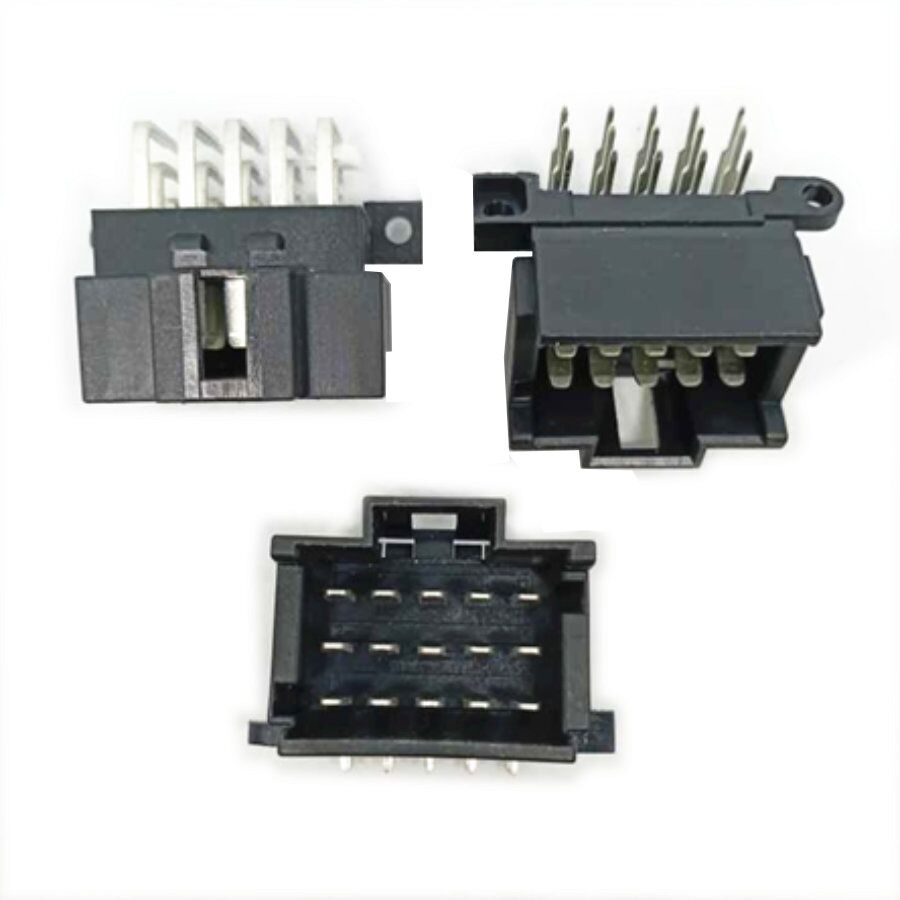

0.197″ 5.00mm Connector Header Through Hole Right Angle 15 position MCP 9-966140-2 966140
- Part No : WFTR50-15T-2
-
Current Rating: 2.0A AC DC
Voltage Rating: 250V AC.DC
Contact Resistance: 30m ohm. Max
Insulation Resistance: 1000m ohm Min
Withstanding Voltage: 1000V AC for one minute
Operating Temperature: -40°C to +125°C
Insulator: PBT(UL94V-0)
Insulator Color: Black
- Inquiry now
- Products Drawing
Detailed description
9-966140-2 Connectors: Precision, Reliability, and Innovation Redefined.
Melissa Lee
Email:sales05@dghoyato.com
Skype:limiao425
Phone/Whatsapp:86-13337908889
0.197″ 5.00mm Connector Header Through Hole Right Angle 15 position MCP 9-966140-2 966140
Innovative Features of 9-966140-2 Connectors:
Secure Locking Mechanism: Experience a stable and secure connection, minimizing the risk of disconnections.
Versatile Applications: From consumer electronics to industrial automation, 9-966140-2 connectors offer versatility across a wide range of applications.
Future-Ready Design: Stay ahead with a design that incorporates future trends and innovations in connector technology.
| Connector Type | 5.0MM connector header | |||
| Original P/N | TE Connectivity AMP Connectors, MCP 9-966140-2 966140 | |||
| Pitch – Mating | 0.197″ (5.00mm) | |||
| Number of Positions | 15 | |||
| Number of rows | 3 | |||
| Mounting Type | Through hole, right angle | |||
| Insulation Height | 25.3mm | |||
| Plating | Tin Plated | |||
