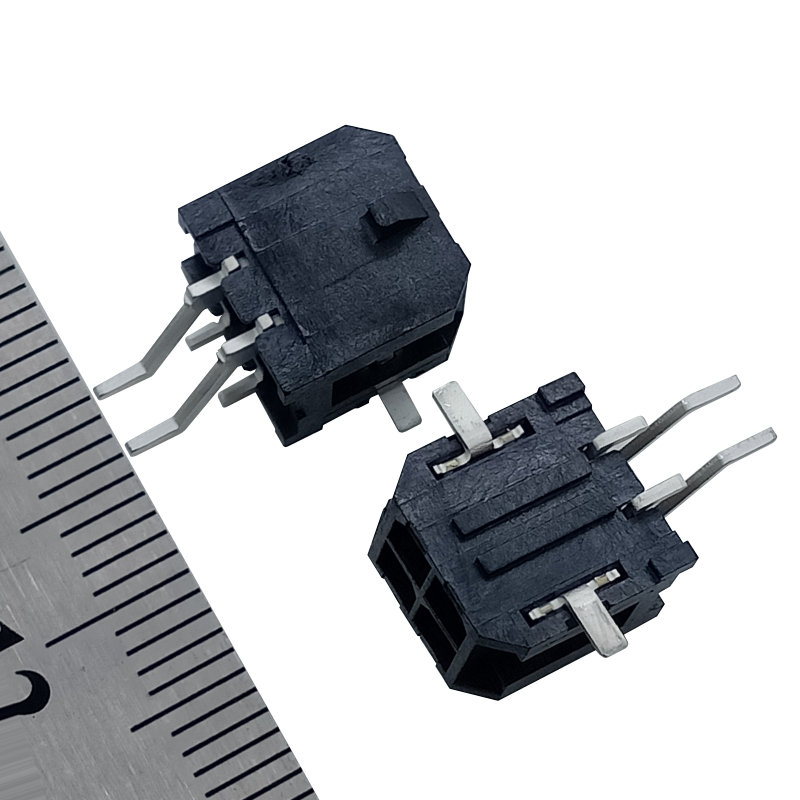

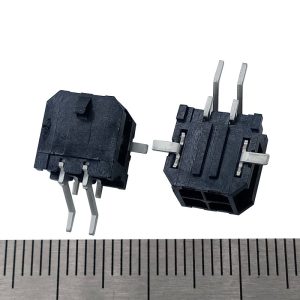

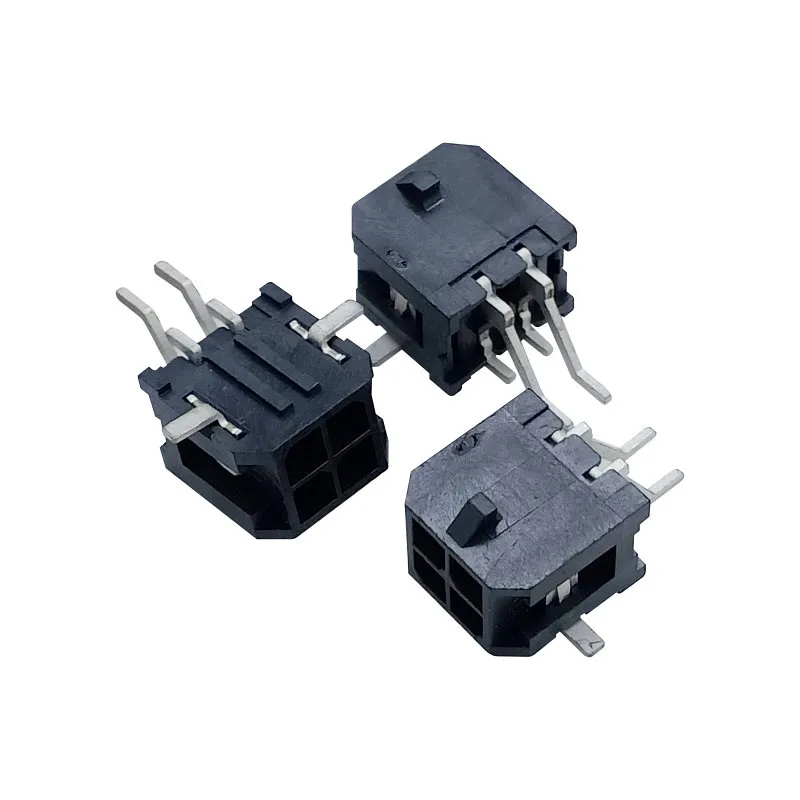

3.0mm Micro fit header power connector molex 430450409
3.0mm Micro fit header power connector molex 430450409 Molex MicroFit 3.0 3.0mm Micro fit header power connector molex 430450409
  • 3.0mm Micro fit header power connector molex 430450409|dghoyato

  • Part No : WF1RSM30-04T-TR
  • Specifications
    Current Rating: 5.0A AC/DC
    Voltage Rating: 250V AC/DC
    Contact Resistance: 10m ohm. Max
    Insulation Resistance: 1000Mohm min
    Withstanding Voltage: 1500V(r.m.s) For one Minute
    Operating Temperature Range: -40°C ~ +85°C
    Materials:
    Insulator: High Temp. Plastic(Nylon 9T UL94V-0)
    Color: Black
    Contact: Copper Alloy
    Plated: Tin Plated


  • Inquiry now
  • Products Drawing

Detailed description


Replacement 0430450409 430450409 43045-0409 3.0mm Micro fit connectors power connector

Contact:Catherine Tang

Email:sales01@dghoyato.com

Mobile/WhatsApp:+18692238587

   Product Description molex part.no Hoyato part No.

3.0mm Micro fit header power connector molex 430450409 Double row Right-Angle  SMT Header

43045-0409/43045-0410/43045-0411/43045-0492 WF1RSM30-04T/WF1RSM30-04SG15/WF1RSM30-04SG30/WF1RSM30-04MT
   Product Description molex part.no Hoyato part No.
Micro-Fit 3.0 Receptacle Housing Double row

43025-0400/430250408

HSD30-04
Micro-Fit 3.0 Crimp Terminal, Female

430300002/430300003/430300004/

430300005/430300006/

430300007/430300008/43030009/

430300010

HST30SG15-2420/HST30SG30-2420/HST30T-3026/HST30SG30-3026/

HST30T-2420/HST30SG15-2420/HST30SG30-2420/HST30T3026-BAG

Application:Power, Wire-to-Board Comments High Temperature, Square Pin, Solder Type; Hoyato Micro fit product is manufactured from material that has the following ratings, tested by independent agencies: a) A Glow Wire Ignition Temperature (GWIT) of at least 775 deg C per IEC 60695-2-13. b) A Glow Wire Flammability Index (GWFI) above 850 deg C per IEC 60695-2-12 and hence complies with the requirements set out in the International Standard IEC 60335-1 5th edition – household and similar electrical appliances – safety, section 30 Resistance to heat and fire. The customers using this product must determine its suitability for use in their particular application through testing or other acceptable means as described in end-product glow-wire flammability test standard IEC 60695-2-11 and any applicable product end-use standard(s). If it is determined during the customer’s

Comparative analysis of Hoyato WF1RSM30-04T 3.0mm Micro fit header power connector molex 430450409 and 3.0mm Micro fit header power connector molex 430450409

   In today’s electronic product manufacturing field, the selection of connectors is crucial for product performance, production efficiency, and cost control. This article will briefly analyze the compatibility between Hoyato WF1RSM30-04T 3.0mm Micro fit header power connector molex 430450409 and 3.0mm Micro fit header power connector molex 430450409, and compare them in terms of quality, delivery time, cost, and production efficiency.     Compatibility analysis: The Hoyato WF1RSM30-04T 3.0mm Micro fit header power connector molex 430450409 is fully compatible with the Molex Microfit 430450409 connector.

   Both connectors meet industry standards for product performance (quality consistency), but Hoyato WF1RSM30-04T has its own unique quality control. Hoyato adopts a strict quality management system to ensure consistency in the quality of each batch of products. Compared to Molex, although it has a good reputation, the consistency of its products may be affected by its large production scale.

Product delivery time (3-4 weeks, faster than Molex) In terms of delivery time, Hoyato WF1RSM30-04T 3.0mm Micro fit header power connector molex 430450409 usually have a delivery time of 3-4 weeks, which gives Hoyato an advantage over 3.0mm Micro fit header power connector molex 430450409  .

    This advantage not only meets the needs of the fast-moving consumer market, but also helps customers obtain more flexible solutions when they have urgent demands for short delivery times

   Product cost (Hoyato cost is 60-70% of Molex’s) From a cost perspective, the production cost of Hoyato WF2RSM30-04T is approximately 60% to 70% of 3.0mm Micro fit header power connector molex 430450409  . This significant price difference makes Hoyato a choice for many companies looking to reduce costs, especially in the case of large-scale procurement, which can further reduce overall manufacturing costs.

   Production efficiency (short production cycle) In terms of production efficiency, Hoyato has an efficient production system that shortens the production cycle and accelerates the running time of materials. This not only improves the product’s time to market, but also enables customers to respond more quickly to market changes. In contrast, Molex may have a relatively long production cycle due to its large scale during the production process.

   In summary, the Hoyato WF1RSM30-04T 3.0mm Micro fit header power connector molex 430450409 has demonstrated significant advantages in quality, consistency, delivery time, cost, and production efficiency due to its excellent compatibility and outstanding product performance. For enterprises that need to optimize costs and improve production efficiency, the solution provided by Hoyato is undoubtedly a worthwhile choice to consider. By comparing these key elements, we can also see the reasons why Hoyato is gradually emerging in the connector market.

3.0mm Micro fit header power connector molex 430450409

PART NUMBER: 430450409

SERIES NUMBER: 43045

PRODUCT FAMILY: MICRO-FIT CONNECTOR SYSTEM



3.0mm Micro fit header power connector molex 430450409

3.0mm Micro fit header power connector molex 430450409

Molex MicroFit 3.0 WF1RSM30-04T-TR replace Molex 430450409

Molex MicroFit 3.0
