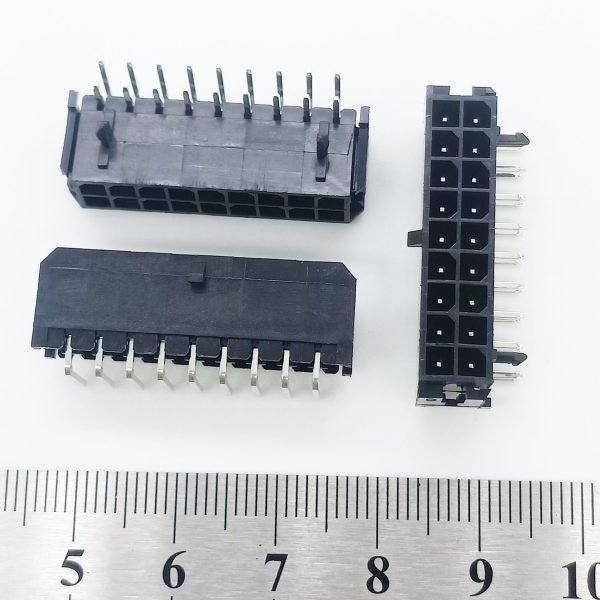

PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0
- Part No : WFDR30-18T
-
Current Rating:5.0A AC DC
Voltage Rating:250V AC.DC
Contact resistance:10m ohm. Max
INSULATION RESISTANCE:1000m ohm Min
Withstanding Volatge:1500V AC for one minute
Operating Temperature:-25°C-105°C
Insulator:High Temp. Plastic (UL94V-0)
Insulator color:Black
- Inquiry now
- Products Drawing
Detailed description
What are the different series of PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0? What are the compatible PCB Header 43045 connector 430451800 Wafer Micro Fit 3.09？
Hoyato can provide a perfect compaibility solution and compare it with PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0 Pin to Pin part numbers in the table
| Product Description | molex part.no | Hoyato part No. |
PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0 R/A 2P |
43045-0200/43045-0201/43045-0202/43045-0210 | WFDR30-02T/WFDR30-02SG15/WFDR30-02SG30/WFDR30-02MT |
PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0 R/A 4P |
43045-0400/43045-0401/43045-0402/43045-0410 | WFDR30-04T/WFDR30-04SG15/WFDR30-04SG30/WFDR30-04MT |
PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0 R/A 6P |
43045-0600/43045-0601/43045-0602/43045-0610 | WFDR30-06T/WFDR30-06SG15/WFDR30-06SG30/WFDR30-06MT |
PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0 R/A 8P |
43045-0800/43045-0801/43045-0802/43045-0810 | WFDR30-08T/WFDR30-08SG15/WFDR30-08SG30/WFDR30-08MT |
PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0 R/A 10P |
43045-1000/43045-1001/43045-1002/43045-1010 | WFDR30-10T/WFDR30-10SG15/WFDR3010SG30/WFDR30-10MT |
PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0 R/A 12P |
43045-1200/43045-1201/43045-1202/43045-1210 | WFDR30-12T/WFDR30-12SG15/WFDR3012SG30/WFDR30-12MT |
PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0 R/A 14P |
43045-1400/43045-1401/43045-1402/43045-1410 | WFDR30-14T/WFDR30-14SG15/WFDR3014SG30/WFDR30-14MT |
PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0 R/A 16P |
43045-1600/43045-1601/43045-1602/43045-1610 | WFDR30-16T/WFDR30-16SG15/WFDR3016SG30/WFDR30-16MT |
PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0 R/A 18P |
43045-1800/43045-1801/43045-1802/43045-1810 | WFDR30-18T/WFDR30-18SG15/WFDR3018SG30/WFDR30-18MT |
PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0 R/A 20P |
43045-2000/43045-2001/43045-2002/43045-2010 | WFDR30-20T/WFDR30-20SG15/WFDR30-20SG30/WFDR30-20MT |
PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0 R/A 22P |
43045-2200/43045-2201/43045-2202/43045-2210 | WFDR30-22T/WFDR30-22SG15/WFDR30-22SG30/WFDR30-22MT |
PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0 R/A 24P |
43045-2400/43045-2401/43045-2402/43045-2410 | WFDR30-24T/WFDR30-24SG15/WFDR30-24SG30/WFDR30-24MT |
With Mates with Part(s)
| Product Description | molex part.no | Hoyato part No. |
PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0 Receptacle Housing Double row |
43025-1800/43050-1808 |
HSD30-18 |
PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0 Crimp Terminal, Female |
430300002/430300003/430300004/430300005/430300006/430300007/430300008/43030009/430300010 |
HST30SG15-2420/HST30SG30-2420/HST30T-3026/HST30SG30-3026/ HST30T-2420/HST30SG15-2420/HST30SG30-2420/HST30T3026-BAG |
Melissa Lee
Email:sales05@dghoyato.com
Skype:limiao425
Phone/Whatsapp:86-13337908889
PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0
|
Connector Type
|
PCB Headers
|
|||
|
Orginal P/N
|
PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0
|
|||
|
Pitch – Mating
|
3.0mm
|
|||
|
Number of Positions
|
2-24
|
|||
|
Number of rows
|
2
|
|||
|
Mounting Type
|
Right Angle
|
|||
|
Contact Material
|
Copper Alloy
|
|||
|
Plasting
|
Tin Plated
|
|||
PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0 is a versatile connector that is widely used in various industries for its reliability and compatibility.
we will discuss the applications of this connector in different industries.
Home Appliances:
PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0 is commonly used in home appliances such as freezers, printers, scanners, security systems, and washing machines. Its compact size and high performance make it ideal for connecting different components in these appliances, ensuring seamless operation and reliability.
Automotive:
automotive industry, PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0 is popular among harness manufacturers, inside devices, and non-sealed applications. Its durable design and high tolerance for harsh environments make it an ideal choice for automotive applications where reliability is crucial.
MedTech:
MedTech applications, PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0 is used in diagnostic equipment and patient monitors. Its high-speed data transmission capabilities and secure connections make it suitable for use in critical medical devices, ensuring accurate and reliable performance.
Telecommunications:
telecommunications industry, PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0 is commonly used in routers and switches, servers, and storage devices. Its compatibility with various data transmission protocols and robust construction make it a reliable choice for telecommunications equipment that requires high-performance connectivity.
Overall, the Hoyato PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0 stands out for its compatibility with a wide range of devices and systems in different industries. Its design allows for easy integration into various applications, ensuring seamless connectivity and reliable performance. Whether in home appliances, automotive, MedTech, or telecommunications, PCB Header 43045 connector 430451800 Wafer Micro Fit 3.0
