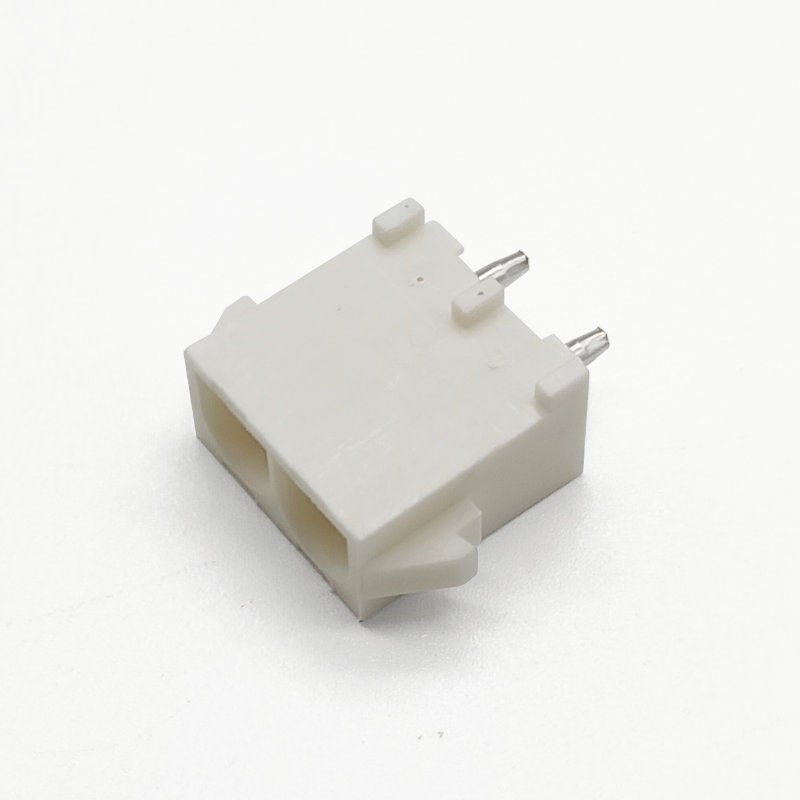

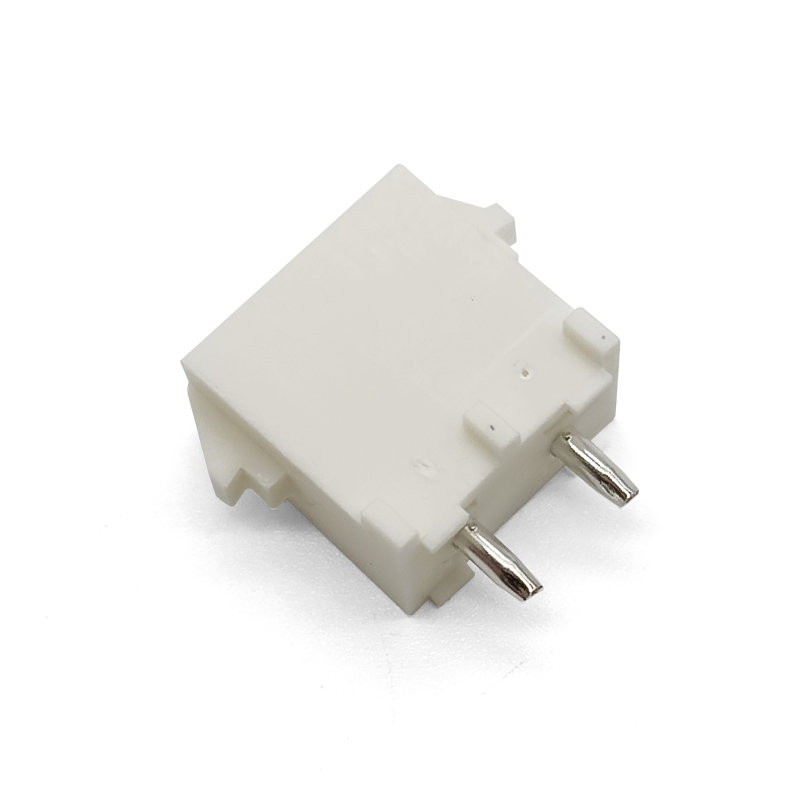

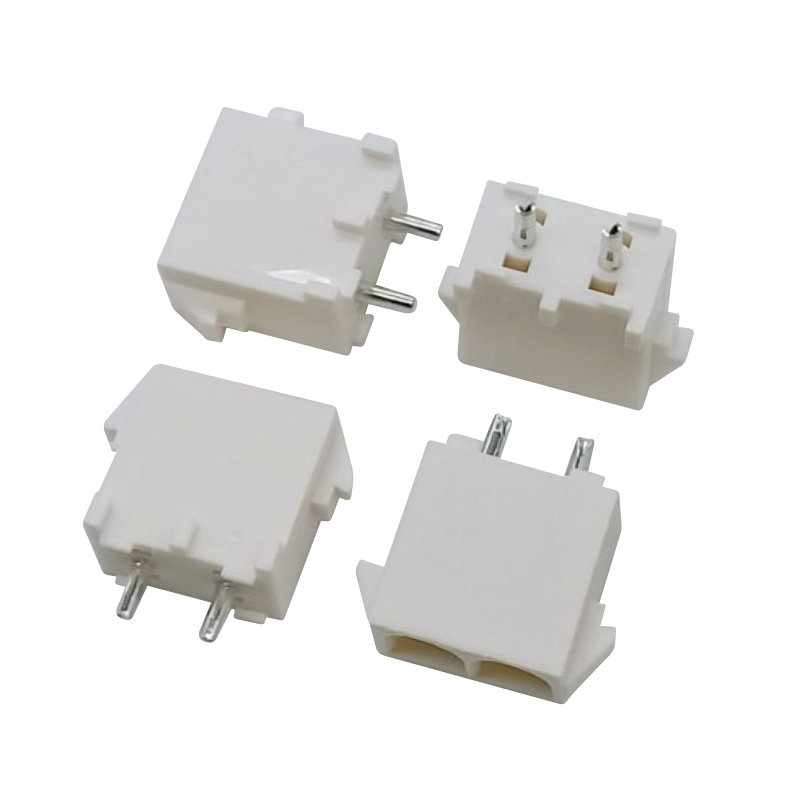

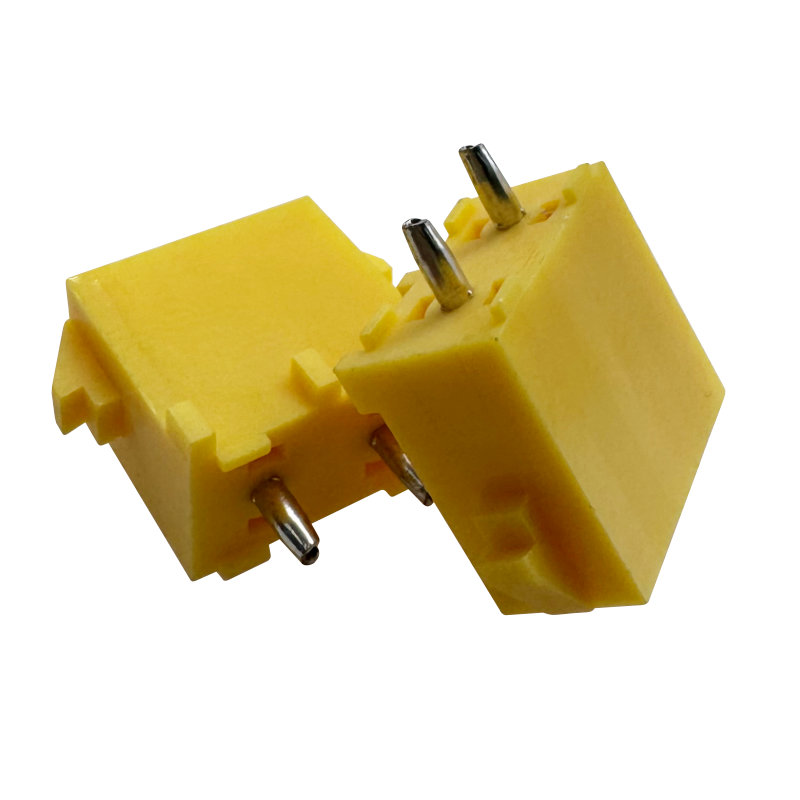

6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector
- Part No : WFPV635-02-V0
-
Current Rating: 13.0 AC/DC
Voltage Rating: 600V AC/DC
Contact Resistance: 20m ohm. max.
Insulation Resistance: 1,000M ohm.min.
Withstanding Voltage: 5,000V AC/minute
Operating Temperature Range: -55°C to +105°C
Material and Finish
Insulator: Nylon 66 (UL94V-0)
Insulator Color: White
Contact: Phosphor Bronze
Finish: Tin Plated - Inquiry now
- Products Drawing
Detailed description
6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector
1.What is 6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector？
6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector Composed of a male (Pin) and female (Socket) insulated housing with a spacing of 6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector, the connector is internally crimped with metal terminals and has a hook locking mechanism. It produces a locking sound when inserted and is widely used in various electrical and electronic devices that require safe power
connections
2.Which industries apply 6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector？
a.6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector House hold appliances: refrigerators, freezers, washing machines, dryers, heat pumps, etc
b.6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector Industrial equipment: industrial control systems, automation equipment, generator systems, industrial machinery and construction equipment
c.6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector Medical and Business: Medical equipment, hospital beds, photocopiers, printers, vending machines, and gas dispensers
d.6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector Transportation and Lighting: Commercial Vehicles, RVs, Lighting Systems, Security Systems
3.Hoyato 6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector can povide a pefect ompatibility solution and compare it with 6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector Pin to Pin part numbers in the table
| Product Description | TE (AMP) part.no | Hoyato part No. |
| T6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector 2P | 641963-1/350428-1/350428-4/641963-3/350786-1/350786-3/641964-3/1-641964-15 | WFPV635-02/WFPV635-02-V0 |
| 6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector 3P | 641965-1/350429-1/350429-4/350789-1/350789-3/641966-3/1-641966-14 | WFPV635-03/WFPV635-03-V0 |
| TE 641964 1 Header Pin MATE N LOK connector 6.35MM 2pos 4P | 641967-1/350430-1/350430-4/350792-1/350792-3/641968-1 | WFPV635-04/WFPV635-04-V0 |
| 6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector 5P | 640466-1/640466-3/643405-1/640900-1/ 640900-3/643406-1 | WFPV635-05/WFPV635-05-V0 |
| 6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector 6P | 641832-1/641832-3/643407-1/641831-1/ 641831-3/643408-1 | WFPV635-06/WFPV635-06-V0 |
| 6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector 8P | 641825-1/641828-1/643410-1/643410-3 | WFPV635-08/WFPV635-08-V0 |
| 6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector 9P | 350432-1/350432-4/350712-1/350712-4/641971-1/641971-4/ 641972-1/1-641972-14 /641972-3 | WFPV635-09/WFPV635-09-V0 |
| T6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector 12P | 350433-1/350433-4/350713-1/350713-4/641973-1/641974-1/1-641974-14 /641974-3 | WFPV635-12/WFPV635-12-V0 |
| 6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector 15P | 350434-1/350434-4/350714-1/350714-4/641975-1/641974-1/641976-1 /641976-3 | WFPV635-15/WFPV635-15-V0 |
Matching connector：
| Product Description | TE (AMP) part.no | Hoyato part No. |
| 6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector Plug Housing 2P | 1-480698-0/794814-13/350777-1 | HS635-02/HS635-02-V0 |
| 6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector Plug Housing 3P | 1-480700-0/794901-13/350766-1 | HS635-03/HS635-03-V0 |
| 6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector Plug Housing 4P | 1-480702-1/794799-13/350779-1 | HS635-04/HS635-04-V0 |
| 6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector Plug Housing 5P | 1-480763-0/350809-1 | HS635-05/HS635-05-V0 |
| 6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector Plug Housing 6P | 640585-1/1-480704-0/794535-13/794096-15/640581-1/350715-1 | HS635-06/HS635-06-V0 |
| 6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector Plug Housing 8P | 640586-1/640582-1 | HS635-08/HS635-08-V0 |
| 6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector Plug Housing 9P | 1-480706-0/794537-13/350720-1 | HS635-09/HS635-09-V0 |
| 6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector Plug Housing 10P | 926302-1/926-302-3 | HS635-10/HS635-10-V0 |
| 6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector Plug Housing 12P | 1-480708-0/794853-13/350735-1 | HS635-12/HS635-12-V0 |
| 6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector Plug Housing 15P | 1-480710-0/794546-13/350736-1 | HS635-15/HS635-15-V0 |
| 6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector Cirm socket Terminal | 350570-31 | HS635T-1822 |
| 6.35mm MATE N LOK 350428 1 PCB Header Pin HDR Connector Cirm socket Terminal | 350874-3 | HS635T-1620 |
