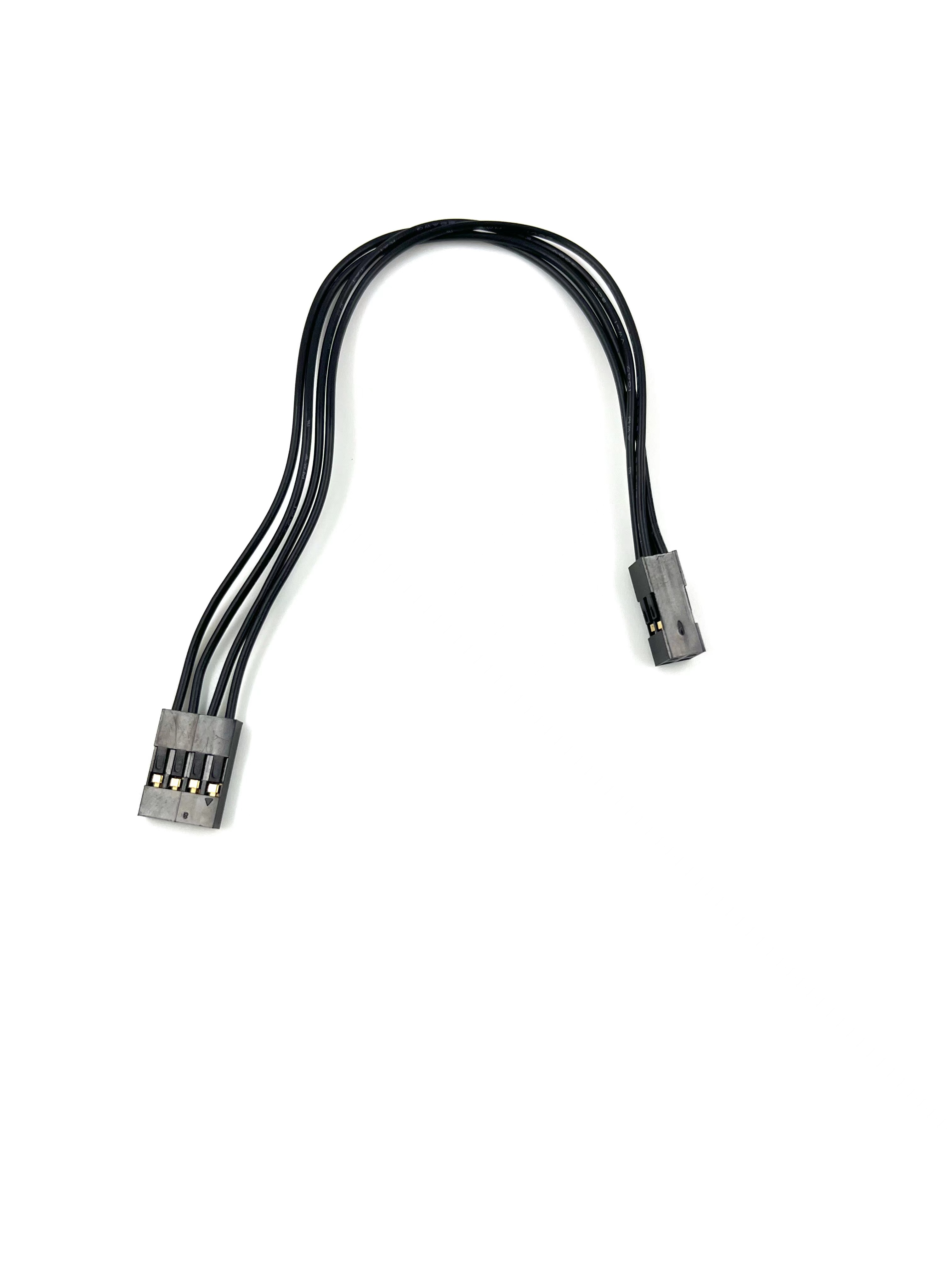

Length 116MM 4 Pin 2.54MM Pitch 24 AWG Female to Male Housing Wire Harness
- Part No : HCA-HB254-04D-116
-
- 1.25MM Pitch Female to Male Housing Wire Harness
- Inquiry now
- Products Drawing
Detailed description
Melissa Lee
Email:sales05@dghoyato.com
Skype:limiao425
Phone/Whatsapp:86-13337908889
Length 116MM 4 Pin 2.54MM Pitch 24 AWG Female to Male Housing Wire Harness
| Wire Number | 24AWG |
| Pitch | 2.54MM |
| Positions | 4PIN |
| Cable Length | 116MM |
| Insulator | High Temp. Plastic (Nylon 6T UL94V-0) |
| Contact | Phosphor Bronze |
| Current Rating | 1.0A AC/DC |
| Voltage Rating | 50V AC/DC |
| Standard Color | Black/Yellow/Red |
| Contact resistance | 20m Ohms Max |
| Insulation Resistance | 100M Ohm/Min |
| Operating Temperature | -25℃ to+85℃ |
| Packaging | Bag packing,Tube packing,Tape&Reel packing,etc |
| OEM/ODM | Accept and made based on drawing or samples |
| Payment Terms | T/T,PayPal,Western Union,L/C |
| Company Advantage | 1.Factory and trade integration,10+ years export experience; 2.One-stop shopping; 3.Competitive price; 4.Timely delivery; 5.Technical support; 6.Samples for free; |
