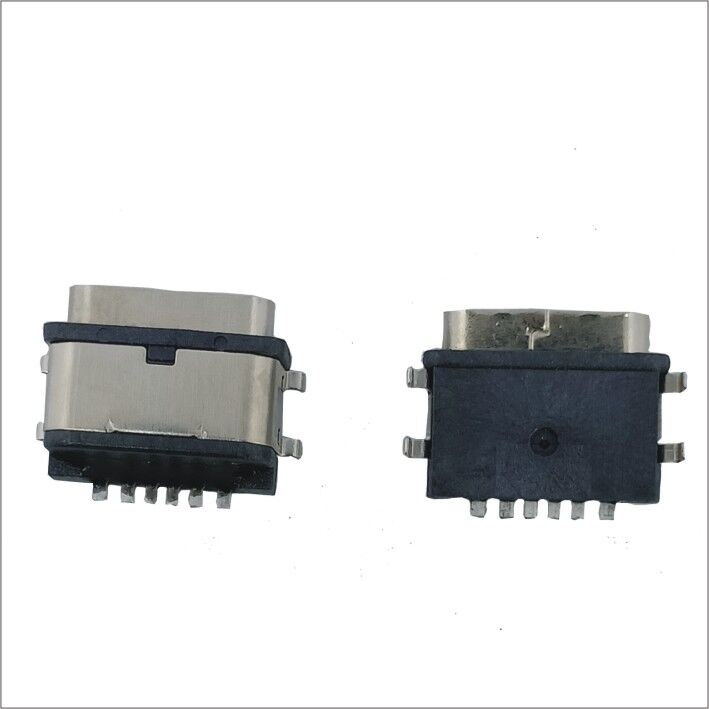

USB C Female Rev 3.1 R/A SMT+dip Type 6P Waterproof
USB C Female Rev 3.1 R/A SMT+dip Type 6P Waterproof
  • USB C Female Rev 3.1 R/A SMT+dip Type 6P Waterproof

  • Part No : UBSR31IPA-06
  • Specifications
    Current Rating:5.0A AC/DC
    Voltage Ratinge:100V AC/DC
    Contact Resistance:40m ohm. Max
    Insulation Resistance:100Mohm min
    Withstanding Voltage:100V(r.m.s) For one Minute
    Operating Temperature Range:-40°C ~ +85°C
    Materials:
    Insulator:High Temp. Plastic(LCP UL94V-0)
     Color:Blue
    Conact :Copper Alloy

    Plated:Selective Gold Plated

    Shell:Srainless,Nickel Plated 30~50u”


  • Inquiry now
  • Products Drawing

Detailed description


USB C female to usb is a compact connector that allows devices with USB Type-A ports to connect to devices with USB Type-C ports.

A USB Type-C Female to USB (Type-A) adapter is a compact connector that allows devices with USB Type-A ports to connect to devices with USB Type-C ports. Here are key details about USB Type-C Female to USB (Type-A) adapters:

1. Connector Types:

  • USB Type-C Female: This side of the adapter features a USB Type-C Female connector, which is the latest USB standard known for its reversible design and versatility.
  • USB Type-A Male: The other side of the adapter features a USB Type-A Male connector, which is a standard USB connector widely used in various devices for many years.

2. Reversible Connectivity:

  • The USB Type-C Female connector’s reversible design ensures that users can plug in the adapter in either orientation, making it convenient and user-friendly.

3. Compatibility:

  • USB Type-C Female to USB Type-A Male adapters enhance compatibility between devices. They are particularly useful when connecting newer devices with USB Type-C ports to older devices or accessories with USB Type-A ports.

4. Data Transfer and Charging:

  • The adapter supports data transfer between devices, making it suitable for connecting USB Type-C smartphones, laptops, or tablets to devices such as computers, external hard drives, or chargers with USB Type-A ports.

5. Versatility:

  • These adapters offer versatility by enabling the use of existing USB Type-A cables with devices featuring USB Type-C ports. This eliminates the need to purchase new cables for every USB-C device.

6. Charging Functionality:

  • USB Type-C Female to USB Type-A Male adapters support charging functionality, allowing users to charge their USB Type-C devices using USB Type-A power sources.

7. Compact Design:

  • The compact and lightweight design of these adapters makes them portable and easy to carry. They are suitable for travel or situations where devices with different USB interfaces need to be connected on the go.

8. Plug-and-Play:

  • USB Type-C Female to USB Type-A Male adapters are typically plug-and-play devices, requiring no additional drivers for basic functionality. Users can simply plug them into the USB Type-C port, and the USB Type-A side becomes available for connection to a USB Type-A device.

9. Dongle Functionality:

  • These adapters essentially function as dongles, providing a simple solution for connecting devices with different USB interfaces without the need for multiple cables.

10. Cost-Effective Solution: – USB Type-C Female to USB Type-A Male adapters offer a cost-effective solution for users with existing USB Type-A cables who want to connect to devices with USB Type-C ports without purchasing new cables.

These adapters provide a convenient and affordable solution for users transitioning between USB Type-A and USB Type-C devices, ensuring seamless connectivity and compatibility in mixed-use environments.
