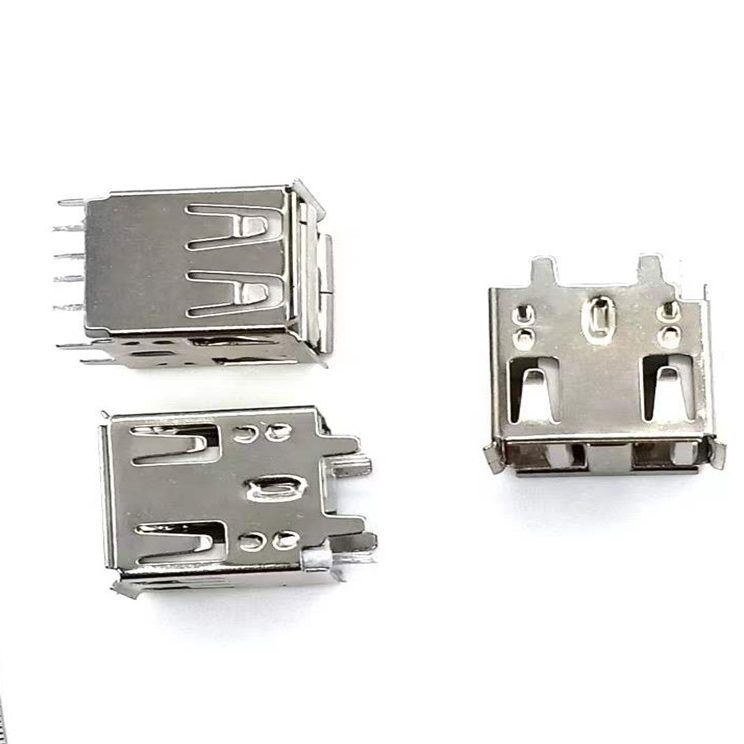

Usb A REV.3.0 C Socket Conn 8pins Dip Type
Usb A REV.3.0 C Socket Conn 8pins Dip Type
  • Usb A REV.3.0 C Socket Conn 8pins Dip Type

  • Part No : UBSAV-08-142
  • Specifications
    Current Rating:1.0A AC/DC
    Voltage Ratinge:30V AC/DC
    Contact Resistance:30m ohm. Max
    Insulation Resistance:1000Mohm min
    Withstanding Voltage:500V(r.m.s) For one Minute
    Operating Temperature Range:-40°C ~ +105°C

  • Inquiry now
  • Products Drawing

Detailed description

USB Type-A is one of the most common and widely used connectors globally.

Introducing our USB 3.0 Type-A Socket Connector, crafted for the demands of modern connectivity. With Rev. 3.0 compliance, an 8-pin configuration, and a Dual In-line Package (DIP) design, this connector stands at the forefront of high-speed data transfer and ensures a reliable connection for your devices.

Key Features:

  1. Revolutionary USB 3.0 Standard:

    • Our USB Type-A Socket Connector complies with the USB 3.0 standard, providing a leap in data transfer speeds. Experience enhanced connectivity with theoretical maximum speeds of up to 5 gigabits per second (Gbps).
  2. 8-Pin Configuration:

    • Boasting an 8-pin configuration, this connector is designed to leverage the advanced features of USB 3.0. The additional pins enable faster data transfer, improved power delivery, and optimal performance for your devices.
  3. Dual In-line Package (DIP) Type:

    • The Dual In-line Package (DIP) design ensures easy integration into your electronic designs. This traditional through-hole mounting style facilitates a secure and stable connection on your printed circuit board (PCB).
  4. Data Transfer Efficiency:

    • USB 3.0 technology enhances data transfer efficiency, making it ideal for connecting external hard drives, flash drives, and other high-bandwidth devices. Enjoy quick and seamless file transfers for improved productivity.
  5. Backward Compatibility:

    • While embracing the advancements of USB 3.0, our Type-A Socket Connector maintains backward compatibility with USB 2.0 and USB 1.1. This ensures a smooth transition for devices with varying USB standards.
  6. Reliable Power Delivery:

    • USB 3.0 supports enhanced power delivery, making it suitable for charging a variety of devices. Power-hungry gadgets, including smartphones and tablets, benefit from the improved charging capabilities of USB 3.0.
  7. Versatile Applications:

    • Our USB Type-A Connector is suitable for a diverse range of applications. From connecting peripherals to computers to charging devices, its versatility makes it a valuable component in various electronic devices.
  8. Efficient Through-Hole Mounting:

    • The through-hole mounting style of the DIP design ensures efficient and secure placement on your PCB. This stability is essential for devices that undergo frequent plugging and unplugging.
  9. Enhanced Data Integrity:

    • USB 3.0 technology incorporates improved data encoding techniques, enhancing data integrity during transmission. This results in a more reliable and stable data transfer experience.
  10. Durable Construction:

    • Crafted from high-quality materials, our USB 3.0 Type-A Socket Connector ensures durability and resilience. It is built to withstand the rigors of everyday use, guaranteeing a long lifespan for your devices.

Upgrade your devices to the next level of connectivity – choose our USB 3.0 Type-A Socket Connector for reliable, high-speed data transfer and efficient power delivery. Order now to experience enhanced performance in your electronic designs.
