USB A Male R/A SMT Type 4P
USB A Male R/A SMT Type 4P

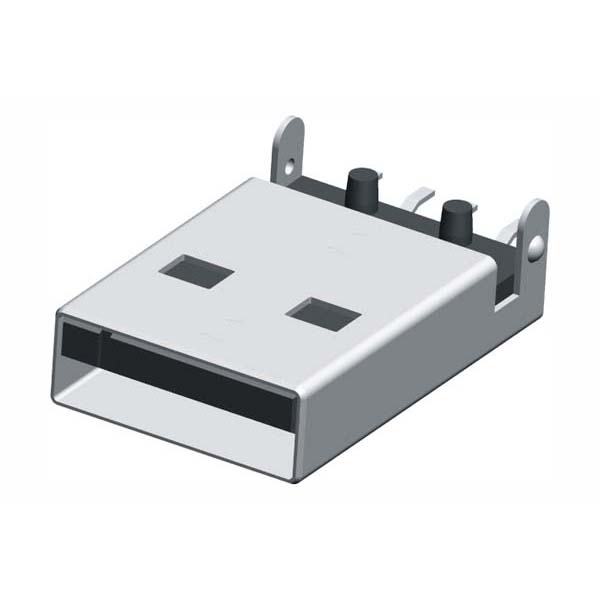

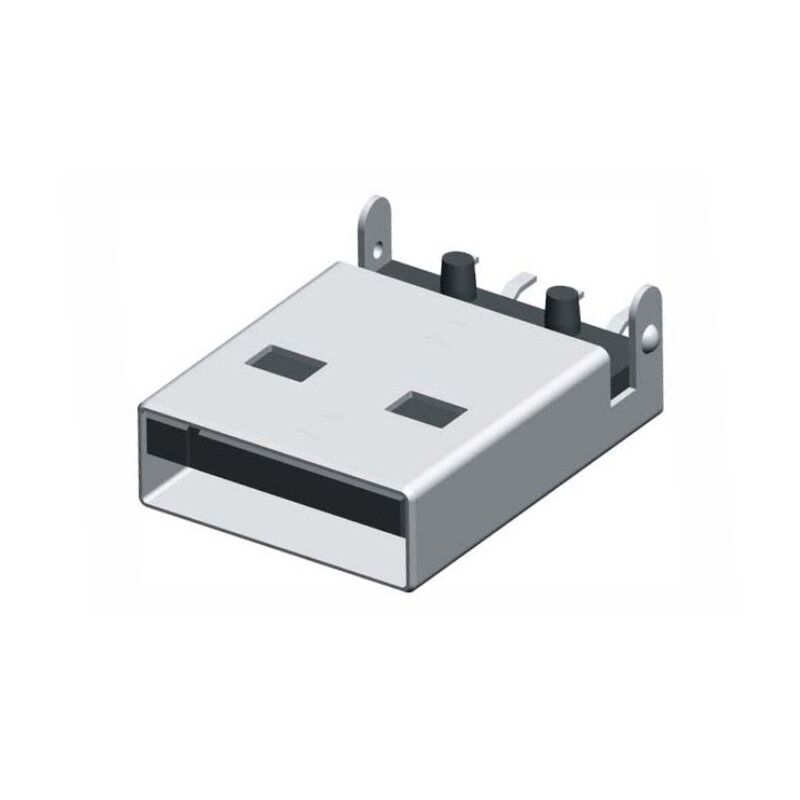

  • USB A Male R/A SMT Type 4P

  • Part No : UBPARSM-04-XX
  • Specifications
    Current Rating:1.0A AC/DC
    Voltage Ratinge:30V AC/DC
    Contact Resistance:20m ohm. Max
    Insulation Resistance:1000Mohm min
    Withstanding Voltage:750V(r.m.s) For one Minute
    Operating Temperature Range:-40°C ~ +105°C
    Insulator:High Temp. Plastic(LCP UL94V-0)
    Conact :Copper Alloy

    Plated:Selective Gold Plated

    Shell:Brass,Nickel Plated 30~50u”

  • Inquiry now
  • Products Drawing

Detailed description

USB A Male Right-Angle (R/A) SMT Type 4P: Compact and Efficient Connectivity for Modern Electronics

Introducing our USB A Male Right-Angle SMT Type 4P connector – a cutting-edge solution designed to offer compact and efficient connectivity for a range of electronic devices. With a right-angle orientation and Surface Mount Technology (SMT), this USB connector ensures optimal performance and streamlined integration into printed circuit boards (PCBs). Explore the standout features that make this USB A Male connector an ideal choice for various electronic designs:

1. Right-Angle Design for Space Optimization:

  • The right-angle orientation of the USB A Male connector is ideal for applications where space optimization is crucial. This design allows for a more compact arrangement of components on the PCB, contributing to a streamlined and efficient layout.

2. Surface Mount Technology (SMT) for Direct PCB Integration:

  • Leveraging Surface Mount Technology, this connector can be directly mounted onto the surface of the PCB. SMT eliminates the need for through-holes, optimizing space on the board and facilitating a more straightforward and efficient manufacturing process.

3. USB Type-A Standard:

  • Adhering to the USB Type-A standard, this connector provides a widely recognized and standardized interface for connecting to various electronic devices. The rectangular shape with a single beveled side ensures compatibility with a range of USB peripherals.

4. 4-Pin Configuration for Essential Connectivity:

  • Featuring a 4-pin configuration, this USB A Male connector supports essential connectivity functions. It is suitable for applications requiring standard USB connections, including data transfer and power delivery to peripherals.

5. Versatile Applications Across Industries:

  • The USB A Male Right-Angle SMT Type 4P connector finds applications across various industries, including consumer electronics, industrial equipment, and automotive devices. Its versatility makes it a go-to choice for manufacturers seeking efficient and reliable USB connectivity.

6. Standardized Pin Configuration for Compatibility:

  • The connector follows a standardized pin configuration, ensuring compatibility across different devices and systems. This standardization promotes interoperability, allowing for easy integration into a variety of electronic products.

7. Efficient Power Delivery:

  • Beyond data transfer, the USB A Male Right-Angle SMT Type 4P supports efficient power delivery. This feature is valuable for charging devices and powering peripherals, offering a versatile solution for different electronic applications.

8. Durable Construction for Long-Term Reliability:

  • Crafted with durability in mind, this USB connector is designed to withstand the rigors of regular use. Its construction ensures long-term reliability, making it suitable for devices that require a stable and enduring USB connection.

9. High-Speed Data Transfer Capabilities:

  • The USB A Male Right-Angle SMT Type 4P connector supports USB specifications such as USB 2.0 or USB 3.0, providing high-speed data transfer capabilities. This is essential for applications that involve the exchange of large files, multimedia content, and data-intensive tasks.

10. Streamlined Connectivity for Seamless Integration: – With its right-angle design and SMT technology, the USB A Male Right-Angle SMT Type 4P connector offers streamlined connectivity, ensuring seamless integration into electronic designs. It is an excellent choice for designers and manufacturers aiming for efficient and space-optimized devices.

Upgrade your electronic designs with our USB A Male Right-Angle SMT Type 4P connector, providing advanced connectivity, space efficiency, and reliable performance. Experience optimal integration and enhanced connectivity in your electronic products. Order now to stay ahead in the dynamic world of electronic design.
