Mini USB Female R/A Shell Dip Type 8P
Mini USB Female R/A Shell Dip Type 8P

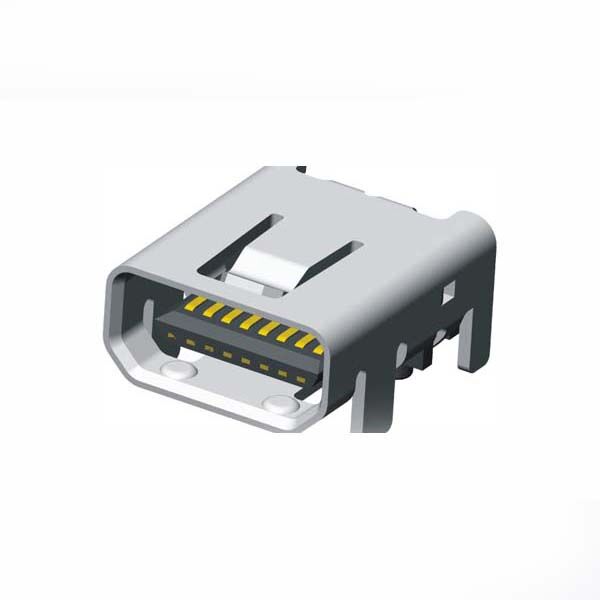

  • Mini USB Female R/A Shell Dip Type 8P

  • Part No : UBSRSM-08A3-TR
  • Specifications
    Current Rating:1.0A AC/DC
    Voltage Ratinge:30V AC/DC
    Contact Resistance:20m ohm. Max
    Insulation Resistance:1000Mohm min
    Withstanding Voltage:750V(r.m.s) For one Minute
    Operating Temperature Range:-40°C ~ +105°C
    Insulator:High Temp. Plastic(LCP UL94V-0)
    Conact :Phosphor Bronze

    Plated:Selective Gold Plated

    Shell:Brass,Nickel Plated 30~50u”

  • Inquiry now
  • Products Drawing

Detailed description

Mini USB Female Right-Angle Shell Dip Type 8P Connector: Compact and Efficient Connectivity for Your Devices

Introducing our Mini USB Female Right-Angle Shell Dip Type 8P Connector – a sophisticated solution designed to provide seamless connectivity for compact electronic devices. With its right-angle design, durable shell, and 8-pin configuration, this connector offers efficient data transfer and power delivery. Explore the features that make it an exceptional choice:

1. Compact Right-Angle Design:

  • The Mini USB Female Connector features a space-saving right-angle design, making it ideal for applications where space optimization is crucial. This design efficiently utilizes printed circuit board (PCB) space, contributing to the overall compactness of your device.

2. Durable Shell Construction:

  • Crafted with a durable shell, this connector ensures robustness and protection for internal components. The rugged construction makes it suitable for applications where devices may experience vibrations, movement, or external stresses.

3. 8-Pin Configuration for Versatile Connectivity:

  • With an 8-pin configuration, this Mini USB Female Connector supports a range of functionalities, including advanced data transfer and power delivery. The expanded pin setup provides versatility, accommodating diverse connectivity needs for various applications.

4. Versatile Connectivity Across Devices:

  • This connector is well-suited for a wide range of applications, including cameras, portable hard drives, and other handheld electronic devices. Its compatibility makes it a reliable choice for manufacturers aiming to integrate Mini USB connectivity into their products.

5. Efficient Data Transfer and Charging:

  • The Mini USB Female Connector excels in both data transfer and power delivery. Optimized for efficient charging and syncing of devices, it establishes a stable and reliable connection for essential functions.

6. Right-Angle Configuration for Easy Cable Routing:

  • The right-angle design not only saves space but also facilitates efficient cable routing. It contributes to a neat and organized layout on PCBs, enhancing the overall aesthetics and cable management of your electronic devices.

7. Dip Type for Secure PCB Mounting:

  • Designed with Dual In-line Package (DIP) technology, this connector ensures secure mounting on PCBs. The DIP configuration provides stability, making it suitable for devices subjected to vibrations or movement.

8. Standardized Pin Configuration:

  • The standardized pin configuration of this connector ensures compatibility across different devices. This standardization promotes interoperability, allowing for seamless integration into diverse electronic products.

9. Streamlined Cable Management:

  • The right-angle design not only enhances aesthetics but also facilitates streamlined cable management. Reduce clutter and improve the overall organization of your electronic devices, particularly beneficial for applications where neat cable routing is essential.

10. Future-Ready Connectivity: – While newer USB standards continue to evolve, the Mini USB Female Connector remains relevant for certain legacy devices and specific applications. This connector provides a reliable and cost-effective solution, offering compatibility with existing devices while aligning with future-ready designs.

Upgrade your electronic designs with our Mini USB Female Right-Angle Shell Dip Type 8P Connector, offering a compact, efficient, and reliable solution for connectivity in portable devices. Order now to experience seamless integration and enhanced performance in your electronic products.
