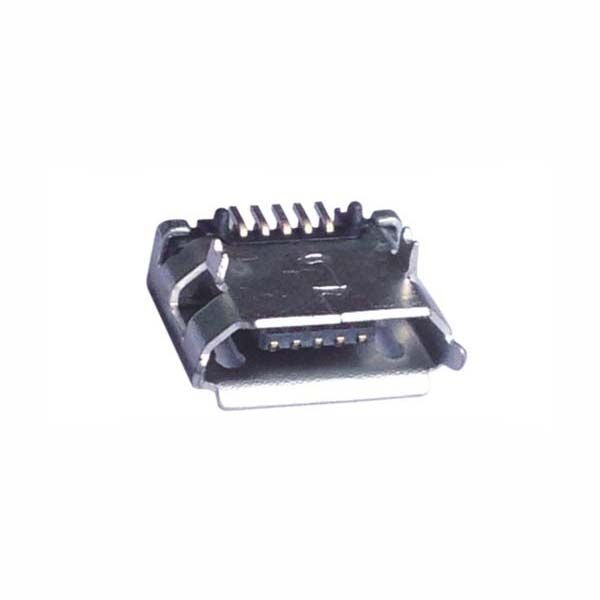

Micro USB Male R/A SMT Type 5P
Micro USB Male R/A SMT Type 5P
  • Micro USB Male R/A SMT Type 5P

  • Part No : MUBPRSM1-05
  • Specifications
    Current Rating:1.5A AC/DC
    Voltage Ratinge:30V AC/DC
    Contact Resistance:30m ohm. Max
    Insulation Resistance:1000Mohm min
    Withstanding Voltage:600V(r.m.s) For one Minute
    Operating Temperature Range:-40°C ~ +85°C
    Insulator:High Temp. Plastic(LCP UL94V-0)
    Conact :Copper Alloy

    Plated:Selective Gold Plated

    Shell:Brass,Matte Tin Plated

  • Inquiry now
  • Products Drawing

Detailed description

Micro USB is a popular and widely adopted standard for small-sized USB connectors designed to provide a compact and versatile solution for various portable devices.

Introducing our Micro USB Male Right-Angle Surface Mount Type 5P Connector, a versatile solution designed for seamless connectivity in compact electronic devices. This connector combines a right-angle design with surface-mount technology (SMT), providing a space-efficient and reliable solution for various applications. Explore the key features and benefits:

1. Compact and Space-Efficient Design:

  • Our Micro USB Male Right-Angle SMT Type 5P Connector features a compact and space-saving design. The right-angle configuration ensures efficient use of space on printed circuit boards (PCBs), making it ideal for devices with limited real estate.

2. Right-Angle Configuration for Versatile Installations:

  • The right-angle design offers flexibility in device design and installation. It allows for efficient cable routing and contributes to a neat and organized layout on PCBs, enhancing the overall aesthetics of electronic devices.

3. Surface Mount Technology (SMT) Integration:

  • Engineered with Surface Mount Technology (SMT), this connector simplifies the manufacturing process. The SMT design allows for precise and automated placement on PCBs, contributing to streamlined production workflows and ensuring consistent quality.

4. 5-Pin Configuration for Enhanced Connectivity:

  • With a 5-pin configuration, this Micro USB Male Connector supports a range of functionalities, including data transfer and power delivery. The enhanced pin configuration ensures versatile connectivity options for various applications.

5. Versatile Applications Across Devices:

  • This connector is well-suited for a diverse range of applications, including smartphones, tablets, digital cameras, and other portable electronic devices. Its compatibility makes it a reliable choice for manufacturers aiming to integrate Micro USB connectivity into their products.

6. Reliable and Durable Construction:

  • Crafted from high-quality materials, our Micro USB Male Connector is designed for durability and reliability. It can withstand the demands of frequent insertions and removals, ensuring a long lifespan and consistent performance.

7. Efficient Power and Data Transfer:

  • The Micro USB Male Connector supports both power delivery and data transfer. It is optimized for efficient charging and syncing of devices, providing a reliable and stable connection for essential functions.

8. Universal Micro USB Standard Compliance:

  • Compliant with the universal Micro USB standard, this connector ensures compatibility with a wide range of devices. It adheres to industry standards, promoting interoperability and ease of integration into diverse electronic products.

9. Streamlined Cable Management:

  • The right-angle design facilitates streamlined cable management, reducing clutter and improving the overall organization of electronic devices. This is particularly beneficial for applications where neat and efficient cable routing is essential.

10. Future-Proof Connectivity: – While newer standards like USB Type-C are emerging, Micro USB remains a widely adopted and supported standard. This connector provides a reliable and cost-effective solution for manufacturers seeking compatibility with existing devices while considering future-proof designs.

Upgrade your electronic designs with our Micro USB Male Right-Angle SMT Type 5P Connector, offering a compact, efficient, and reliable solution for connectivity in portable devices. Order now to experience seamless integration and enhanced performance in your electronic products.
