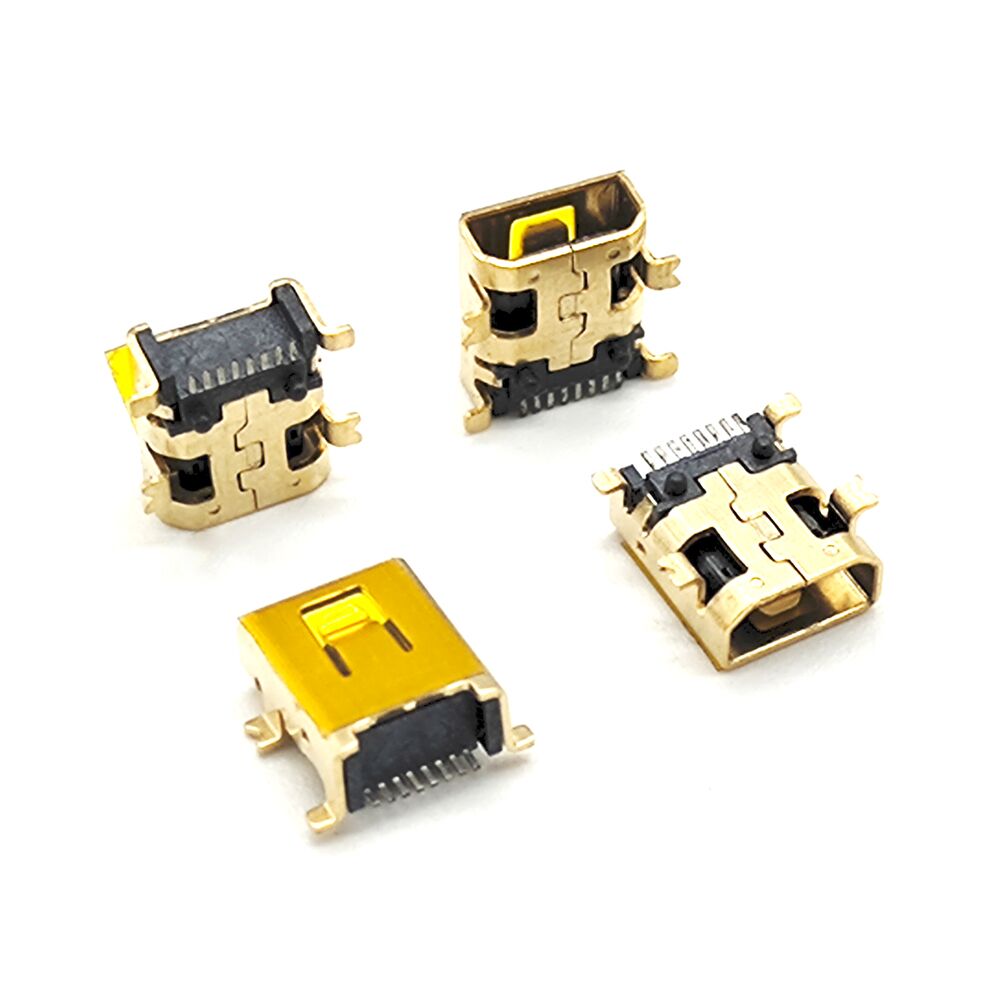

mini USB connector socket 8P Right Angle SMT Type
mini USB connector socket 8P Right Angle SMT Type
  • mini USB connector socket 8P Right Angle SMT Type

  • Part No : UBSRSM-08A2-TR
  • Current Rating:1.0A AC/DC
    Voltage Ratinge:30V AC/DC
    Contact Resistance:50m ohm. Max
    Insulation Resistance:100Mohm min
    Withstanding Voltage:100V(r.m.s) For one Minute
    Operating Temperature Range:-40°C ~ +105°C
    Insulator:High Temp. Plastic(LCP UL94V-0)
    Insulator Color:Black
    Conact :Phosphor Bronze

    Plated:Gold plated

    Shell:Brass Nickel plated

  • Inquiry now
  • Products Drawing

Detailed description

Melissa Lee


mini USB connector socket 8P Right Angle  SMT Type


Connector Type
Mini USB
Connector Type
USB – mini B
Number of Contacts
Mini USB Socket
Mounting Type
Surface Mount, Right Angle
Number of Ports
Tape and Reel

Explore Compact Connectivity with Our Mini USB Connector Socket: 8P Right Angle SMT Type – Streamlined Design for Efficient Device Integration

Introducing our Mini USB Connector Socket, designed for seamless and compact connectivity. With 8 pins, a right-angle configuration, and Surface Mount Technology (SMT) integration, this connector offers a space-saving solution for modern electronic devices, ensuring efficient and reliable connections.

Key Features:

  1. Compact Design for Space Efficiency:

    • Our Mini USB Connector Socket features a compact design, making it ideal for devices with limited space. The streamlined form factor allows for efficient integration into small and portable electronic devices.
  2. 8-Pin Configuration:

    • With an 8-pin configuration, this connector ensures reliable connectivity while providing versatility for various applications. The pins support data transfer, power delivery, and other functionalities essential for device performance.
  3. Right-Angle Configuration:

    • The right-angle design of the connector allows for convenient cable insertion in tight spaces. This feature is particularly useful in scenarios where a low-profile and space-efficient connection is required.
  4. Surface Mount Technology (SMT) Integration:

    • Engineered for Surface Mount Technology (SMT), this connector streamlines the manufacturing process. SMT integration ensures precise and reliable placement on printed circuit boards (PCBs), contributing to overall manufacturing efficiency.
  5. Efficient Through-Hole Mounting:

    • The through-hole mounting style of the SMT design ensures secure placement on your PCB. This stability is crucial for devices subjected to frequent insertions and removals, providing a reliable and durable connection.
  6. Versatile 8-Pin Connectivity:

    • The 8-pin configuration offers versatile connectivity options, accommodating various functionalities required by modern electronic devices. This includes data transfer, charging, and additional features crucial for device performance.
  7. Durable and Reliable Construction:

    • Crafted from high-quality materials, our Mini USB Connector Socket ensures durability and reliability. It can withstand the rigors of daily use, providing a long lifespan for your electronic devices.
  8. Versatility Across Devices:

    • This Mini USB Connector Socket is suitable for a range of applications, including smartphones, cameras, MP3 players, and other portable electronic devices. Its versatility makes it a valuable component for diverse electronic designs.
  9. Space-Saving Integration:

    • The compact size and right-angle design contribute to space-saving integration on your PCB. This is crucial for devices where efficient use of space is a priority, allowing for sleek and modern design aesthetics.
  10. Efficient Cable Management:

    • The right-angle configuration not only saves space but also contributes to efficient cable management. This is particularly beneficial for devices where cable organization and aesthetics are important considerations.

Upgrade your electronic designs with our Mini USB Connector Socket, offering a space-efficient and reliable solution for seamless connectivity. Order now to experience streamlined design and efficient integration in your compact electronic devices.
