2.54mm PCB Socket Dip Type Double Row H=5.0/7.2/11.0mm
2.54mm PCB Socket Dip Type Double Row H=5.0/7.2/11.0mm

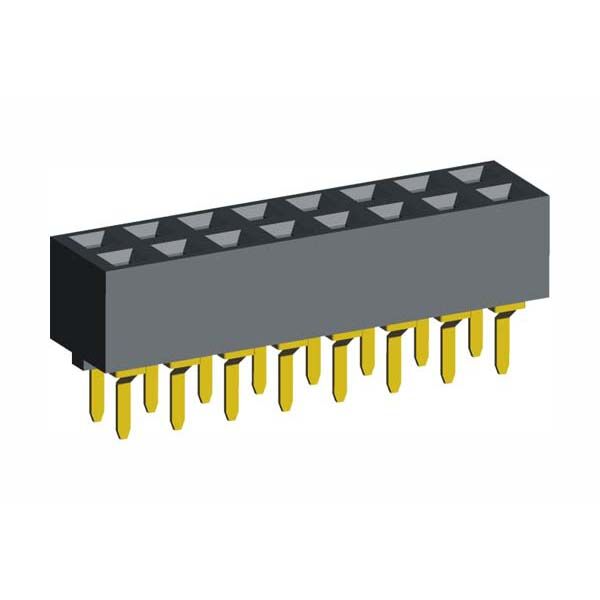

  • 2.54mm PCB Socket Dip Type Double Row H=5.0/7.2/11.0mm

  • Part No : PSVD254-XXG-72
  • Specifications
    Current Rating:3.0A AC/DC
    Voltage Ratinge:250V AC/DC
    Contact Resistance:20m ohm. Max
    Insulation Resistance:1000Mohm min
    Withstanding Voltage:600V(r.m.s) For one Minute
    Operating Temperature Range:-40°C ~ +105°C
    Insulator:High Temp. Plastic(PBT UL94V-0)
    Conact :Copper Alloy

    Plated:Gold Plated

    Inquiry quotation: provide Plastic Height and Plating requiremen

  • Inquiry now
  • Products Drawing

Detailed description

Female header connectors are a crucial part of the interconnectivity in electronic systems, allowing for the creation of reliable and secure connections on printed circuit boards (PCBs) or between different modules and components.

Optimize your electronic designs with our advanced 2.54mm PCB Socket, featuring a Dip Type Double Row configuration with height options of 5.0mm, 7.2mm, and 11.0mm. Meticulously engineered for reliability and versatility, this connector offers precise connectivity tailored to your project’s specific requirements.

Key Features:

  • Double Row Configuration: Our 2.54mm PCB Socket boasts a Double Row design, providing increased pin density for versatile connectivity options. Ideal for applications demanding higher connectivity within a compact form factor.

  • Standard 2.54mm Pitch: With a standardized 2.54mm pitch, this PCB Socket ensures compatibility with industry norms, offering a reliable solution for various electronic applications. Experience consistent performance with this widely adopted pitch.

  • Dip Type Construction: The Dip Type design facilitates easy through-hole mounting on your PCB, ensuring stability and ease of assembly. This construction is ideal for applications where a secure and robust connection is paramount.

  • Adjustable Height Options (H=5.0/7.2/11.0mm): Choose from multiple height options (5.0mm, 7.2mm, and 11.0mm) to align with your specific design requirements. This customization allows for flexibility in your PCB layouts while maintaining stability.


  • Prototyping and Development: Ideal for breadboarding and prototyping electronic circuits, our 2.54mm PCB Socket Dip Type Double Row suits various development phases with efficiency and reliability.

  • PCB Integration: Enhance your PCB layouts with the reliability of a double-row socket. Well-suited for applications where increased pin count and space optimization are essential.

  • Electronics Projects: Trusted by engineers and hobbyists, our 2.54mm PCB Socket excels in various electronic projects, providing a versatile solution for different applications.

Order Today for Tailored Connectivity:

Upgrade your electronic designs with our 2.54mm PCB Socket Dip Type Double Row, available in adjustable height options. Experience the benefits of a Double Row configuration, standard pitch, and customizable height. Order now to achieve precision and reliability in your electronic projects.
