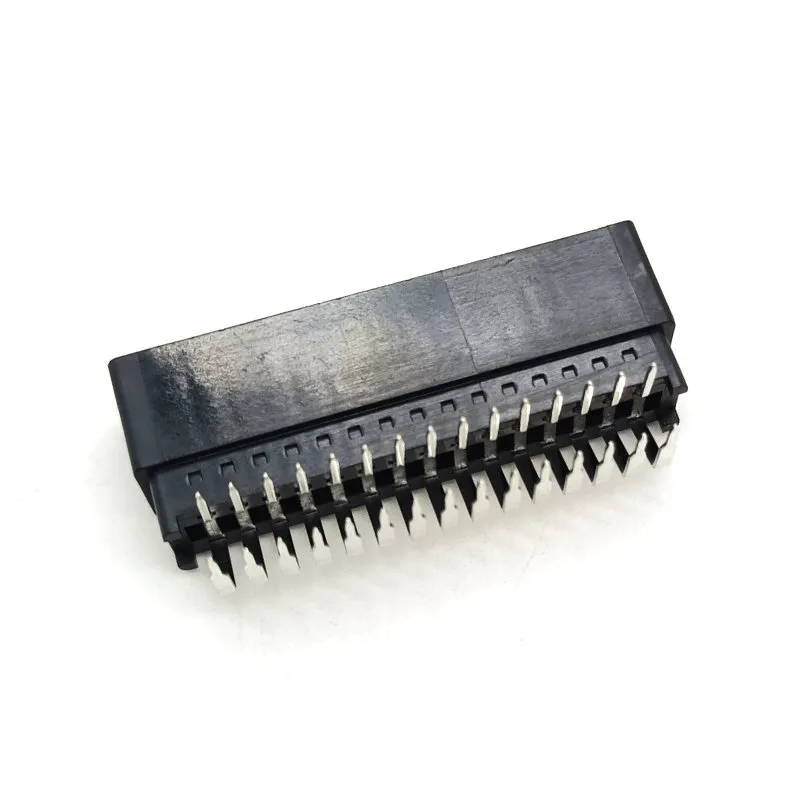

30 Position Female Connector Non Specified – Dual Edge Selective Gold 0.100″ (2.54mm) Black for TE Connectivity AMP Connectors Standard Edge II series 5650118-1
30 Position Female Connector Non Specified – Dual Edge Selective Gold 0.100″ (2.54mm) Black for TE Connectivity AMP Connectors Standard Edge II series 5650118-1 30 Position Female Connector Non Specified – Dual Edge Selective Gold 0.100″ (2.54mm) Black for TE Connectivity AMP Connectors Standard Edge II series 5650118-1

  • 30 Position Female Connector Non Specified – Dual Edge Selective Gold 0.100″ (2.54mm) Black for TE Connectivity AMP Connectors Standard Edge II series 5650118-1

  • Part No : PCIR254-30-P38

  • Electric Specifications

    1. Current Rating:2.0Amps
    2. Rating Voltage: 125V AC
    3. Insulation Resistance:500M Ohm Min At DC 500V
    4. Contact Resistance:20m Ohm Max At DC 100m Amps
    5. Withstanding Voltage:1 Minute At 1500V r.m.s Min
    6. Temperature Range:-55C°~105C°

    Materials:

    1. Insulator:High Temp. Plastic(PBT 94V-0)
    2. Insulator Color:black
    3. Terminal :Coppy Alloy
    4. Plating:Selective Gold Plated

  • Inquiry now
  • Products Drawing

Detailed description


Melissa Lee

Email:sales05@dghoyato.com
Skype:limiao425
Phone/Wechat/Whatsapp:86-13337908889



30 Position Female Connector Non Specified – Dual Edge Selective Gold 0.100″ (2.54mm) Black for TE Connectivity AMP Connectors Standard Edge II series 5650118-1

Connector Type
 Card Edge Connectors
 P/N
 PCIR254-30-P38
Pitch – Mating
2.54mm
Number of Positions
04-100
Number of rows
 2
Flammability
PBT 94V-0
Type
Right Angle
Orginal P/N
TE Connectivity AMP Connectors Standard Edge II series 5650118-1
