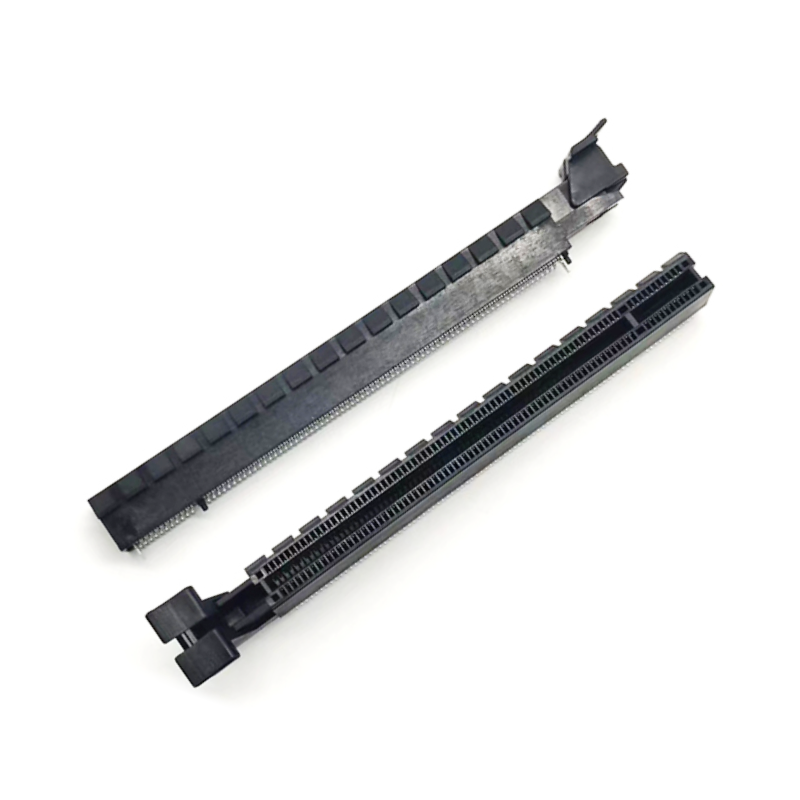

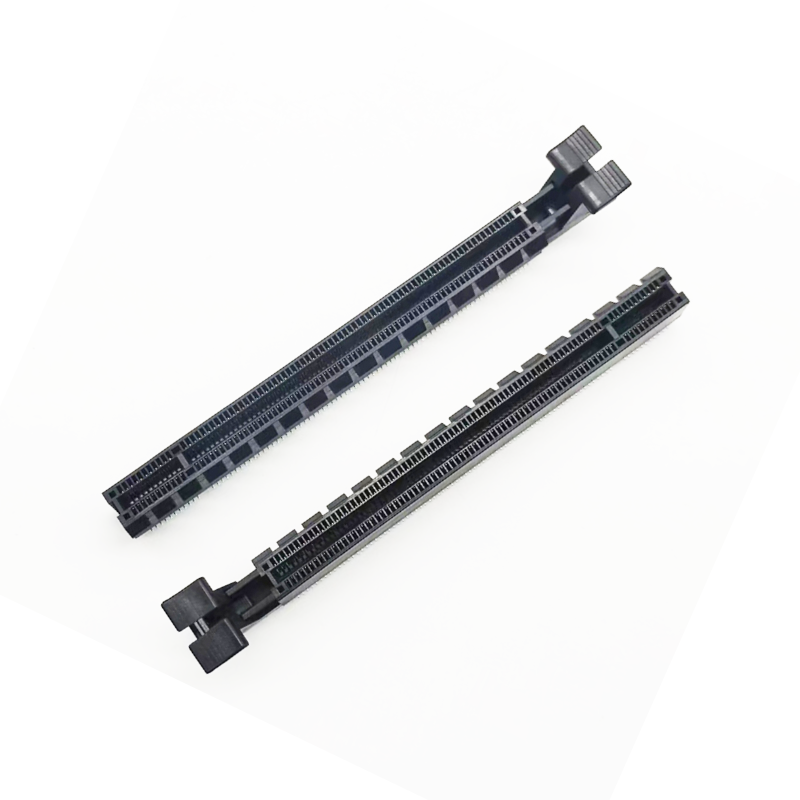

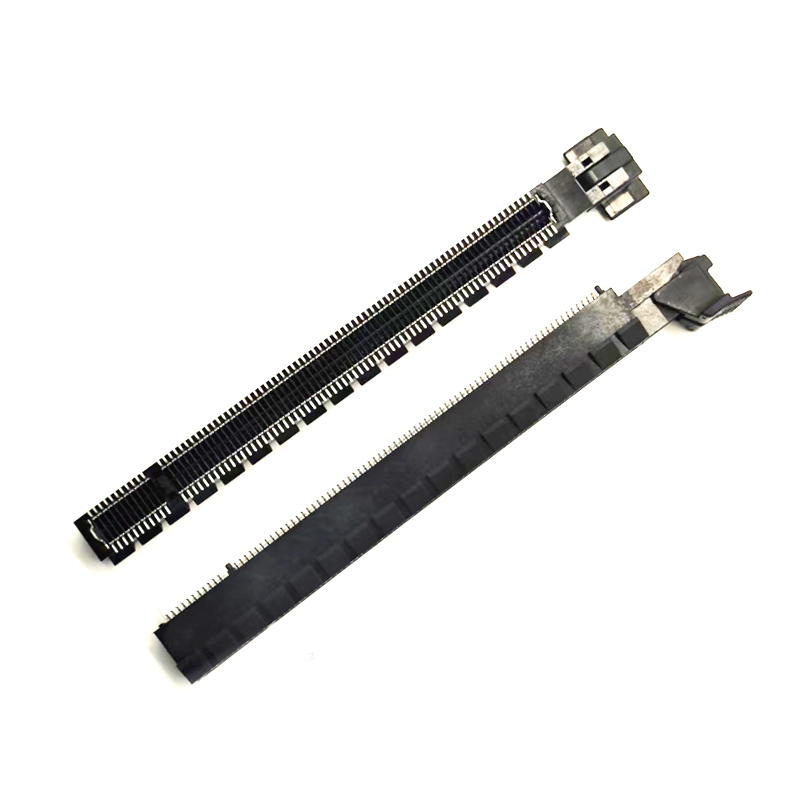

PCI & PCI Express Connectors X16 164 Position, .039 in [1 mm] Centerline, Vertical 3-2337939-8 card edge connector
PCI & PCI Express Connectors X16 164 Position, .039 in [1 mm] Centerline, Vertical 3-2337939-8 card edge connector PCI & PCI Express Connectors X16 164 Position, .039 in [1 mm] Centerline, Vertical 3-2337939-8 card edge connector PCI & PCI Express Connectors X16 164 Position, .039 in [1 mm] Centerline, Vertical 3-2337939-8 card edge connector
  • PCI & PCI Express Connectors X16 164 Position, .039 in [1 mm] Centerline, Vertical 3-2337939-8 card edge connector

  • Part No : PCIEVSM10-164G15-CK-GY
  • 1. Current Rating : 1.1Amps
    2. Voltage Rating : 250V AC
    3. Contact Resistance : 30m Ohm Max At DC 100m Amps
    4. Insulation Resistance : 1000M Ohm Min At DC 500V
    5. Withstanding Voltage : 1 Minute At 750V r.m.s Min
    6. Operating Temperature Range : -40°C ~ 85°C
    Meterials:
    1.Insulator:High Temp. Plastic (Lcp UL94V-0)
       Color :Black
    2.Terminal: Copper Alloy
    3.Plating:Selective Gold Plated


  • Inquiry now
  • Products Drawing

Detailed description


PCI Express x16 connectors support high-performance graphics and data processing, delivering unparalleled capabilities for gaming, graphics rendering, and high-end computing tasks.



Pcie connectors are generally used for connecting one PCB to another, the edge connector is plugged in to a socket on another PCB thus making the connection. Examples of this can be seen on a computer motherboard where you plug a graphics card with a gold edge connector into the socket on the mother board.



About card edge connector

Card edge connectors are a crucial component in modern electronic devices, providing a reliable and secure connection between circuit boards. One of the most common types of card edge connectors is the PCIe card edge connector, which is widely used in computer systems to enable high-speed data transfer between components.

The PCIe card edge connector is a key interface for connecting expansion cards, such as graphics cards, network cards, and storage devices, to the motherboard of a computer. It features a row of electrical contacts along the edge of the card, which mate with corresponding contacts on the motherboard to establish a connection. This design allows for high-speed data transfer rates, making PCIe card edge connectors ideal for applications that require fast and efficient communication between devices.

In addition to their use in computer systems, card edge connectors are also found in a wide range of other electronic devices, including industrial equipment, medical devices, and telecommunications systems. Their versatility and reliability make them a popular choice for designers and manufacturers looking to create robust and efficient connections between circuit boards.

One of the key advantages of card edge connectors is their simplicity and ease of use. Unlike other types of connectors, such as soldered connections or ribbon cables, card edge connectors can be easily inserted and removed from a circuit board without the need for specialized tools or equipment. This makes them ideal for applications where components may need to be swapped out or upgraded frequently, such as in server systems or test equipment.

Another advantage of card edge connectors is their durability and reliability. The solid connection between the contacts on the card edge and the motherboard ensures a stable and secure connection, even in high-vibration or high-temperature environments. This makes card edge connectors ideal for applications where reliability is critical, such as in aerospace or military systems.

In recent years, the use of card edge connectors has become increasingly prevalent in a wide range of applications, driven by the growing demand for high-speed data transfer and increased connectivity in electronic devices. The development of new technologies, such as PCIe 4.0 and PCIe 5.0, has further expanded the capabilities of card edge connectors, enabling even faster data transfer rates and improved performance in a variety of applications.

Overall, card edge connectors are a versatile and reliable solution for creating secure and efficient connections between circuit boards in electronic devices. Their ease of use, durability, and high-speed data transfer capabilities make them an ideal choice for designers and manufacturers looking to create cutting-edge electronic systems. As technology continues to advance, the use of card edge connectors is likely to become even more widespread, driving innovation and enabling new possibilities in the world of electronics.



Key Features:

  1. Customized Excellence: Tailored to perfection, this connector meets your exact specifications, ensuring a seamless fit for your GPU and computer mainboard.
  2. Eye-Catching Blue Design: The striking blue color not only adds aesthetics but also helps identify and organize your connectors with ease.
  3. Straight DIP Type: Designed for straightforward installation, this connector simplifies the setup process, saving you valuable time.
  4. Right Key Orientation: With the right key orientation, you can trust that your connectors will align effortlessly and securely.



Why Choose Us?

  • Quality Commitment: Our connectors are manufactured with a commitment to the highest industry standards, ensuring long-lasting and dependable performance.
  • Customization Expertise: We excel at creating connectors tailored to your precise needs, providing the perfect fit for your projects.
  • Responsive Support: Our dedicated support team is readily available to address your technical queries and offer guidance as required.
