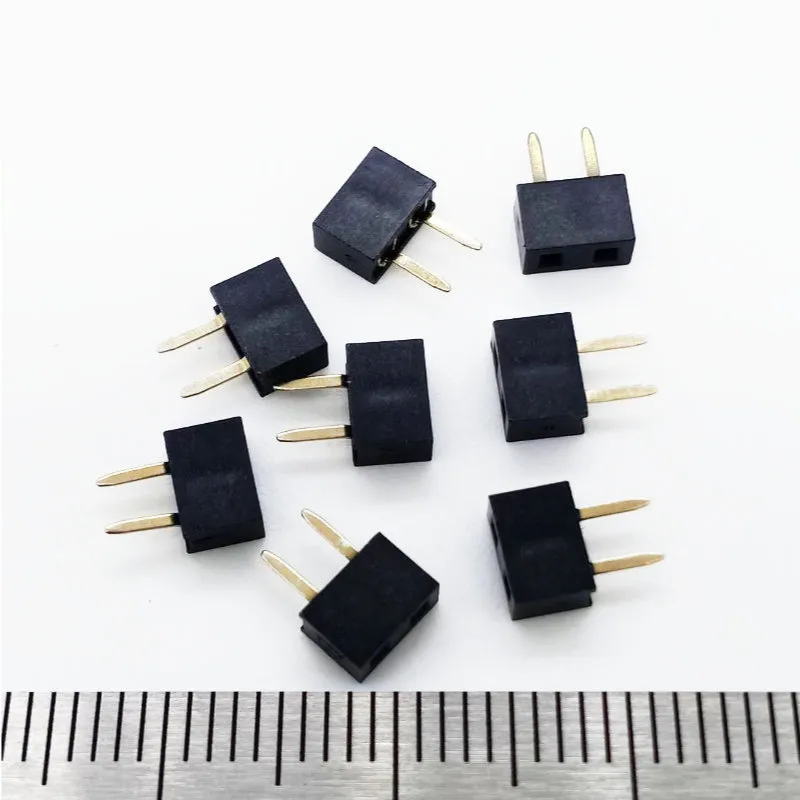

2.54mm Single Row Straight Socket Strip 3.5 Profile equivalent to SSW-1 series
Part No : PSV254-02G-35
Current Rating:3.0A AC/DC
Voltage Ratinge:250V AC/DC
Contact Resistance:20m ohm. Max
Insulation Resistance:1000Mohm min
Withstanding Voltage:600V(r.m.s) For one Minute
Operating Temperature Range:-40°C ~ +105°C
Materials:
Insulator:PBT UL94V-0
Color:Black
Conact :Copper Alloy
Exploring the 2.54mm Single Row Straight Socket Strip 3.5 Profile Equivalent to SSW-1 Series
In the intricate world of electronics, connectors play a pivotal role in ensuring seamless integration and reliable connections between various components. Among the myriad of connectors available, the 2.54mm single row straight socket strip, particularly the 3.5 profile which is equivalent to the SSW-1 series, stands out for its precision, reliability, and versatility. This article delves into the features, applications, and benefits of this essential component, providing a thorough understanding of its role in modern electronics.
Understanding the 2.54mm Single Row Straight Socket Strip
The 2.54mm single row straight socket strip is a connector type characterized by its pin spacing of 2.54mm (0.1 inches), which is a standard pitch in the electronics industry. This spacing makes it compatible with a wide range of applications, from simple DIY electronics projects to complex industrial systems.
Profile: The 3.5 profile refers to the height of the socket strip, which is crucial for fitting into specific designs and ensuring proper alignment with other components.
Equivalent to SSW-1 Series: The SSW-1 series is a well-known series of socket strips that set a standard in the industry for quality and reliability. Being equivalent means that the 2.54mm single row straight socket strip 3.5 profile meets the same standards and specifications.
Key Features
Standard Pitch (2.54mm):
Description: The standard 2.54mm pitch is widely adopted in various electronic applications, ensuring broad compatibility.
Applications: Suitable for breadboards, PCBs, and other prototyping and production environments.
Single Row Configuration:
Description: The pins are arranged in a single row, making it easy to connect and disconnect without taking up much space.
Applications: Ideal for applications where space is limited and straightforward connections are required.
Durable Construction:
Description: Made from high-quality materials that provide reliable electrical connections and mechanical stability.
Applications: Used in environments where connectors need to withstand repeated use and varying conditions.
Compatibility with SSW-1 Series:
Description: Ensures that the socket strip meets industry standards and can be used as a direct replacement for the SSW-1 series.
Applications: Provides a reliable alternative for projects and products that specify the SSW-1 series.
Applications
Prototyping and Development:
Use: Widely used in prototyping environments for testing and development purposes.
Benefits: Allows easy connection and disconnection of components, facilitating rapid testing and iteration.
Consumer Electronics:
Use: Found in various consumer electronics for internal connections, such as in computers, smartphones, and home appliances.
Benefits: Ensures reliable connections in devices that are subject to frequent use and handling.
Industrial Equipment:
Use: Employed in industrial automation systems, control panels, and machinery.
Benefits: The durable construction and reliable performance make it suitable for harsh industrial environments.
Medical Devices:
Use: Used in medical diagnostic equipment, monitoring systems, and portable medical devices.
Benefits: Provides reliable and precise connections necessary for critical medical applications.
Benefits
Ease of Use: The standard pitch and single row configuration make these headers easy to use and integrate into various projects.
Versatility: Compatible with a wide range of applications, from simple prototypes to complex industrial systems.
Reliability: Constructed from high-quality materials, these headers provide stable and reliable connections.
Cost-Effective: Widely available and affordable, making them a cost-effective solution for many applications.
Comparison with SSW-1 Series
The 2.54mm pitch 6 pin female header single row straight pin header is often compared to the SSW-1 series due to their similar specifications. Both offer reliable connections, standard pin spacing, and robust construction. The equivalence ensures that designers and engineers can use these headers interchangeably in applications that specify the SSW-1 series without compromising on performance or compatibility.
Leading Manufacturers
TE Connectivity:
Overview: Offers a wide range of high-quality connectors, including 2.54mm pitch headers that meet industry standards.
Products: Known for durable and reliable connectors suitable for various applications.
Molex:
Overview: Provides innovative connector solutions, including a comprehensive range of 2.54mm pitch headers.
Products: Focuses on delivering high-density and reliable connectors for diverse applications.
Amphenol:
Overview: A major player in the connector market, offering robust and versatile 2.54mm pitch headers.
Products: Their connectors are known for durability and performance in challenging environments.
Harwin:
Overview: Known for precision connectors, Harwin provides reliable 2.54mm pitch headers suitable for various applications.
Products: Offers a range of connectors designed for high reliability and durability.
Technical Specifications
When choosing a 2.54mm single row straight socket strip 3.5 profile equivalent to the SSW-1 series, understanding the technical specifications is crucial for ensuring compatibility and performance. Here are some of the key specifications:
Pitch: 2.54mm
Number of Positions: Typically ranges from 1 to 40 positions, depending on the specific application needs.
Mounting Type: Through-hole or surface mount, providing flexibility in PCB design.
Contact Material: Usually made from phosphor bronze or brass with gold or tin plating to ensure reliable conductivity and corrosion resistance.
Insulation Material: Commonly made from high-temperature thermoplastics such as PBT or LCP, which offer durability and stability.
Installation and Maintenance
Installation:
Soldering: The socket strips can be easily soldered onto PCBs using standard soldering techniques. Ensure that the PCB pads are clean and properly tinned to achieve a reliable solder joint.
Alignment: Proper alignment is crucial during installation to ensure that the pins fit perfectly into the corresponding holes on the PCB. Using alignment tools or jigs can help achieve precise placement.
Maintenance:
Cleaning: Keep the connectors clean and free from dust and debris. Use compressed air or a soft brush to remove any particles.
Inspection: Regularly inspect the connectors for signs of wear, corrosion, or damage. Replace any connectors that show significant wear to maintain reliable connections.
Handling: Handle the connectors with care to avoid bending the pins or damaging the plastic housing. Use appropriate tools to connect and disconnect the headers to prevent excessive force.
Conclusion
The 2.54mm single row straight socket strip 3.5 profile, equivalent to the SSW-1 series, is a vital component in the electronics industry. Its standard pitch, versatile configuration, and durable construction make it suitable for a wide range of applications, from prototyping to industrial systems. By ensuring reliable connections and ease of use, these connectors play a critical role in the success of electronic designs.
Whether you are working on consumer electronics, industrial automation, medical devices, or telecommunications, the 2.54mm socket strip provides the reliability and performance needed to meet the demands of modern technology. With leading manufacturers like TE Connectivity, Molex, Amphenol, and Harwin offering high-quality options, you can trust these connectors to deliver consistent and reliable performance in your projects.
