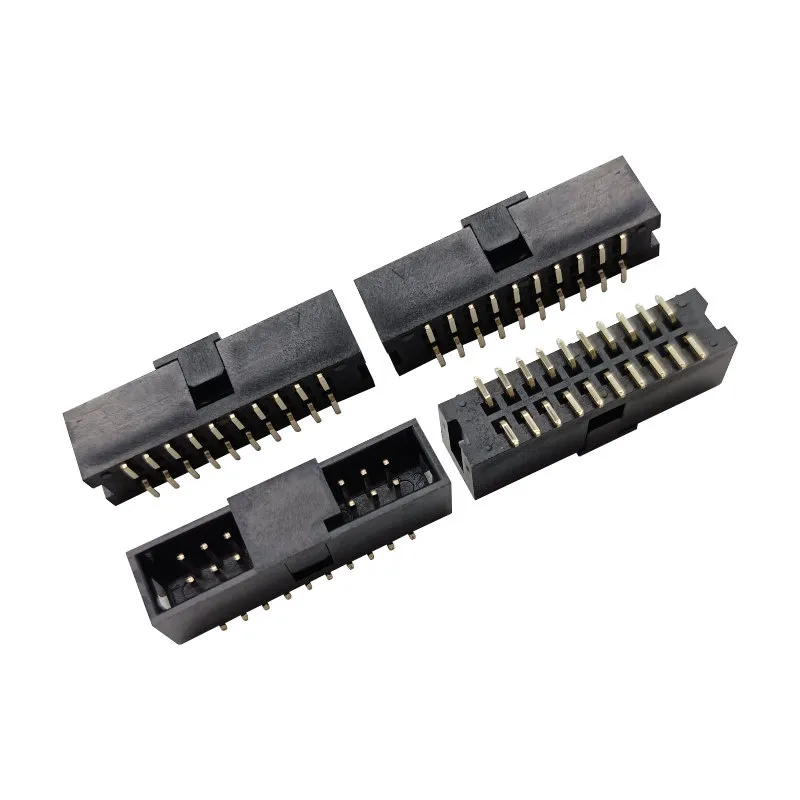

The 20-pin box header is a compact electrical connector with 20 precisely aligned pins, offering a reliable and space-saving solution for electronic connections.
The 20-pin box header is a compact electrical connector with 20 precisely aligned pins, offering a reliable and space-saving solution for electronic connections.

  • HTSS-110-01-L-DV Flex Stack HTSS Connector Header Surface Mount 10 position 0.100″ 2.54mm box header HTSS-110, 20 pin box header

  • Part No : BHSM254-20G-CR
    • Current Rating:3.0A AC/DC
    • Voltage Ratinge:250V AC/DC
    • Contact Resistance:20m ohm. Max
    • Insulation Resistance:1000Mohm min
    • Withstanding Voltage:600V(r.m.s) For one Minute
    • Operating Temperature Range:-40°C ~ +105°C
    • Materials:
      Insulator:High Temp. Plastic(Nylon 6T UL94V-0)
      Color:Black
      Conact :Coppy Alloy

      Plated:Gold Plated


  • Inquiry now
  • Products Drawing

Detailed description


The 20-pin box header is a compact electrical connector with 20 precisely aligned pins, offering a reliable and space-saving solution for electronic connections.

Melissa Lee

Email:sales05@dghoyato.com
Skype:limiao425
Phone/Whatsapp:86-13337908889

HTSS-110-01-L-DV Flex Stack HTSS Connector Header Surface Mount 10 position 0.100″ 2.54mm box header HTSS-110



Connector Type
Samtec Inc.Flex Stack,HTSS-110,HTSS-110-01-L-DV,2.54mm box header Surface Mount type,shrouded 2.54mm post header
HOYATO P/N
BHSM254-10G-CR


Pitch – Mating
2.54mm
Number of Positions
6-40
Insulation Height
8.85mm
Mounting Type
Surface Mount
Package
C&R 300PCS one Reel
Finish
Gold Plated
