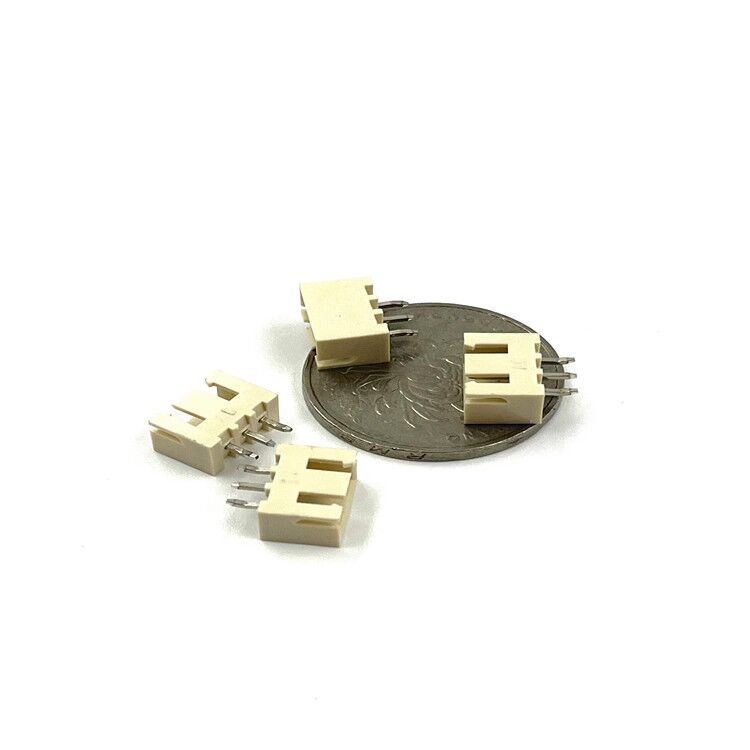

XH B3B-XH-A CONN HEADER VERT 3POS 2.5MM WIRE TO BOARD CONNECTOR

XH B3B-XH-A CONN HEADER VERT 3POS 2.5MM WIRE TO BOARD CONNECTOR

XH B3B-XH-A CONN HEADER VERT 3POS 2.5MM WIRE TO BOARD CONNECTOR
Part No : WFVJ25-03
- Current Rating:3.0A AC DC

  Voltage Rating:250V AC.DC

  Contact resistance:20m ohm. Max

  INSULATION RESISTANCE:1000m ohm Min

  Withstanding Volatge:1000V AC for one minute

  Operating Temperature:-40°C-85°C

  Insulator:Nylon 66(UL94V-0)

  Insulator color:White
Inquiry now
Products Drawing

Detailed description

Melissa Lee

Email:sales05@dghoyato.com
Skype:limiao425
Phone/Whatsapp:86-13337908889

XH B3B-XH-A CONN HEADER VERT 3POS 2.5MM WIRE TO BOARD CONNECTOR

Connector Type	Headers, Male Pins
Orginal P/N	JST XH,JST XH B3B-XH-A,B3B-XH-A(LF)(SN)
Pitch – Mating	2.5mm
Number of Positions	2-20
Number of rows	1
Mounting Type	Through Hole
Contact Material	Brass
Plasting	Tin Plated
