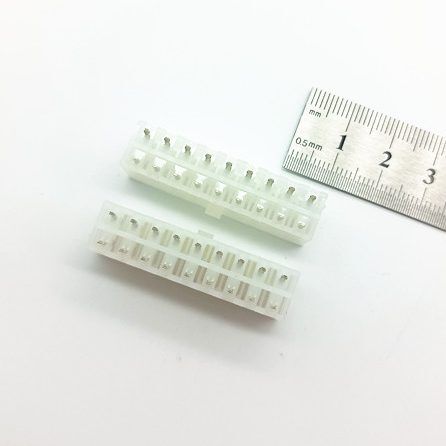

MX Mini-Fit Jr 5566 0039288180 4.2mm Wafer Straight Dip Type Without Peg Double Row pin connector VERT 18POS
- Part No : WF1DV42-18
-
Specifications
Current Rating: 9.0A AC/DC
Voltage Rating: 600V AC/DC
Contact Resistance: 10m ohm. Max
Insulation Resistance: 1000Mohm min
Withstanding Voltage: 1500V(r.m.s) For one Minute
Operating Temperature Range: -40°C ~ +105°C
Materials:
Insulator: High Temp. Plastic(Nylon 66 UL94V-2)
Color: White
Contact: Copper Alloy
Plated: Tin Plated - Inquiry now
- Products Drawing
Detailed description
0039288180 is a Mini-Fit Jr. connector ensuring dependable electrical connections in a compact design. Ideal for diverse applications, providing secure and efficient power distribution with this specific part.
Melissa Lee
Email:sales05@dghoyato.com
Skype:limiao425
Phone/Whatsapp:86-13337908889
MX Mini-Fit Jr 5566 0039288060 4.2mm Wafer Straight Dip Type Without Peg Double Row pin connector VERT 18POS
| Connector Type | Headers, Male Pins | |||
| Original P/N | MX Mini-Fit Jr 5566,0039288060 4.2mm,4.2mm Wafer Straight Dip Type,Wafer Straight Dip Type Without Peg | |||
| Pitch – Mating | 4.2mm | |||
| Number of Positions | 2-24 | |||
| Number of rows | 2 | |||
| Mounting Type | Straight | |||
| Contact Material | Brass | |||
| Plating | Tin Plated | |||
