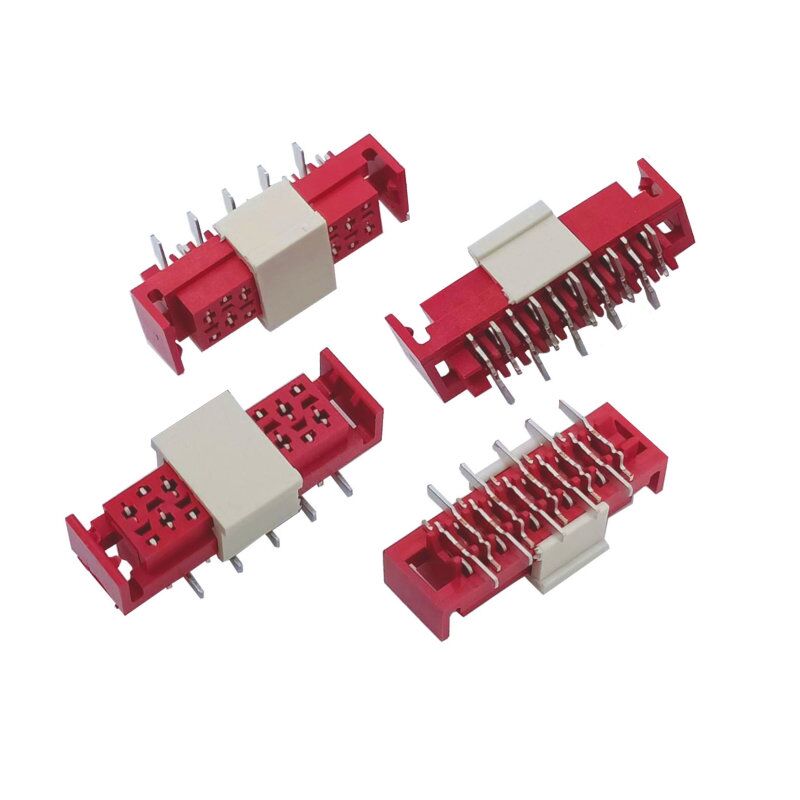

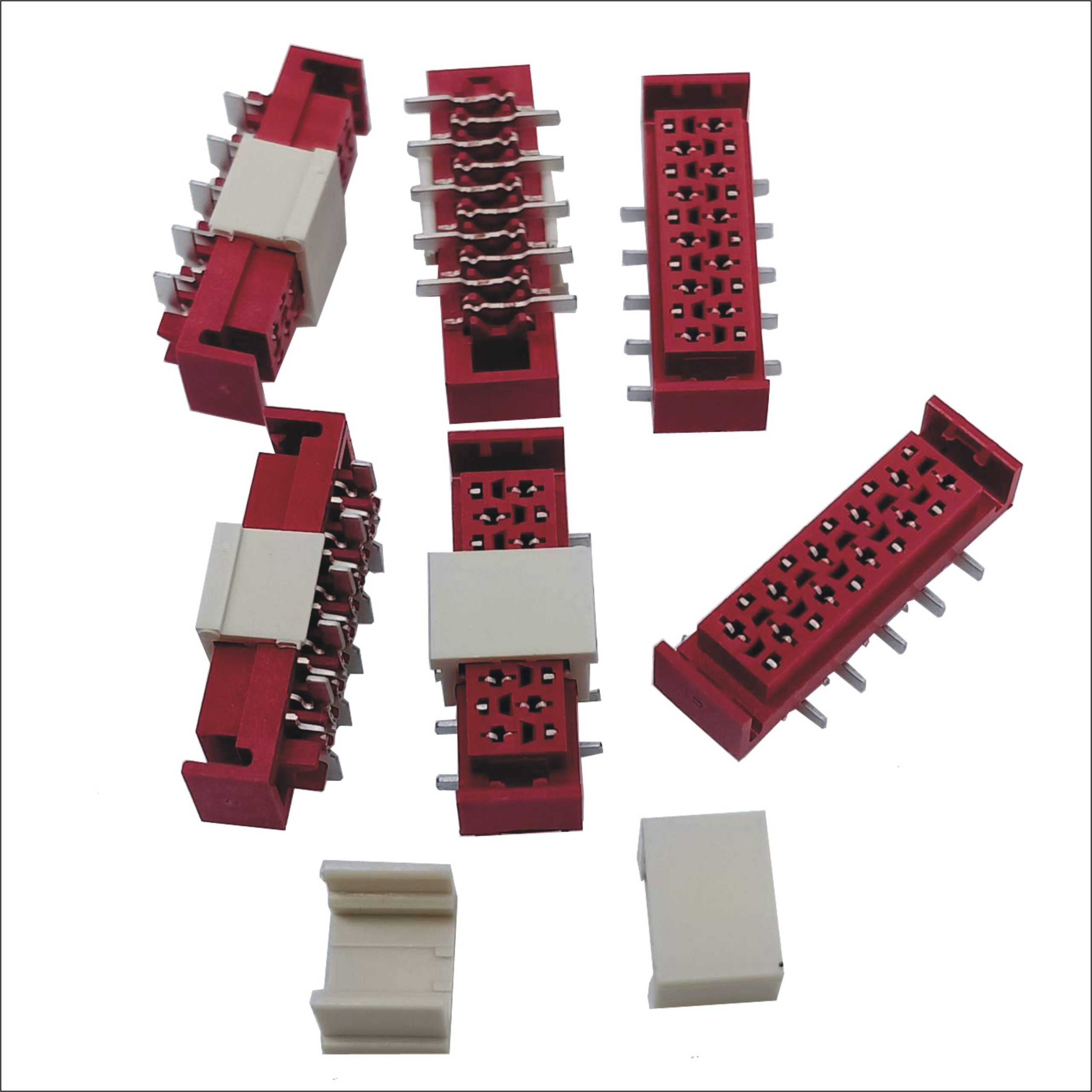

Micro-Match 8-188275-0 2.54mm pitch CONN RCPT 10POS 0.1 TIN SMD Micro Match Industrial 1-188275-0
- Part No : WFSM254-10-CR
-
Current Rating: 1.0A AC DC
Voltage Rating: 30V AC.DC
Contact Resistance: 20m ohm. Max
Insulation Resistance: 1000m ohm Min
Withstanding Voltage: 500V AC for one minute
Operating Temperature: -40°C~105°C
Insulator: High Temp.Plastic(Nylon46 UL94V-0)
Insulator Color: Red
- Inquiry now
- Products Drawing
Detailed description
Micro-Match 8-188275-0: Precision 2.54mm Pitch SMD Receptacle for Industrial Connectivity.
Key Features of Micro-Match 8-188275-0:
10-Position Layout: Experience enhanced connectivity with a 10-position receptacle, accommodating diverse electronic requirements in industrial settings.
SMD Design: Achieve seamless integration with surface mount technology, providing a space-saving and reliable solution for industrial applications.
Precision Performance: With a 2.54mm pitch, this receptacle ensures precise electronic connections, meeting the demands of industrial environments.
Melissa Lee
Email: sales05@dghoyato.com
Skype: limiao425
Phone/Whatsapp: 86-13337908889
| Connector Type | Header | |||
| Original P/N | TE Connectivity AMP Connectors Micro Match | |||
| Pitch – Mating | 0.100″ (2.54mm) | |||
| Number of Positions | 04-26 | |||
| Number of rows | 2 | |||
| Orientation | Surface Mount | |||
| Contact Material | Phosphor Bronze | |||
| Plating | Tin Plated | |||
