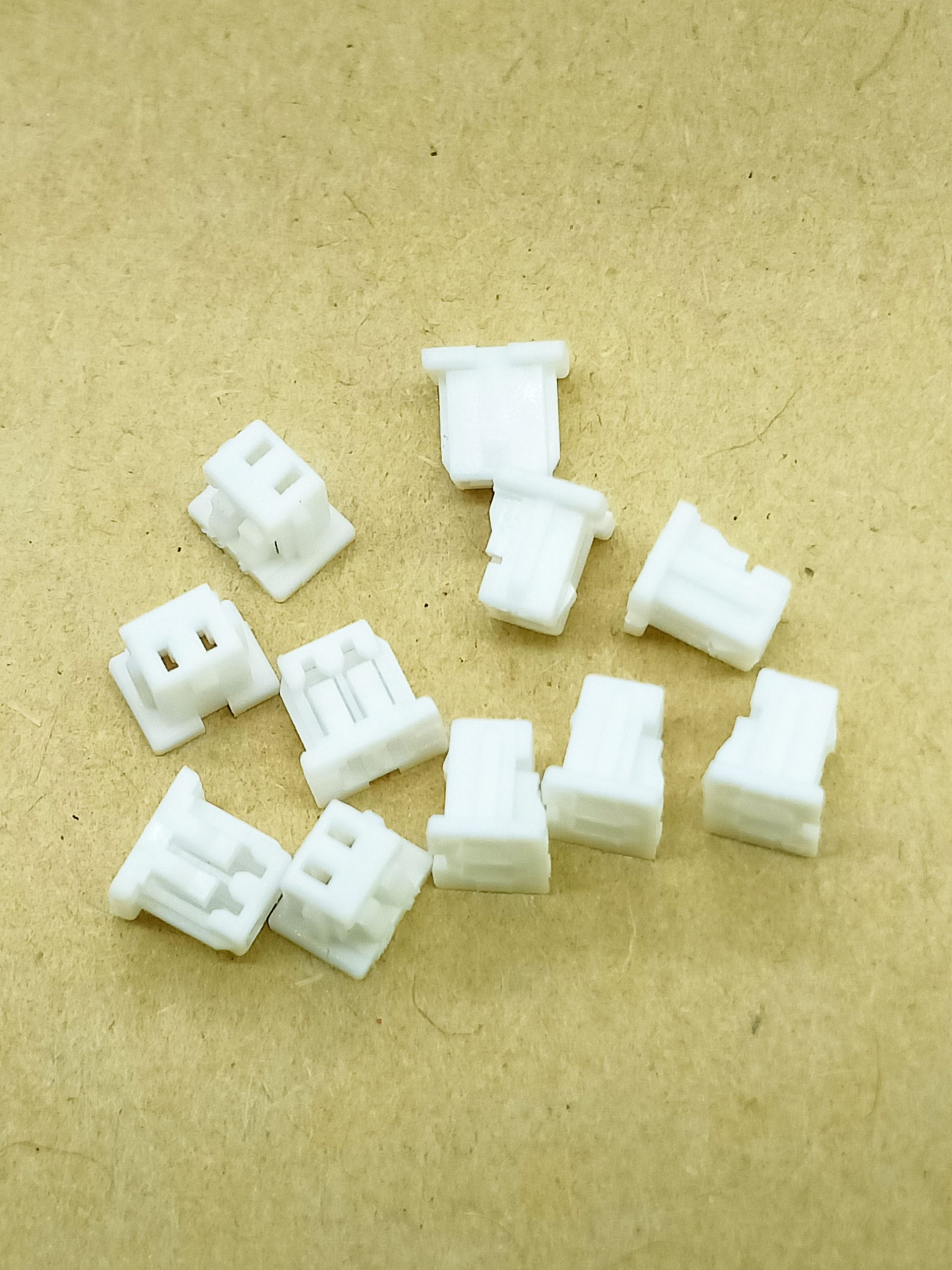

51021 1.25mm Pitch PicoBlade Receptacle Crimp Housing Single Row 2 Circuits 510210200
- Part No : HS125-02
-
-
Current Rating: 1.0A AC DC
-
Voltage Rating: 125V AC.DC
-
Contact resistance: 20m ohm. Max
-
INSULATION RESISTANCE: 100m ohm Min
-
Withstanding Volatge: 250V AC for one minute
-
Operating Temperature: -40°C-85°C
-
- Inquiry now
- Products Drawing
Detailed description
High-performance PicoBlade Wire-to-Board and Wire-to-Wire Connectors feature both Tin and Gold-plated versions for superior flexibility, reliability and durability across a wide variety of applications and industries.
Applications
Automotive: Body control modules, Combination switches, In-vehicle comfort and infotainment, Instrument panels, Shifters, Steering
Industrial Automation: Drones, Electric test equipment, Security systems, Smart meters
Networking: Servers
MedTech: Hearing aids, Monitors
Melissa Lee
Email:sales05@dghoyato.com
Skype:limiao425
Phone/Whatsapp:86-13337908889
Products Description
| Connector Type | Housing | |||
| Orginal P/N | Molex Picoblade 51021 | |||
| Pitch – Mating | 0.049″ (1.25mm) | |||
| Number of Positions | 02-15 | |||
| Number of rows | 1 | |||
| Mounting Type | Free Hanging (In-Line) | |||
| Contact Termination | Crimp | |||
| Color | White | |||
