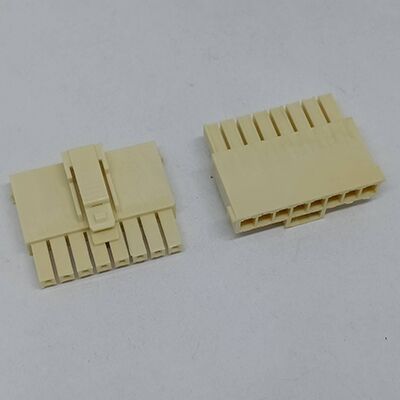

3.5MM Housing Connector Header 1722564108 Ultra-Fit 172256

3.5MM Housing Connector Header 1722564108 Ultra-Fit 172256
Part No : HSA35-08-B1
Specifications

Current Rating: 14.0A AC/DC

Voltage Rating: 400V AC/DC

Contact Resistance: 10m ohm. Max.

Insulation Resistance: 1000M ohm. Min.

Withstanding Voltage: 1500V AC/Minute

Operating Temperature Range: -40℃~+105℃

Material and Finish

Insulator: Nylon66 UL94V-0

Contact: Phosphor Bronze

Plating: Tin Plated

Reommended Insulator

16AWG Wire OD 2.0mm Max

18AWG Wire OD 1.7mm Max

20Awg Wire OD 1.5mm Max

22Awg Wire OD 1.2mm Max
Inquiry now
Products Drawing

Detailed description

Ultra-Fit 1722564108, an epitome of precision engineering, features a compact design for seamless electrical connections. Tailored for diverse applications, it ensures reliability and high performance in confined spaces.

Ultra-Fit Power Connectors deliver color-coding and keying options that eliminate same-circuit-size mis-mating, and offer the tangless feature that allows the terminal locking mechanism to be incorporated into the receptacle housing.

Applications by Industry

Home Appliances: Countertop, Dishwasher, Dryer, Microwave, Oven, Refrigerator, Washing machine

Automotive: Infotainment systems, Interior lighting, consoles, vanity mirrors

Industrial Automation: Assembly line equipment, Food and beverage

MedTech: Healthcare IT, Patient monitor

Telecommunications: Servers, Switches

Contact: Catherine Tang

Email: sales01@dghoyato.com

Mobile/WhatsApp: +18692238587

Skype: catherine.peng888

Product Name	HOUSING CONNECTOR
Pitch	3.5MM
Positions	8PIN
Plating	Gold Plated
Insulator	High Temp. Plastic (Nylon 6T UL94V-0)
Contact	Copper Alloy
Current Rating	3.0A AC/DC
Voltage Rating	250V AC/DC
Standard Color	Black
Contact resistance	20m Ohms Max
Insulation Resistance	1000M Ohm/Min
Operating Temperature	-25℃ to+105℃
Packaging	Bag packing,Tube packing,Tape&Reel packing,etc
OEM/ODM	Accept and made based on drawing or samples
Payment Terms	T/T,PayPal,Western Union,L/C
Company Advantage	1.Factory and trade integration,10+ years export experience; 2.One-stop shopping; 3.Competitive price; 4.Timely delivery; 5.Technical support; 6.Samples for free;

Send us your question about this product
