Molex Pico Clasp is a compact and reliable connector known for secure connections. It's widely used in diverse electronic applications, ensuring consistent performance and durability.

Molex Pico Clasp is a compact and reliable connector known for secure connections. It's widely used in diverse electronic applications, ensuring consistent performance and durability.

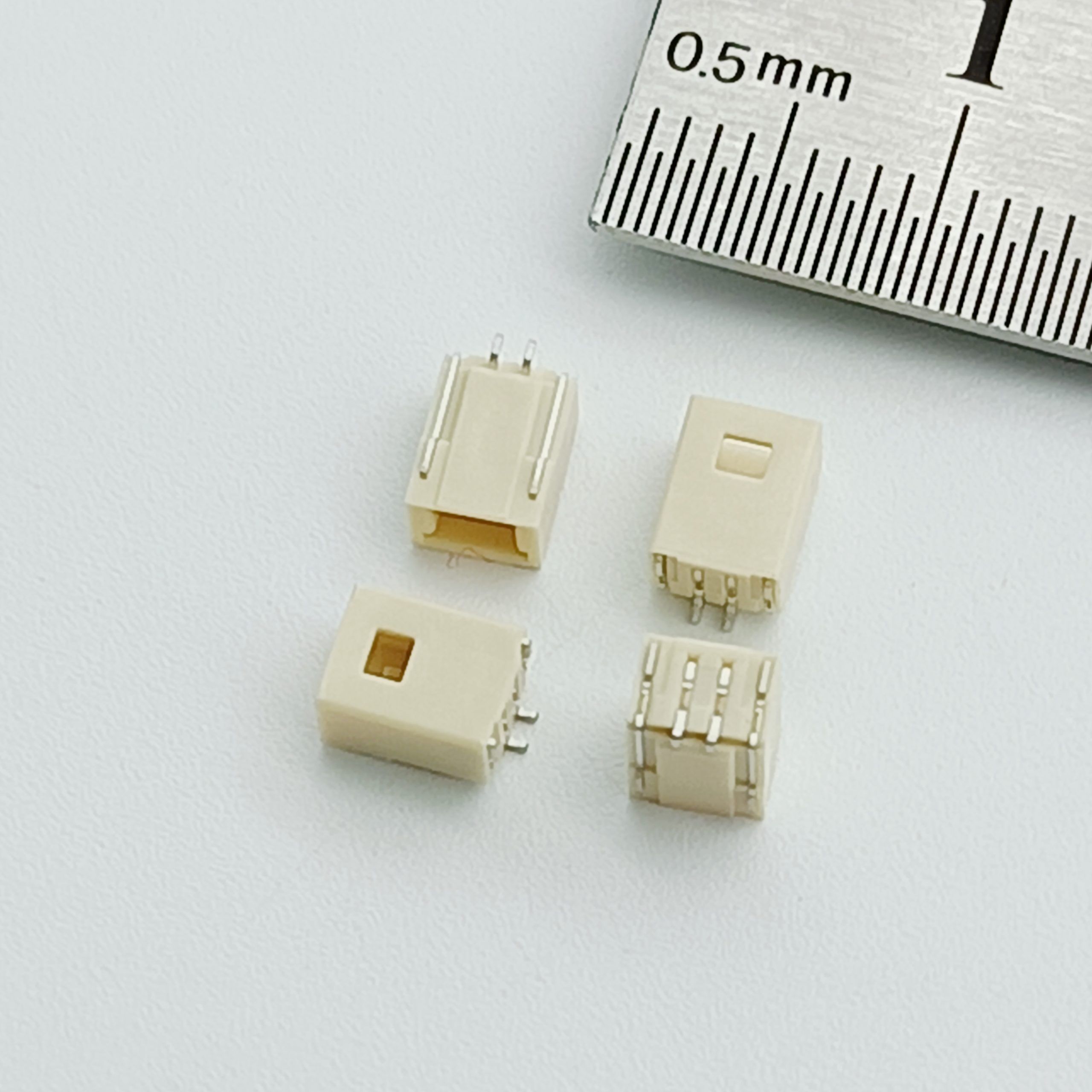

Pico-Clasp 501568-0207 Rectangular Connectors 0.039″ CONN RCPT HSG R/A 2POS 1.00MM
Part No : WFRASM10-02T-LK-MCR
Specifications:
Current Rating:1.0A AC,DC
Voltage Rating:500V AC,DC
Contact Resistance:20mohm Max

Insulation Resistance: 100Mohm Min.

Withstanding Voltage:500V AC/minute

Operating Temperature Range:-25℃~+105℃

Material And Finish:

lnsulotor:High Temp. Plostic(Nylon 9T UL94V一0)

Insulator Color:Natural(Beigi)

Contact:Copper Alloy

Plating:Tin Plated
Inquiry now
Products Drawing

Detailed description

Pico Clasp is a compact and reliable connector known for secure connections. It’s widely used in diverse electronic applications, ensuring consistent performance and durability.

Contact:Catherine Tang

Email:sales01@dghoyato.com

Mobile/WhatsApp:+18692238587

Description	Pico-Clasp 501568
Pitch	1.0MM
Positions	2-15PIN
Plating	Gold/TIN Plated
Insulator	High Temp. Plastic (Nylon 6T UL94V-0)
Contact	Copper Alloy
Current Rating	3.0A AC/DC
Voltage Rating	250V AC/DC
Standard Color	WHITE
Contact resistance	20m Ohms Max
Insulation Resistance	1000M Ohm/Min
Operating Temperature	-25℃ to+105℃
Packaging	Bag packing,Tube packing,Tape&Reel packing,etc
OEM/ODM	Accept and made based on drawing or samples
Payment Terms	T/T,PayPal,Western Union,L/C
Company Advantage	1.Factory and trade integration,10+ years export experience; 2.One-stop shopping; 3.Competitive price; 4.Timely delivery; 5.Technical support; 6.Samples for free;
