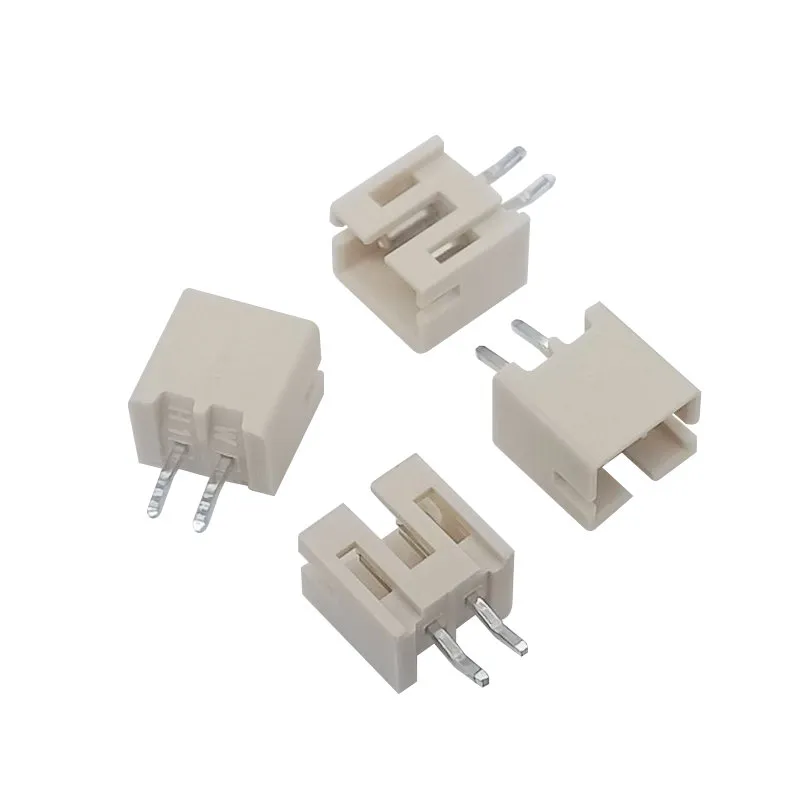

PH B2B-PH-K-S Connector Header Through Hole 2 position 0.079″ (2.00mm)

PH B2B-PH-K-S Connector Header Through Hole 2 position 0.079″ (2.00mm)

PH B2B-PH-K-S Connector Header Through Hole 2 position 0.079″ (2.00mm)
Part No : WFVJ20-02
- Current Rating:2.0A AC/DC
  Voltage Ratinge:125V AC/DC
  Contact Resistance:20m ohm. Max
  Insulation Resistance:1000Mohm min
  Withstanding Voltage:500V(r.m.s) For one Minute

  Operating Temperature Range:-40°C ~ +85°C

  Materials:

  Insulator:High Temp. Plastic(Nylon 66 UL94V-0)
  Color:White
  Conact :Brass

  Plated:Tin Plated
Inquiry now
Products Drawing

Detailed description

Melissa Lee

Email:sales05@dghoyato.com
Skype:limiao425
Phone/Whatsapp:86-13337908889

PH B2B-PH-K-S Connector Header Through Hole 2 position 0.079″ (2.00mm)

Connector Type	Headers, Male Pins
Orginal P/N	JST PH,JST B2B-PH-K-S,Through-Hole type shrouded header
Pitch – Mating	2.0mm
Number of Positions	2-15
Insulation Height	6.0mm
Mounting Type	Through Hole
Contact Material	Brass
Plasting	Tin Plated
