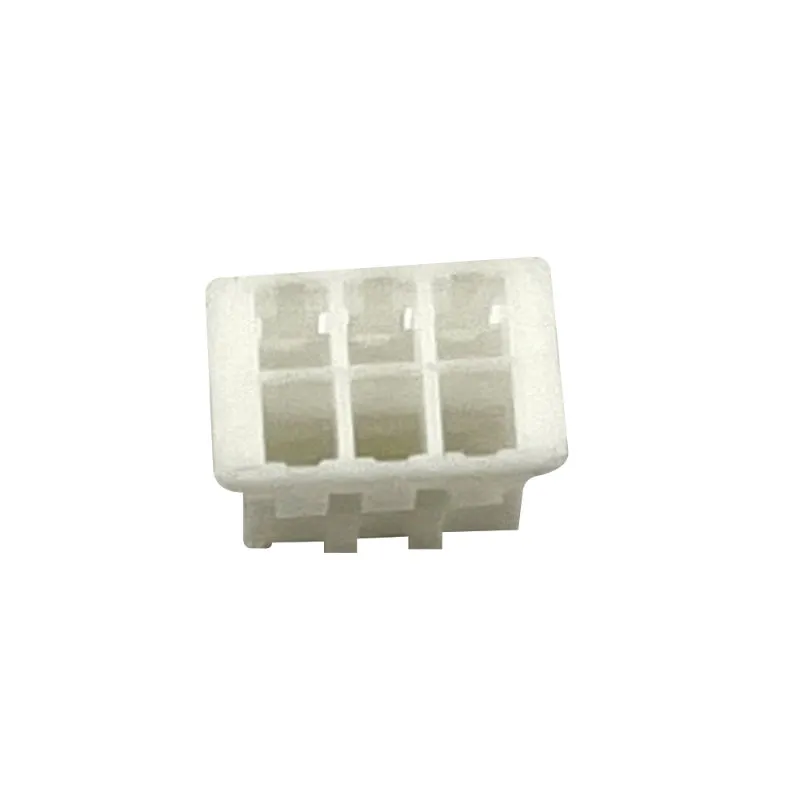

2.0MM pitch female housing double row 6P Crimp terminal plastic shell

2.0MM pitch female housing double row 6P Crimp terminal plastic shell

2.0MM pitch female housing double row 6P Crimp terminal plastic shell

2.0MM pitch female housing double row 6P Crimp terminal plastic shell
Part No : HB20-06
Specifications
Current Rating:2.0A AC/DC
Voltage Ratinge:125V AC/DC
Contact Resistance:20m ohm. Max
Insulation Resistance:1000Mohm min
Withstanding Voltage:500V(r.m.s) For one Minute

Operating Temperature Range:-40°C ~ +85°C

Applicable Wire:awg #24~#28

Materials:
Insulator:High Temp. Plastic(Nylon 66 UL94V-0)
Color:Black
Conact : Copper Alloy

Plated:Tin Plated
Inquiry now
Products Drawing

Detailed description

Melissa Lee

Email:sales05@dghoyato.com
Skype:limiao425
Phone/Wechat/Whatsapp:86-13337908889

2.0MM pitch female housing double row 6P Crimp terminal plastic shell

Connector Type	Crimp Housings
P/N	HB20-06
Pitch – Mating	2.0mm
Number of Positions	02-16
Number of rows	2
Flammability	94V-V2
Contact Termination	Crimp HBT20T
Packaging Type	Bag
