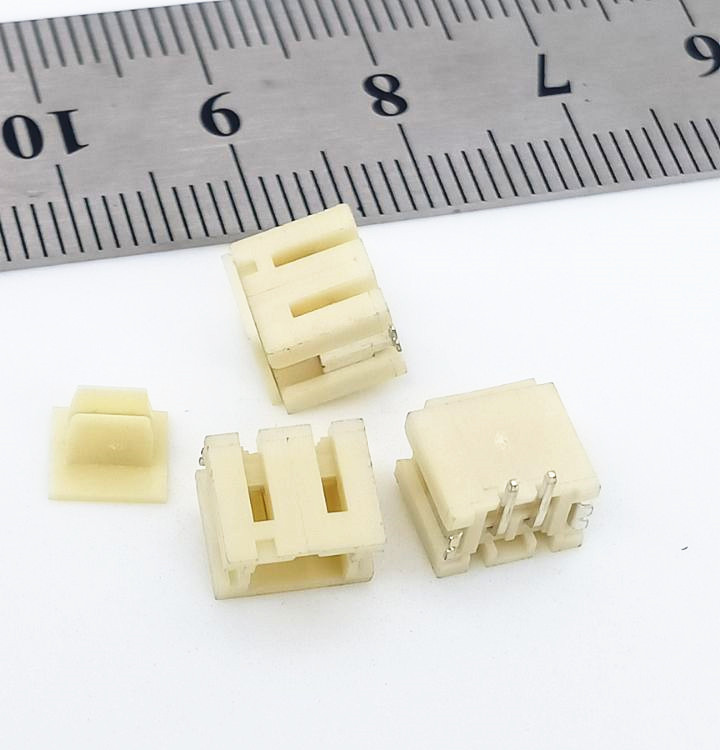

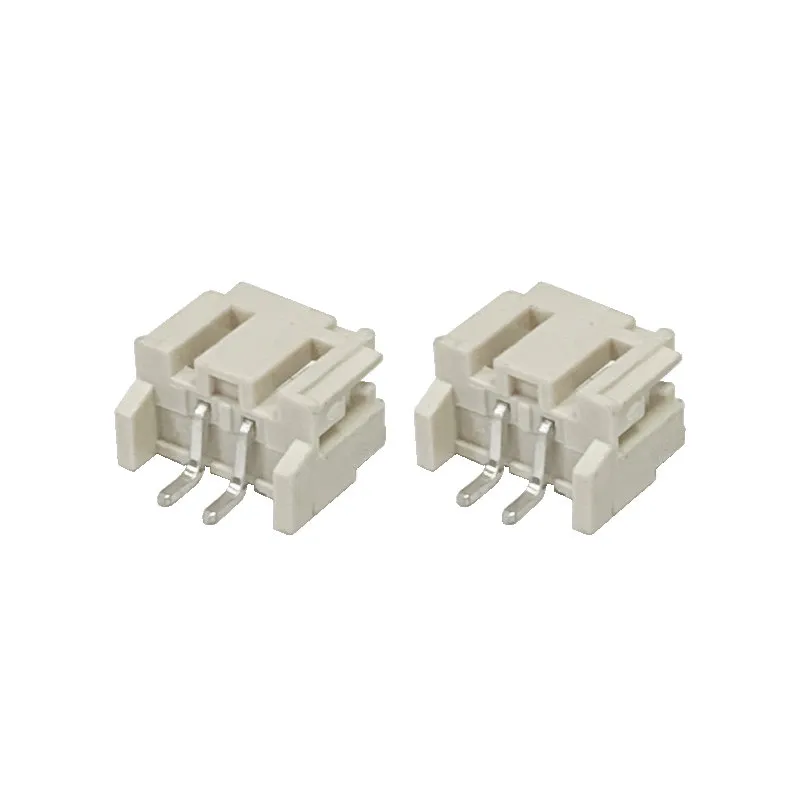

2.00mm Connector Header Surface Mount 2 position 0.079″ for JST PH B2B-PH-SM4-TB(LF)(SN)
2.00mm Connector Header Surface Mount 2 position 0.079″ for JST PH B2B-PH-SM4-TB(LF)(SN) 2.00mm Connector Header Surface Mount 2 position 0.079″ for JST PH B2B-PH-SM4-TB(LF)(SN)

  • 2.00mm Connector Header Surface Mount 2 position 0.079″ for JST PH B2B-PH-SM4-TB(LF)(SN)

  • Part No : WF2VSM20-02-CR

  • Specifications
    Current Rating:2.0A AC/DC
    Voltage Ratinge:125V AC/DC
    Contact Resistance:20m ohm. Max
    Insulation Resistance:1000Mohm min
    Withstanding Voltage:500V(r.m.s) For one Minute

    Operating Temperature Range:-40°C ~ +85°C

    Materials:

    Insulator:High Temp. Plastic(Nylon 9T UL94V-0)
     Color:White
    Conact :Copper Alloy

    Plated:Tin Plated


  • Inquiry now
  • Products Drawing

Detailed description


Melissa Lee

Email:sales05@dghoyato.com
Skype:limiao425
Phone/Wechat/Whatsapp:86-13337908889

2.00mm Connector Header Surface Mount 2 position 0.079″ for JST PH B2B-PH-SM4-TB(LF)(SN)

Connector Type
 Wire to board connector
Orginal P/N JST PH B2B-PH-SM4-TB(LF)(SN)
Pitch – Mating
2.0mm
Number of Positions
2-216
Number of rows
1
Mounting Type
Straight SMT
Contact Material
Brass
Plasting
Tin Plated
