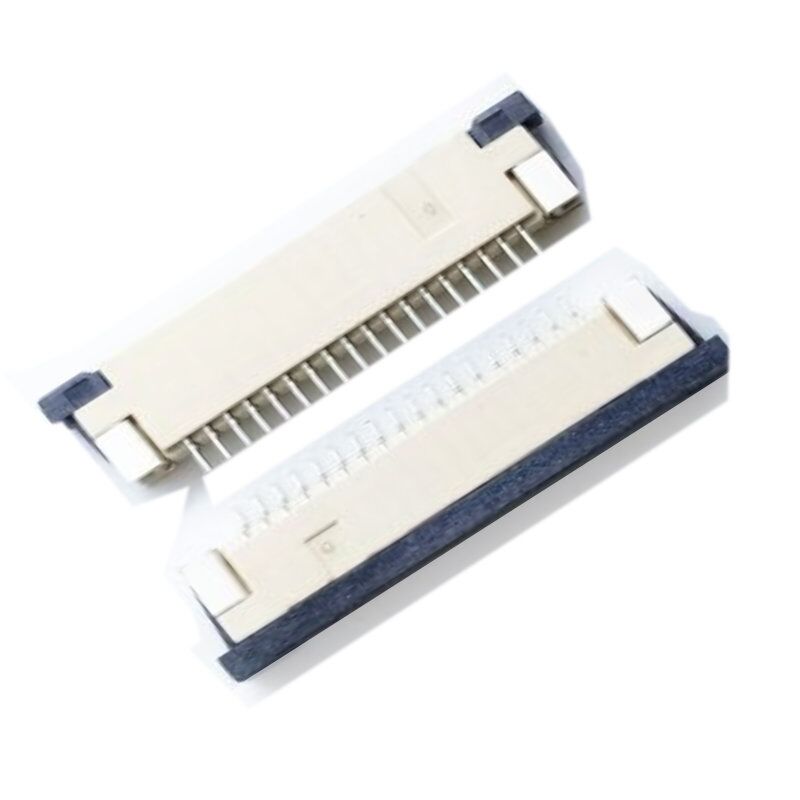

18P 1.0mm FPC connector R/A SMT Bottom Contact Type Total Height 2.5mm

18P 1.0mm FPC connector R/A SMT Bottom Contact Type Total Height 2.5mm

18P 1.0mm FPC connector R/A SMT Bottom Contact Type Total Height 2.5mm
Part No : FPCRSM10-18-BC-H25-TR
- Current Rating:1.0A AC/DC
  Voltage Ratinge:100V AC/DC
  Contact Resistance:30m ohm. Max
  Insulation Resistance:100Mohm min
  Withstanding Voltage:500V(r.m.s) For one Minute
  Operating Temperature Range:-25°C ~ +105°C
  Materials:
  Insulator:High Temp. Plastic(Nylon 6T UL94V-0)
  Color:White
  Conact :Phosphor Bronze

  Plated:Tin Plated
Inquiry now
Products Drawing

Detailed description

Melissa Lee

Email:sales05@dghoyato.com
Skype:limiao425
Phone/Whatsapp:86-13337908889

18P 1.0mm FPC connector R/A SMT Bottom Contact Type Total Height 2.5mm

Connector Type	FPC connector, FPC Bottom Contact Bottom Contact,height 2.5mm FPC connector
HOYATO P/N	FPCRSM10-18-BC-H25-TR
Pitch – Mating	1.0mm
Connector/Contact Type	Contacts, Bottom
Number of Positions	18
Mounting Type	Surface Mount, Right Angle
FFC, FCB Thickness	0.3mm
MPN	1500PCS/Reel
