Home >Applications

Medical

MEDICAL CONNECTOR

Medical

Medical Device, X-Rays, Patient Monitoring, Respirators, Blood Warming Pads, etc.

Related Products

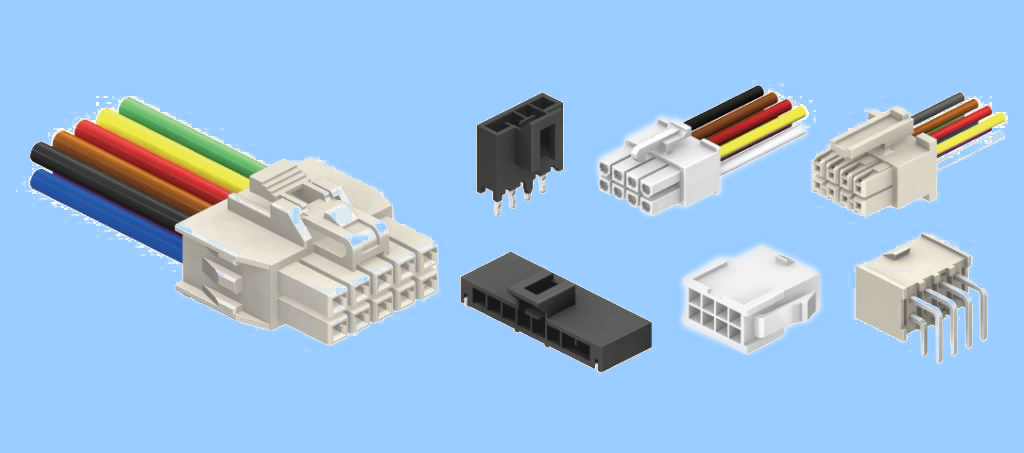

Wire To Board Series

0.80mm to 10.00mm pitch

Current rating from 1A to 48A

10 to 32 AWG Teflon® or PVC cable

Cable assembly as per customer specification

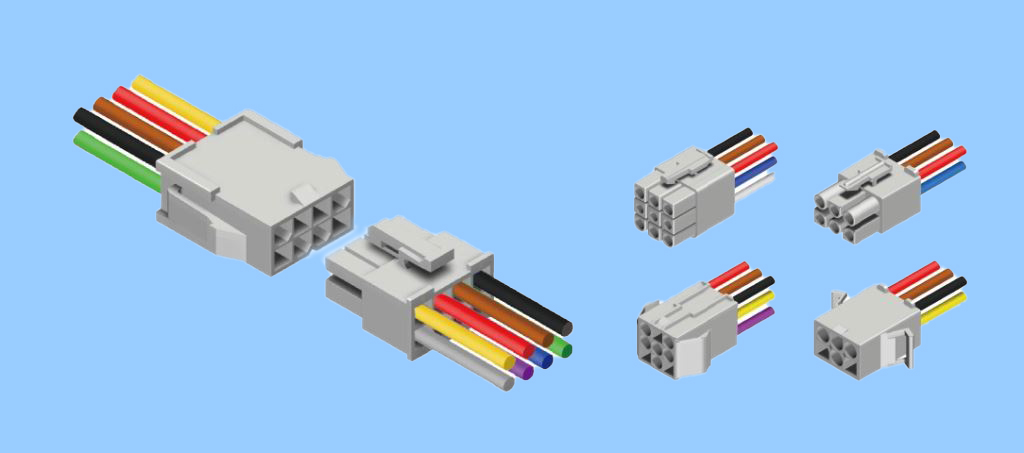

Wire To Wire Series

2.00mm to 10.00mm pitch

Current rating from 1A to 48A

10 to 32 AWG Teflon® or PVC cable

Cable assembly as per customer specification

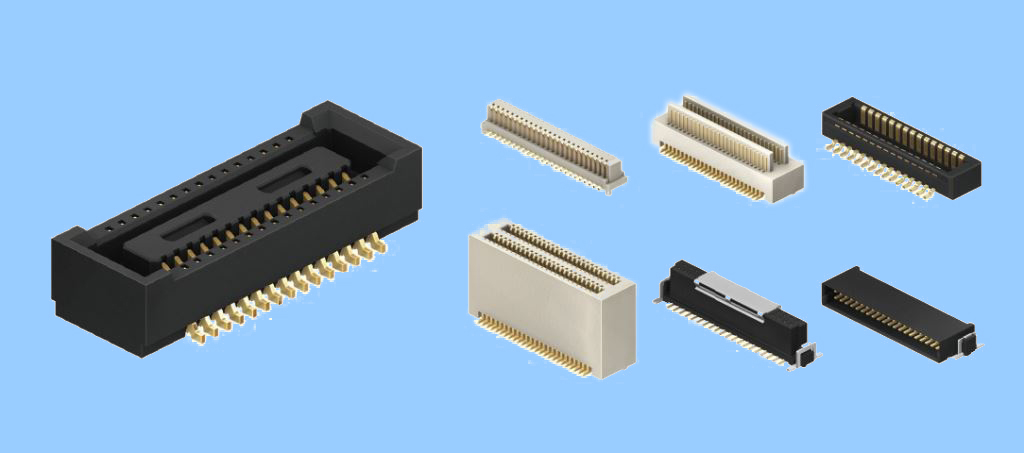

Fine Pitch Board To Board Series

0.40mm to 1.27mm pitch

Transmission up to 10 Gbps
Box and Shrouded Header Series

1.27mm, 2.00mm, 2.54mm pitch

All common pin counts available from 4 to 64

Polarization notch

Termination: Surface Mount, Through-hole
D-SUB Series

Standard, high-density and mixed-layout versions available

Extensive range of backshells and accessory options

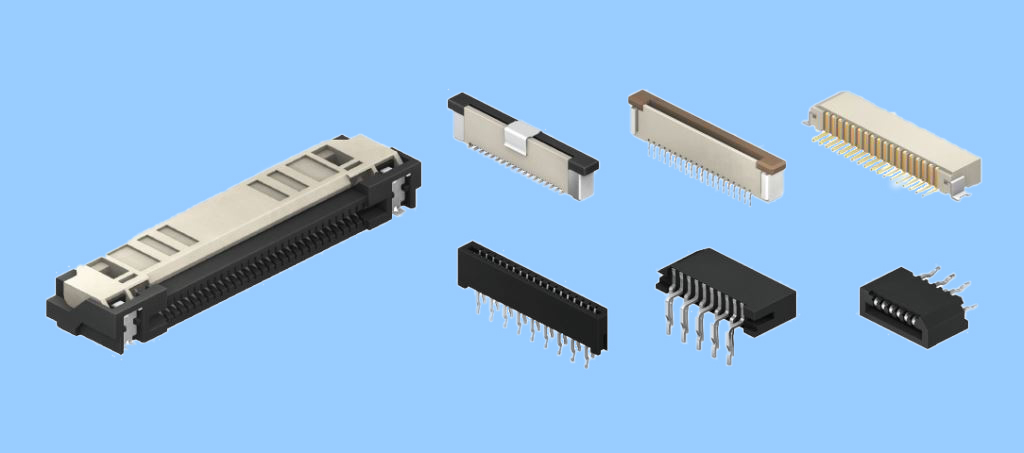

FPC Connectors

Socket form 0.30mm pitch, upper and lower contacts

ZIF, LIF or Auto-lock

Transmission up to 10 Gbps
Pin Header Series

1.00mm to 2.54mm pitch

Available in various post heights

Termination: Surface Mount, Through-hole, Pressfit

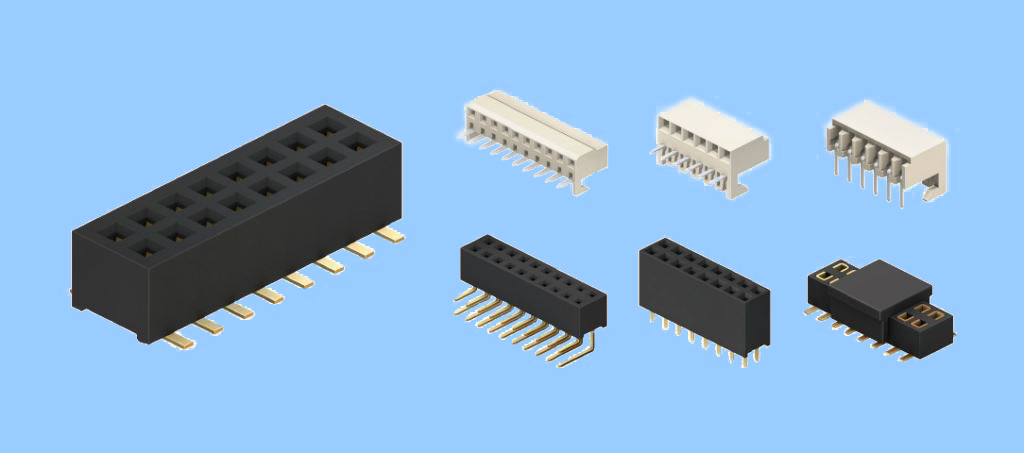

PCB Socket Series

1.00mm to 3.96mm pitch

Single, double and triple row up to 150 pins

Termination: Surface Mount, Through-hole
USB Type-C Series

Various soldering and mounting options available

Transmission up to 10 Gbps and power

transmission (USB PD) capability of 100w

High mating cycles of up to 10,000 cycles
USB Standard Series

USB and Mini USB

Various types, orientations, terminations 2.0 options available

High mating cycles of up to 10,000 cycles

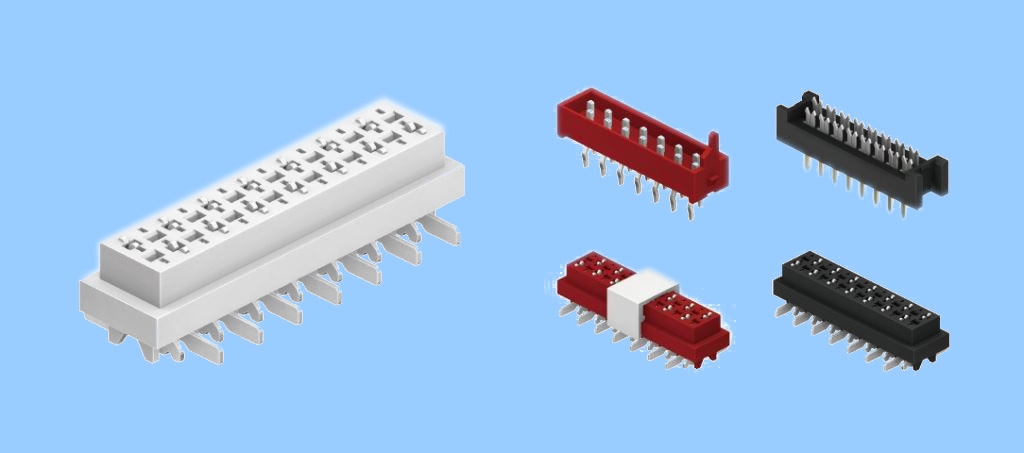

IDC Series

1.27mm, 2.00mm, 2.54mm pitch

All common pin counts available from 4 to 64

Termination: Surface Mount, Through-hole

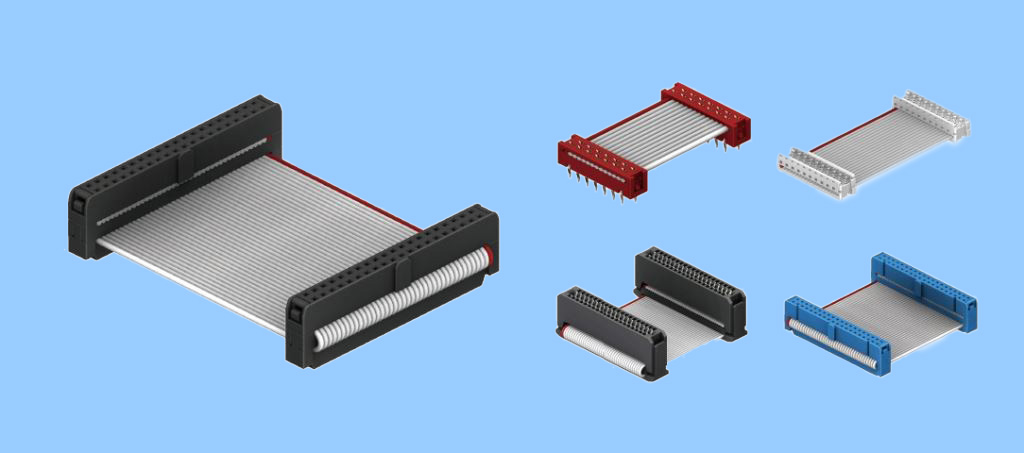

Flat Cable Assemblies

Mating shrouded terminal strips and ejector headers

Optional strain relief

Polarization key

Cable assembly as per customer specification
Machine Pin Series

1.00mm to 2.54mm pitch

Single/ Dual row design

Termination: Through-hole
Power Connectors

Current rating from 1A to 48A

High power contact design available

10 to 32 AWG Teflon® or PVC cable

Latch locking system

Polarized, single row double row design
Wire Harness & Molding Cable Assemblies

Highly customizable lengths and designs

Design engineering and simplification available

Power only and combination signal/power systems

Designed and tested for harsh environment
