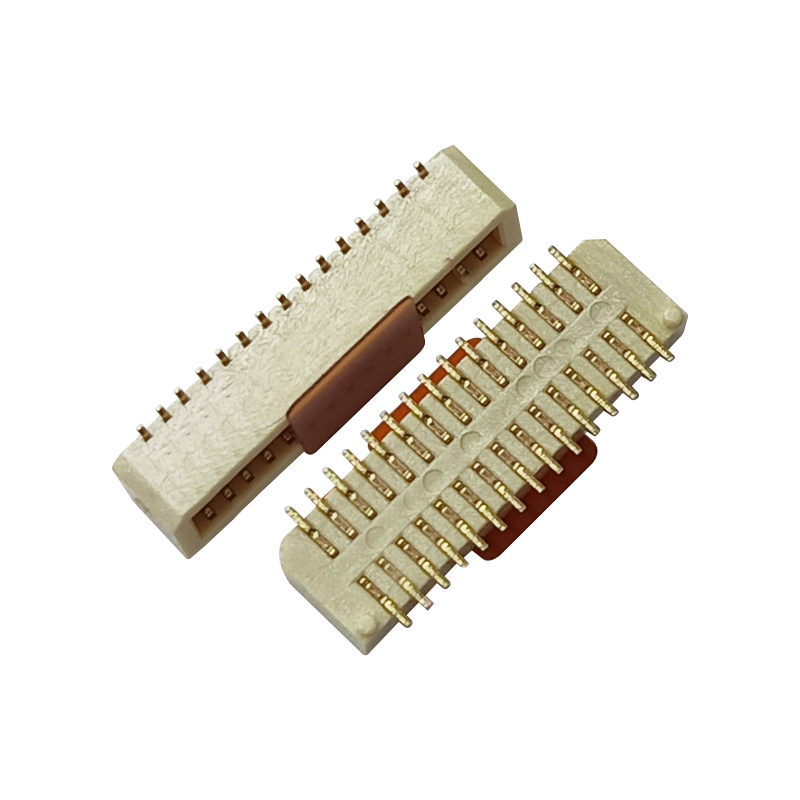

SlimStack 533093070 Board to Board Connector 53309 plug 30pin right-angle  allows one PCB to be mounted horizontally, while the other is oriented vertically, making it ideal for applications with limited space or where components need to be placed perpendicular to one another.

SlimStack 533093070 Board to Board Connector 53309 plug 30pin deliver fully protected header terminals, a small pitch size color-coding/keying options that ensure proper mating and terminal position assurance (TPA) to reduce terminal back-out.

SlimStack 533093070 Board to Board Connector 53309 plug 30pin is designed to withstand harsh environments, including high temperatures and humidity. They are durable, reliable, and suitable for various applications. How does SlimStack 533093070 Board to Board Connector 53309 plug 30pin  compare to other types of Board to Board Connector ? The SlimStack 533093070 Board to Board Connector 53309 plug 30pin offers a unique combination of small size, high density, and reliability, making it a popular choice for many designers and engineers. They are usually more suitable for applications where space is limited and secure connections are crucial.

SlimStack 533093070 Board to Board Connector 53309 plug 30pin is a versatile and reliable connector solution that is commonly used in a wide range of industries. From freezers to batteries, this extraction tool finds application in various products and systems. Let’s take a closer look at what features SlimStack 533093070 Board to Board Connector 53309 plug 30pin has and what kinds of  area is suitable using：

    1.Applicable features: SlimStack 533093070 Board to Board Connector 53309 plug 30pin has ultra-thin and narrow width. It is suitable for devices that require strict space.Conventional environmental electronic devices typically operate within a temperature range of -40 ℃ to+85 ℃ or higher that meet the usage needs of electronic devices in most conventional environments.

   2.Characteristics of iteself：

1）Size specifications: usually 0.80mm spacing, right angle design, surface mount type. It has specific mating heights and widths, such as 5.65mm and 6.65mm mating heights, 4.7mm and 7.2mm widths.

2）Electrical performance: The rated voltage is generally 50V, and the rated current varies depending on the specific pin function. Some pins can withstand larger currents, have lower contact resistance, meet general signal and power transmission requirements, and have good insulation performance.

3）Materials and processes: Made of high-temperature thermoplastic materials and copper alloys, the contact area may be gold-plated to improve corrosion resistance and insertion and removal life, suitable for automated assembly lines.

The characteristics of SlimStack 533093070 30pin board to board connector make it highly adaptable in specific fields and populations, as follows:

  1.In the field of consumer electronics：Portable devices such as smartphones, tablets, and smartwatches: rely on their miniaturization (0.8mm pitch, narrow width) and compact design to meet the high-density layout requirements inside the device.

  2.Digital cameras and portable camcorders: require stable signal transmission (low contact resistance, dual contact design) while adapting to slight vibrations during frequent device movement (good plug retention)

  3.Laptops, printers, smart home controllers: can work stably in regular environments (-40 ℃ to+85 ℃), balancing signal and low-power power transmission.

  4.Small sensors and portable detection instruments: have strict space requirements and do not need to deal with extreme environments. Their structural reliability (fully armored shell, anti solder intrusion design) can meet the assembly and usage needs of basic industrial scenarios.

  5.Small sensors and portable detection instruments: have strict space requirements and do not need to deal with extreme environments. Their structural reliability (fully armored shell, anti solder intrusion design) can meet the assembly and usage needs of basic industrial scenarios.

The following is about which groups are applicable：

  1.Consumer Electronics Design Engineer：High density connections need to be achieved in a limited space, with priority given to connectors that are compact and easy to automate assembly. The size specifications and process characteristics of this model (such as surface mount, suitable for assembly lines) can match its design requirements.

  2. Electronic device manufacturers (mass production enterprises)：Focusing on cost control and production efficiency, its compatibility with automated assembly lines can reduce labor costs, while material durability (high-temperature plastic, gold-plated contacts) can reduce product failure rates, making it suitable for mass production scenarios.

  3. Small equipment integrators：For portable and space limited devices such as handheld terminals and small medical equipment, it is necessary to balance connection reliability and volume. The compact design and basic environmental adaptability of this connector can meet its integration requirements.

  Board-to-Board Connectors for microminiature, high-speed, high-density, and high-power applications, such as stacking, mezzanine, coplanar, orthogonal and PCB connectors
