diagnostic cable obd connector cable for obdstar
diagnostic cable obd connector cable for obdstar

  • diagnostic cable obd connector cable for obdstar

  • Part No : CAB-OBD-JUMMPER-X300

  • what is diagnostic cable obd connector cable for obdstar？

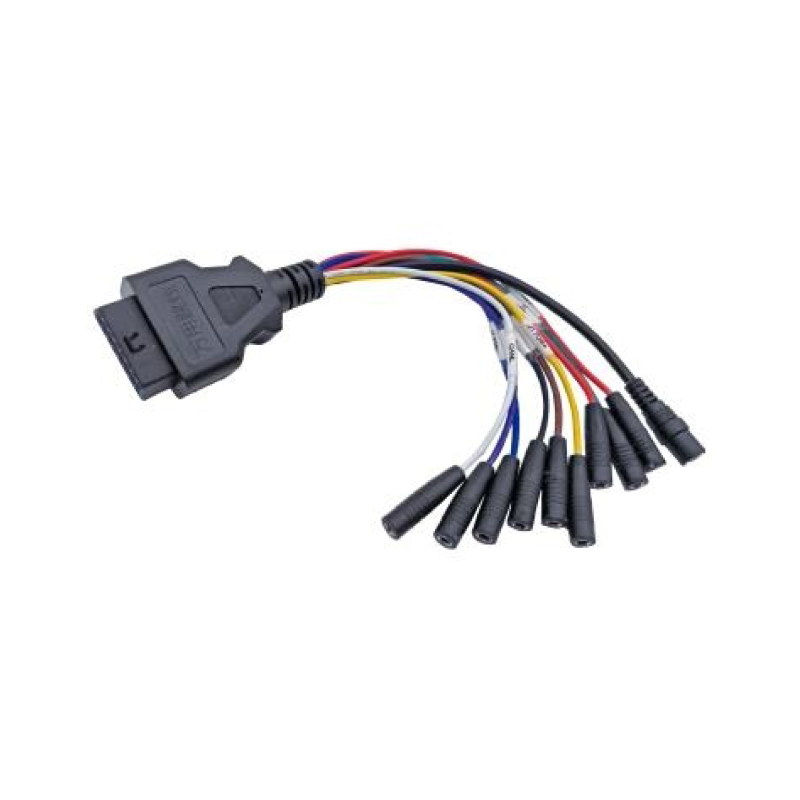

    diagnostic cable obd connector cable for obdstar is an OBD universal jumper wire, which is an accessory for automotive diagnostic equipment. One end of it is a 16-pin OBD2 standard connector, which can be connected to an automotive diagnostic instrument or related equipment; the other end is multiple jumper wires with test heads, which are used to flexibly connect different circuit nodes during the diagnosis and maintenance of automotive electronic systems.diagnostic cable obd connector cable for obdstar is suitable for fault detection and circuit debugging of various models such as gasoline vehicles, diesel vehicles, and motorcycles, and is commonly used in the fields of automotive maintenance and electronic diagnosis. Brands of automotive diagnostic instruments such as Fcar often use this type of jumper wire as a matching accessory.

    The function of diagnostic cable obd connector cable for obdstar

    I. Automotive Fault Diagnosis: In-depth Coverage of Multi-system Detection

    The 16-pin OBD2 standard connector can achieve seamless connection with mainstream automotive diagnostic instruments (such as equipment of brands like Fcar and Launch). The multiple jumper wires at the other end can be accurately connected to various circuit nodes of the automotive electronic system, thereby:

    •For the engine system,diagnostic cable obd connector cable for obdstar can detect the working status of modules such as fuel injection, ignition control, and idle speed adjustment, read fault codes like excessive/lean mixture and abnormal ignition timing, and simultaneously monitor real-time data streams such as engine speed, intake pressure, and oxygen sensor voltage.

    •For the transmission system,diagnostic cable obd connector cable for obdstar can diagnose issues such as abnormal shifting logic, insufficient oil pressure, and solenoid valve faults, and analyze key information like transmission oil temperature, gear status, and torque output through data streams.

    •In the body electronic system, diagnostic cable obd connector cable for obdstar can troubleshoot faults such as malfunctioning central locking, faulty power windows, and abnormal lighting control systems, helping maintenance personnel quickly locate fault points in the Body Control Module (BCM) or related sensors and actuators.

    II. Circuit Debugging and Maintenance: Accurate Localization of Electronic Faults

    When abnormalities such as short circuits, open circuits, or voltage anomalies occur in automotive electronic circuits, these jumper wires can serve as “detection probes”:

    •Sensor detection: For example, for the crankshaft position sensor, the jumper wires can be used to test the waveform and voltage amplitude of its signal output, determining whether the engine fails to start due to sensor damage or poor line contact; for the oxygen sensor, they can detect voltage changes under different working conditions to confirm if it is faulty.

    •Actuator detection: For components like fuel injectors, the jumper wires can measure the on-off status and voltage of their drive lines, judging whether abnormal fuel injection is caused by injector blockage or line faults; for throttle actuators, they can test the power supply and signal feedback lines of the motor to troubleshoot issues with abnormal throttle opening.

    •Multi-vehicle adaptation: diagnostic cable obd connector cable for obdstar can be used for circuit-level detection and maintenance of the electronic control systems (such as electronic fuel injection systems) of household gasoline cars, heavy-duty diesel trucks, and motorcycles, greatly enhancing the versatility of cross-vehicle maintenance.

    III. Equipment Adaptation and Expansion: Strengthening the Functional Boundaries of Diagnostic Instruments

    diagnostic cable obd connector cable for obdstar can form “functional complementarity” with diagnostic instruments of brands like Fcar:

    •Expanding testing scenarios: The original test wires equipped with some diagnostic instruments may not cover niche circuit interfaces of special models or old vehicles. However, the OBD universal jumper wires can achieve adaptation to these special interfaces through flexible wiring, enabling the diagnostic instruments to test more uncommon vehicle models.

    •Improving maintenance efficiency: Maintenance personnel do not need to frequently replace dedicated test wires due to differences in vehicle models or circuit layouts. They can quickly connect to the target circuit only through the combined wiring of this jumper wire, reducing the time cost of fault diagnosis. At the same time, it improves the accuracy of diagnostic results and reduces misjudgments caused by improper line connections.

    The application of diagnostic cable obd connector cable for obdstar core application fields are concentrated in automotive-related scenarios, which can be specifically divided into the following categories:

    1.Automotive repair shops: diagnostic cable obd connector cable for obdstar is a core tool for maintenance personnel to troubleshoot vehicle faults. diagnostic cable obd connector cable for obdstar is used to detect fault codes and data streams of systems such as engines, transmissions, and body electronics, and locate problems like circuit short circuits and sensor failures.

    2.Automotive 4S shops: During vehicle maintenance and after-sales repair, diagnostic cable obd connector cable for obdstar is suitable for the electronic system detection of different brands and models (such as gasoline vehicles and diesel vehicles) to ensure repair accuracy.

    3.Matching of automotive diagnostic equipment: As an auxiliary accessory for automotive diagnostic instruments of brands such as Fcar and Launch, diagnostic cable obd connector cable for obdstar expands the testing range of diagnostic instruments and enables the equipment to adapt to more niche circuit interfaces of special models or old vehicles.

    4.Automotive-related training institutions:diagnostic cable obd connector cable for obdstar is used for teaching demonstrations to help students understand the structure of automotive electronic circuits and the principle of fault detection, and improve their practical operation capabilities.
