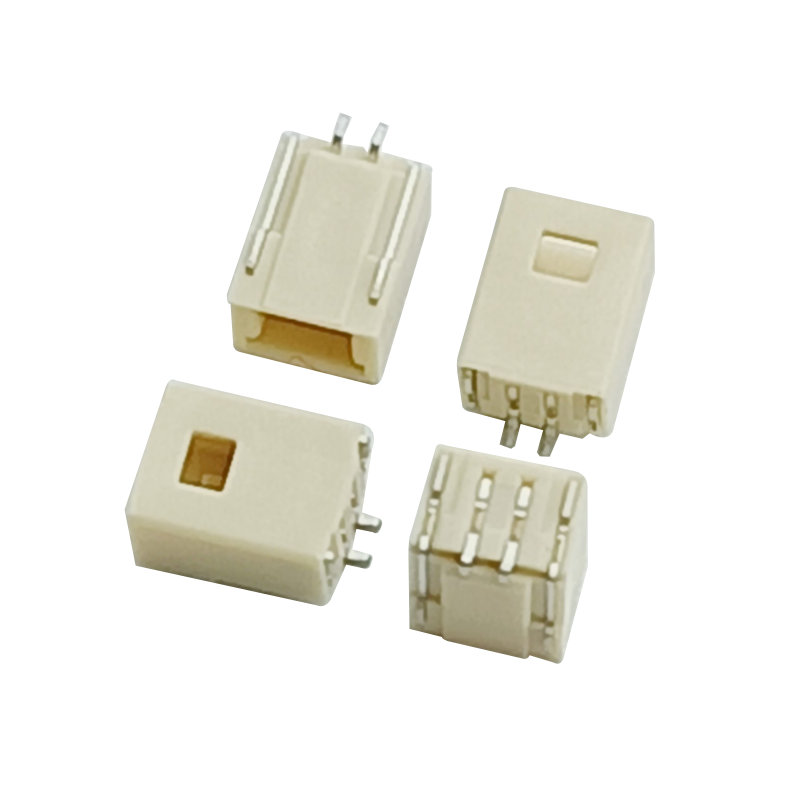

Pico Clasp 5015680207 PCB Header Connector 2P 202396
- Part No : WFRASM10-02T-LK-MCR
-
Specifications:
Current Rating:1.0A AC,DC
Voltage Rating:500V AC,DC
Contact Resistance:20mohm MaxInsulation Resistance: 100Mohm Min.
Withstanding Voltage:500V AC/minute
Operating Temperature Range:-25℃~+105℃
Material And Finish:
lnsulotor:High Temp. Plostic(Nylon 9T UL94V一0)
Insulator Color:Natural(Beigi)
Contact:Copper Alloy
Plating:Tin Plated
- Inquiry now
- Products Drawing
Detailed description
Pico Clasp 5015680207 PCB Header Connector 2P 202396
1.What is Pico Clasp 5015680207 PCB Header Connector 2P 202396？
Pico Clasp 5015680207 PCB Header Connector 2P 202396 is an ultra small (1.00mm pitch) wire to board connector. With its space saving internal friction locking design and excellent seismic durability, it is mainly used for high-density, space limited, and stable connected electronic devices. Its core purpose is to achieve stable transmission of power and signals in enclosed spaces by connecting wiring harnesses to printed circuit boards (PCBs).
2.Which industries apply Pico Clasp 5015680207 PCB Header Connector 2P 202396？
a.Pico Clasp 5015680207 PCB Header Connector 2P 202396 Consumer electronics: Drones, televisions, air conditioning, smart meters, and mobile POS terminals
b. Pico Clasp 5015680207 PCB Header Connector 2P 202396 Medical Equipment: Small portable medical instruments such as patient monitors
c.Pico Clasp 5015680207 PCB Header Connector 2P 202396 Industrial control and automotive: Smart dashboards and other compact innovative electronic devices, internal small modules of automotive electronics, Internet of Things (IoT) devices, and， security monitoring, etc
3.Hoyato Pico Clasp 5015680207 PCB Header Connector 2P 202396 can povide a pefect ompatibility solution and compare it with Pico Clasp 5015680207 PCB Header Connector 2P 202396 Pin to Pin part numbers in the table
| Product Description | Molex part.no | Hoyato part No. |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 2Pin | 501568-0207/202396-0207/203558-0207/203559-0207 | WFRASM10-02T-LK-MCR/WFRASM10-02SG-LK-MCR/WFRASM10-02SG15-LK-MCR/WFRASM10-02SG30-LK-MCR |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 3Pin | 501568-0307/202396-0307/203558-0407/203559-0307 | WFRASM10-03T-LK-MCR/WFRASM10-03SG-LK-MCR/WFRASM10-03SG15-LK-MCR/WFRASM10-03SG30-LK-MCR |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 4Pin | 501568-0407/202396-0407/203558-0407/203559-0407 | WFRASM10-04T-LK-MCR/WFRASM10-04SG-LK-MCR/WFRASM10-04SG15-LK-MCR/WFRASM10-04SG30-LK-MCR |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 5Pin | 501568-0507/202396-0507/203558-0507/203559-0507 | WFRASM10-05T-LK-MCR/WFRASM10-05SG-LK-MCR/WFRASM10-05SG15-LK-MCR/WFRASM10-05SG30-LK-MCR |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 6Pin | 501568-0607/202396-0607/203558-0607/203559-0607 | WFRASM10-06T-LK-MCR/WFRASM10-06SG-LK-MCR/WFRASM10-06SG15-LK-MCR/WFRASM10-06SG30-LK-MCR |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 7Pin | 501568-0707/202396-0707/203558-0707/203559-0707 | WFRASM10-07T-LK-MCR/WFRASM10-07SG-LK-MCR/WFRASM10-07SG15-LK-MCR/WFRASM10-07SG30-LK-MCR |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 8Pin | 501568-0807/202396-0807/203558-0807/203559-0807 | WFRASM10-08T-LK-MCR/WFRASM10-08SG-LK-MCR/WFRASM10-08SG15-LK-MCR/WFRASM10-08SG30-LK-MCR |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 9Pin | 501568-0907/202396-0907/203558-0907/203559-0907 | WFRASM10-09T-LK-MCR/WFRASM10-09SG-LK-MCR/WFRASM10-09SG15-LK-MCR/WFRASM10-09SG30-LK-MCR |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 10Pin | 501568-1007/202396-1007/203558-1007/203559-1007 | WFRASM10-10T-LK-MCR/WFRASM10-10SG-LK-MCR/WFRASM10-10SG15-LK-MCR/WFRASM10-10SG30-LK-MCR |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 11Pin | 501568-1107/202396-1107/203558-1107/203559-1107 | WFRASM10-11T-LK-MCR/WFRASM10-11SG-LK-MCR/WFRASM10-11SG15-LK-MCR/WFRASM10-11SG30-LK-MCR |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 12Pin | 501568-1207/202396-1207/203558-1207/203559-1207 | WFRASM10-12T-LK-MCR/WFRASM10-12SG-LK-MCR/WFRASM10-12SG15-LK-MCR/WFRASM10-12SG30-LK-MCR |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 13Pin | 501568-1307/202396-1307/203558-1307/203559-1307 | WFRASM10-13T-LK-MCR/WFRASM10-13SG-LK-MCR/WFRASM10-13SG15-LK-MCR/WFRASM10-13SG30-LK-MCR |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 14Pin | 501568-1407/202396-1407/203558-1407/203559-1407 | WFRASM10-14T-LK-MCR/WFRASM10-14SG-LK-MCR/WFRASM10-14SG15-LK-MCR/WFRASM10-14SG30-LK-MCR |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 15Pin | 501568-1507/202396-1507/203558-1507/203559-1507 | WFRASM10-15T-LK-MCR/WFRASM10-15SG-LK-MCR/WFRASM10-15SG15-LK-MCR/WFRASM10-15SG30-LK-MCR |
Wire to Board Mates part:
| Product Description | Molex part.no | Hoyato part No. |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 Receptacle Crimp Housing 2P | 501330-0200/501330-0231 | HMX10-02/HMX10-03-BK |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 Receptacle Crimp Housing 3P | 501330-0300/501330-0331 | HMX10-03/HMX10-03-BK |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 Receptacle Crimp Housing 4P | 501330-0400/501330-0431 | HMX10-04/HMX10-04-BK |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 Receptacle Crimp Housing 5P | 501330-0500/501330-0531 | HMX10-05/HMX10-05-BK |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 Receptacle Crimp Housing 6P | 501330-0600/501330-0631 | HSA10-03-LK/HSA10-03-LK-BK |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 Receptacle Crimp Housing 7P | 501330-0700/501330-0731 | HSA10-07-LK/HSA10-07-LK-BK |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 Receptacle Crimp Housing 8P | 501330-0800/501330-0831 | HSA10-08-LK/HSA10-08-LK-BK |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 Receptacle Crimp Housing 9P | 501330-0900/501330-0931 | HSA10-09-LK/HSA10-09-LK-BK |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 Receptacle Crimp Housing 10P | 501330-1000/501330-1031 | HSA10-10-LK/HSA10-10-LK-BK |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 Receptacle Crimp Housing 11P | 501330-1100/501330-1131 | HSA10-11-LK/HSA10-11-LK-BK |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 Receptacle Crimp Housing 12P | 501330-1200/501330-1231 | HSA10-12-LK/HSA10-12-LK-BK |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 Receptacle Crimp Housing 13P | 501330-1300/501330-1331 | HSA10-13-LK/HSA10-13-LK-BK |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 Receptacle Crimp Housing 14P | 501330-1400/501330-1431 | HSA10-14-LK/HSA10-14-LK-BK |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 Receptacle Crimp Housing 15P | 501330-1500/501330-1531 | HSA10-15-LK/HSA10-15-LK-BK |
| Pico Clasp 5015680207 PCB Header Connector 2P 202396 Receptacle Crimp Terminal | 501334 0000/501193 7000 | HST10T/HST10G |
Contact:Catherine Tang
Mobile/WhatsApp:+18692238587
|
Description
|
Pico Clasp 5015680207 PCB Header Connector 2P 202396
|
|
Pitch
|
1.0MM
|
|
Positions
|
2-15PIN
|
|
Plating
|
Gold/TIN Plated
|
|
Insulator
|
High Temp. Plastic (Nylon 6T UL94V-0)
|
|
Contact
|
Copper Alloy
|
|
Current Rating
|
3.0A AC/DC
|
|
Voltage Rating
|
250V AC/DC
|
|
Standard Color
|
WHITE
|
|
Contact resistance
|
20m Ohms Max
|
|
Insulation Resistance
|
1000M Ohm/Min
|
|
Operating Temperature
|
-25℃ to+105℃
|
|
Packaging
|
Bag packing,Tube packing,Tape&Reel packing,etc
|
|
OEM/ODM
|
Accept and made based on drawing or samples
|
|
