Below is a detailed introduction about it：

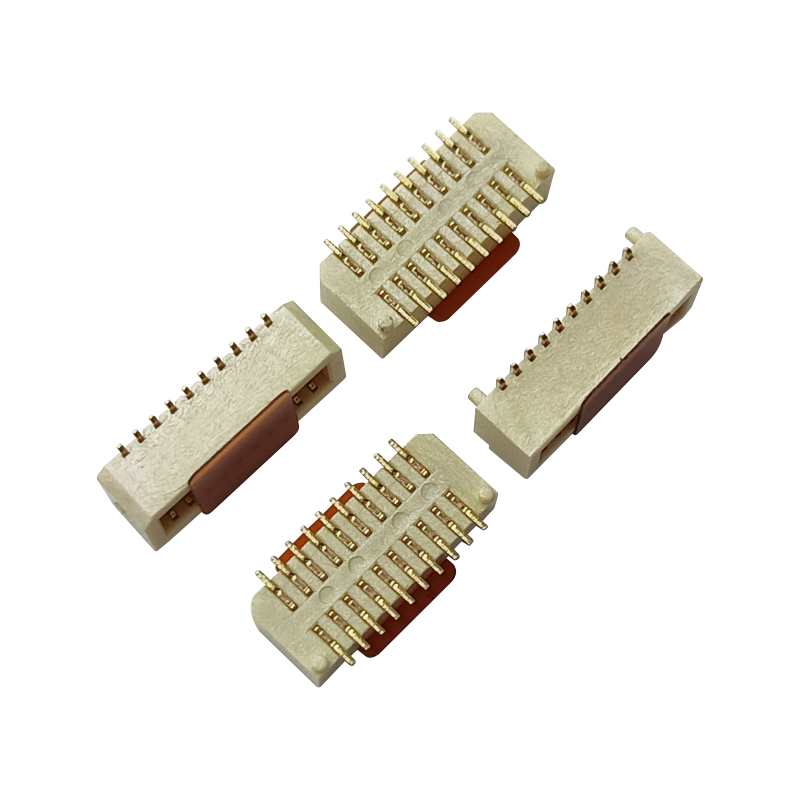

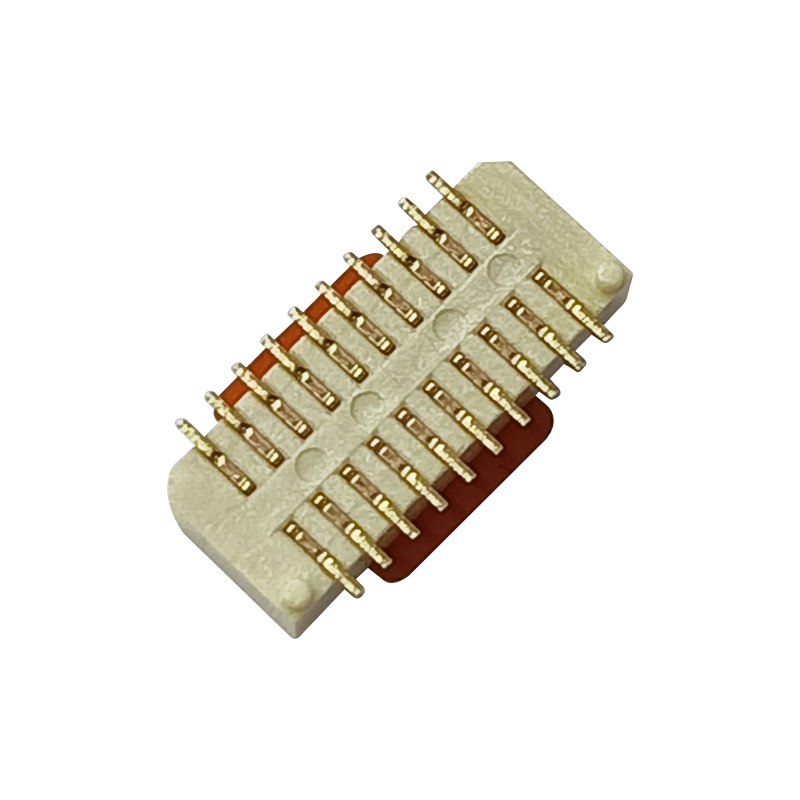

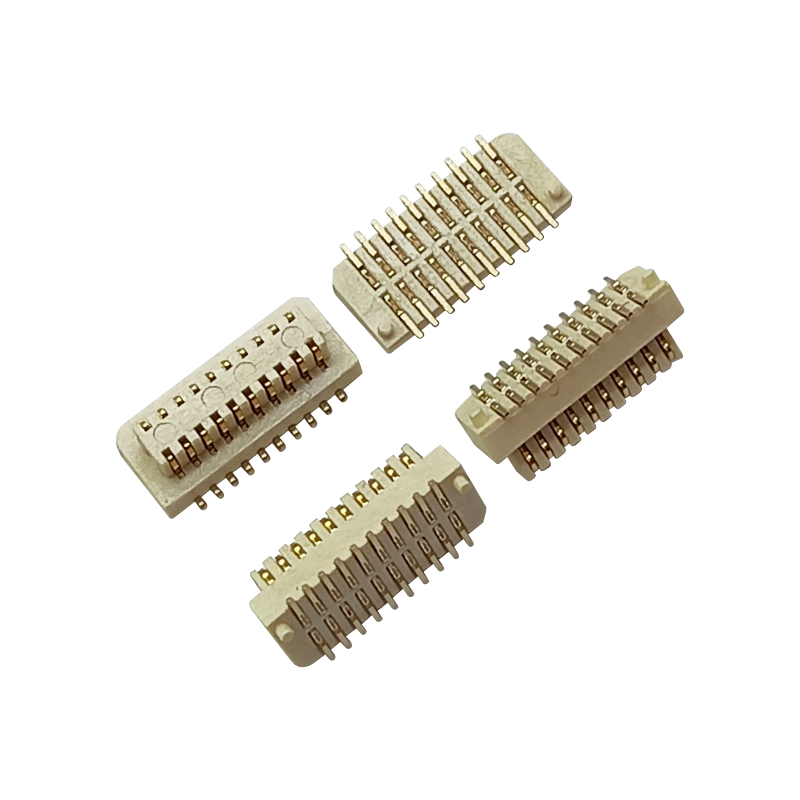

Board to board Female pcb connector 524652062 belongs to the small spacing connector, with a spacing of only 1.00mm and a row spacing of 1.45mm, saving space and suitable for high-density assembly of electronic devices.Board to board Female pcb connector 524652062 adopts surface mount installation method and the end connection method is welding. It can be quickly and efficiently installed through automated welding equipment, improving production efficiency and ensuring the stability and reliability of the connection. It has the characteristic of fixed welding tail, which can enhance the firmness of welding, reduce the problem of loose connection caused by vibration or other external factors, and ensure long-term stable electrical connection. Its insulation height is 4.00mm, and the material flammability level reaches UL94 V-0.Board to board Female pcb connector 524652062 has good insulation performance and can effectively prevent short circuits and leakage problems, ensuring the safe operation of the equipment. The working temperature range is -40 ° C to 105 ° C, and it can work normally under various harsh environmental conditions; The rated voltage is 50V and the rated current is 0.5A, which can meet the electrical connection requirements of general low-power electronic devices

Key Features:

      1.Ultra-Slim Profile:                                                                                                                                                                                    Our 0.8mm board-to-board socket boasts an incredibly thin profile, with a height of just 3.55mm. This slim design allows for efficient space utilization, making it perfect for applications with tight constraints.

      2.0.8mm Pitch:                                                                                                                                                                                            The 0.8mm pitch provides a fine pitch distance between contacts, enabling high-density connections while maintaining signal integrity. Ideal for designs requiring precision and reliability.

     3.SMT (Surface Mount Technology) Integration:                                                                                                                            The SMT type design ensures effortless integration onto your printed circuit board (PCB). Simplify your manufacturing process with easy and reliable surface mounting, saving time and resources.

    4.Secure and Stable Connections:                                                                                                                                                    Board to board Female pcb connector 524652062 is engineered for secure and stable connections, ensuring reliable signal transfer between PCBs. The robust design enhances the overall performance and longevity of your electronic assemblies.

    5.Versatile Applications:                                                                                                                                                                           From consumer electronics to compact devices, our Board to board Female pcb connector 524652062 caters to a wide range of applications. Its versatility makes it suitable for various industries, including telecommunications, medical devices, and more.

    6.Precision Engineering:                                                                                                                                                                         Precision is paramount in electronics design, and Board to board Female pcb connector 524652062  exemplifies it. The carefully engineered components guarantee precise alignment and connectivity for your critical applications.

    7.Space-Efficient Design:                                                                                                                                                                        The compact dimensions and slim profile of our socket contribute to a space-efficient design. This is particularly beneficial in designs where size and weight are crucial considerations.

     8.High-Quality Materials:                                                                                                                                                                   Crafted from high-quality materials, our board-to-board socket ensures durability and reliability. The materials used provide resistance to environmental factors, ensuring stable performance over the product’s lifecycle.

     9.Industry-Standard Compliance:                                                                                                                                                  Board to board Female pcb connector 524652062 adheres to industry standards, assuring compatibility and seamless integration into your electronic designs. Trust in a connector that meets the stringent requirements of the electronics industry.

     10.Effortless Assembly:                                                                                                                                                                          Designed for ease of assembly, Board to board Female pcb connector 524652062 simplifies the manufacturing process. This user-friendly connector enhances efficiency in your production line

Advantages：

• Space saving: Belonging to small pitch connectors with a row spacing of 1.45mm and a compact size, Board to board Female pcb connector 524652062 can effectively save circuit board space and is suitable for high-density assembly of electronic devices such as smartphones, tablets, etc.

• Stable and reliable connection: Adopting surface mount installation method, the connection is firm after welding, and has fixed welding tail characteristics, which can enhance welding firmness and reduce connection looseness caused by external forces such as vibration. Its contact point design is excellent, ensuring stable electrical connection and high reliability of signal transmission.

• Good electrical performance: With extremely low contact resistance and excellent insulation performance, it can ensure the integrity of signal transmission, reduce signal attenuation and interference, and is suitable for some circuit connections with high electrical performance requirements.

• Strong environmental adaptability: The working temperature range is -40 ° C to 105 ° C, and it can work normally under various harsh environmental conditions. At the same time, the flammability level of the insulation material reaches UL94 V-0, which has good fire resistance and can effectively prevent problems such as short circuit and leakage, ensuring the safe operation of the equipment.

 • Convenient and efficient installation: Surface mount method is suitable for automated welding equipment operation, which can improve production efficiency and reduce labor costs. And some of the connectors in this series may have polarization or keying features, which can prevent reverse or incorrect insertion during installation, further improving installation efficiency and accuracy.

With Mates with Part(s)

Upgrade your electronics design with precision and efficiency – choose our 0.8mm Board-to-Board Socket with SMT type and a 3.55mm height. Elevate your devices to new heights of connectivity and reliability. Order now to experience the perfect blend of compactness and performance in your electronic assemblies.
