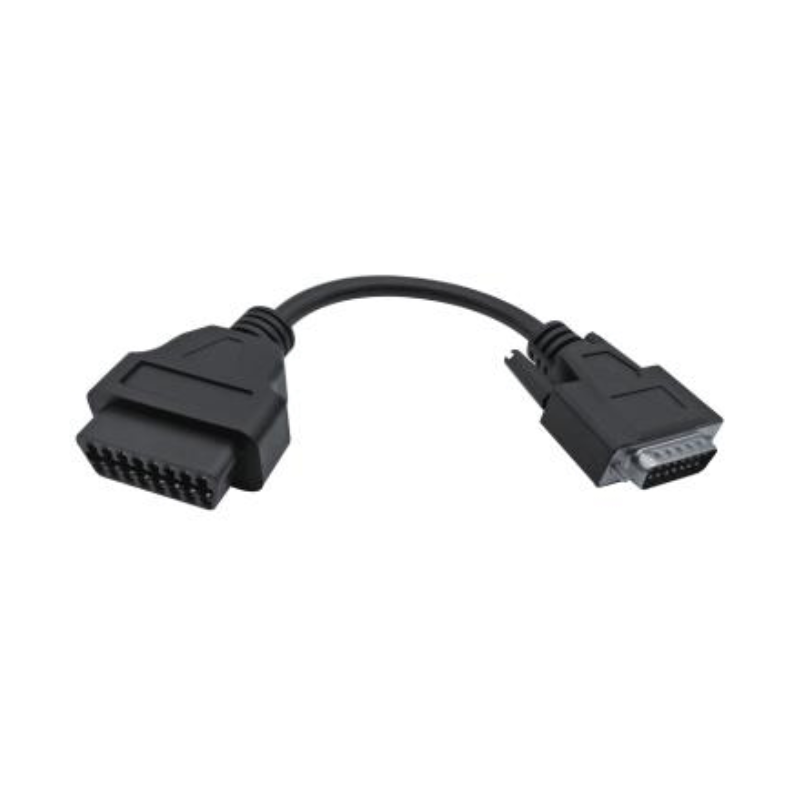

DB15 male OBD1 to OBD2 Adapter Cable is a DB15 to OBD automotive diagnostic adapter cable, which is an adapter accessory for automotive electronic equipment.

In terms of specifications and functions,DB15 male OBD1 to OBD2 Adapter Cable  is a diagnostic adapter cable with a DB15 male connector to an OBD 16-pin female connector. Common models include DB15PF-OBD16PM (compatible with diagnostic devices of brands like Autel) and HPT DB-15 OBD-2 Cable (compatible with MPVI series tuning tools), etc.

Its core function is to enable automotive diagnostic devices equipped with a DB15 interface (such as professional fault diagnostic instruments and tuning tools) to be compatible with OBD2-compliant vehicles, realizing functions like fault code reading, data stream analysis, and ECU tuning. DB15 male OBD1 to OBD2 Adapter Cable  is commonly used in scenarios such as automotive maintenance and performance tuning.

The functions of DB15 male OBD1 to OBD2 Adapter Cable ：

Professional automotive diagnostic equipment (such as ECU tuners, comprehensive fault diagnosis platforms) often adopts the DB15 interface as the signal output/input interface on the equipment side to meet requirements like compatibility with multiple vehicle models and high-stability transmission. However, the vast majority of vehicles use the 16-pin OBD2 standard interface.
At this point, the core role of the DB15 interface is: through a dedicated adapter cable (e.g., DB15 male to OBD 16-pin female), physically connect the DB15 interface of the diagnostic equipment to the vehicle’s OBD interface, and establish a stable electrical connection and data transmission channel according to preset pin definitions (corresponding to power supply, ground, communication protocol lines, etc.)—this is the prerequisite for all diagnostic operations.

2. Specific Diagnostic Function Implementation: Transmitting Commands and Data

After the channel is established, DB15 male OBD1 to OBD2 Adapter Cable interface enables “communication” between the diagnostic equipment and the vehicle’s ECU (Electronic Control Unit) through data lines corresponding to different pins. Its specific functions include:

• Fault diagnosis: Transmit commands such as “read fault codes” and “clear fault codes” sent by the diagnostic equipment, and then send back the fault information stored in the vehicle’s ECU (e.g., engine misfire, sensor failure) to the equipment, assisting maintenance personnel in locating problems.

• Data stream monitoring: Real-time transmission of dynamic data during vehicle operation, such as engine speed, water temperature, intake pressure, transmission gear, etc., facilitating maintenance personnel to observe vehicle working conditions and troubleshoot hidden faults.

• ECU programming and tuning: For modification or maintenance needs, transmit commands such as “rewrite ECU parameters” and “flash programs” (e.g., adjust fuel injection pulse width, ignition timing) to achieve vehicle performance tuning or ECU repair.

• Special function operation: Transmit customized commands to implement vehicle-specific functions such as key programming, service light reset, throttle adaptation, and anti-theft system unlocking. Such operations mostly rely on the high-stability transmission characteristics of the DB15 male OBD1 to OBD2 Adapter Cable interface.
