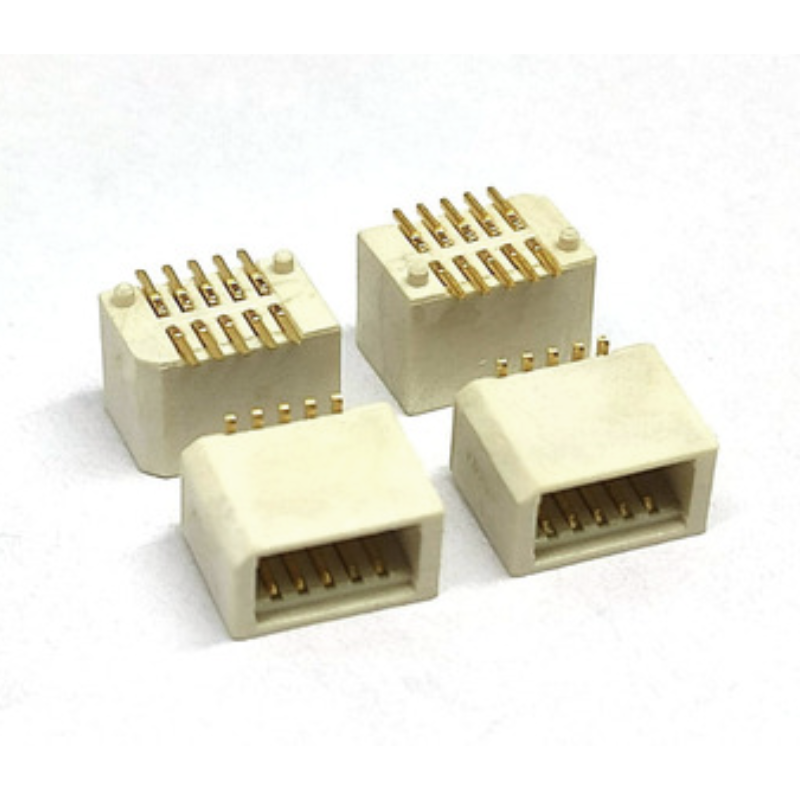

0.8mm board to board edge connector 533071071 smt type consist of two components: a socket on one PCB and a mating header or plug on the other PCB.

0.8mm board to board edge connector 533071071 smt type has many characteristics, which I will list below：

1.Small spacing and high density: Adopting a 0.8mm ultra-fine spacing design, 0.8mm board to board edge connector 533071071 smt type saves space and is suitable for high-density layout, effectively reducing the difficulty of PCB wiring and improving overall integration.

2.Multi pin stable transmission: With a 14 pin pin configuration, 0.8mm board to board edge connector 533071071 smt type supports multi-channel high-speed transmission and is suitable for parallel data processing or power+signal mixed transmission scenarios.

3.Excellent electrical performance: low contact resistance, with a maximum contact resistance of 40 milliohms, ensuring stable signal transmission, reducing signal attenuation and power loss.

4.Reliable mechanical performance: With a lifespan of up to hundreds of thousands of insertions and removals,0.8mm board to board edge connector 533071071 smt type has strong durability. The minimum pin holding force is 3.0N, ensuring the stability of the connection.

5.Strong environmental adaptability: It has a certain degree of temperature resistance and can maintain stable performance in environments ranging from -40 ± 3 ° C to 105 ± 2 ° C. It can also withstand harsh environments such as salt spray, sulfur dioxide, ammonia, etc.

6.Easy installation: The installation type is surface mount, suitable for the automation production needs of modern electronic manufacturing processes.

Here are some precautions to follow to better protect 0.8mm board to board edge connector 533071071 smt type and extend its lifespan：

 Mechanical operation specifications                                                                                                                                                                                             1. Avoid excessive plugging and unplugging
The insertion and removal life of 0.8mm board to board edge connector 533071071 smt type is limited (usually tens of thousands of times), so frequent insertion and removal is necessary. Each insertion and removal should be aligned with the pins to avoid tilting, misalignment, and hard insertion, and to prevent pin bending, deformation, or damage to the housing.

2. Control the insertion and extraction force
When inserting or unplugging, uniform force should be applied to avoid pulling the cable or connector body with brute force, to prevent pin detachment, contact wear, or solder cracking (especially for surface mount types).

3. Prevent external forces from pulling the cable
After connection, the cable should be fixed to avoid continuous tension and prevent internal breakage or poor contact at the connection between the connector and the cable.

Electrical performance protection
1. Match voltage and current parameters
Strictly follow the rated voltage and current specifications of the connector to avoid overloading that may cause internal contacts to overheat, oxidize, or even burn out.

2. Prevent static electricity damage
0.8mm board to board edge connector 533071071 smt type are commonly used in precision electronic devices (such as communication and medical equipment), and anti-static measures should be taken during operation (such as wearing anti-static wristbands and using anti-static workbenches) to avoid static electricity breakdown of internal precision components.

Environmental adaptability control
1. Avoid exposure to extreme environments
Although this series has a certain temperature resistance (-40 ° C to 105 ° C), it is still necessary to avoid long-term exposure to high and low temperature environments beyond the range, or direct contact with liquids, oil stains, and dust, to prevent contact oxidation and insulation performance degradation.

2. Protect against harsh environments
If used in outdoor or industrial settings, additional protective enclosures or sealing measures are required to prevent salt spray and corrosive gases (such as sulfur dioxide and ammonia) from directly corroding the connector, resulting in poor contact.

Storage and maintenance
1. Dry and clean storage environment
Unused 0.8mm board to board edge connector smt type should be stored in a dry, ventilated, and non corrosive gas environment to avoid contact oxidation and rust caused by moisture. They can be stored in sealed bags or anti-static packaging.

 2. Regular inspection and maintenance
After long-term use, it is necessary to regularly inspect the appearance of the connector (for deformation, oxidation, and stains). If oxidation (such as blackening or rusting) is found on the contacts, a special cleaning agent can be used to gently wipe them (to avoid scratching with hard objects), and the connector should be replaced if necessary.

Application scenario adaptation
1.Avoid using in environments with severe vibrations and impacts (such as industrial equipment that has not undergone shock absorption treatment), and if necessary, add fixed brackets to prevent connectors from loosening.

2.If used for high-frequency signal transmission, attention should be paid to the connection of cable shielding layers to avoid signal interference, and to stay away from strong electromagnetic sources (such as motors and transformers).
